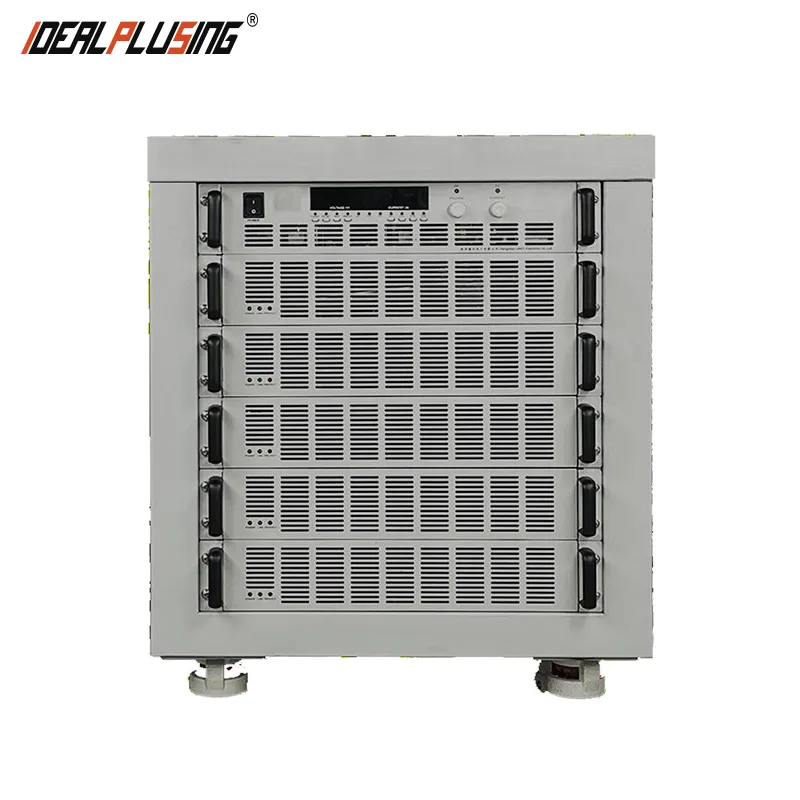

IPS-ATDL12KV-833mA Adjustable Digital Switching display current Voltage 833mA 6000V 12000V ac to dc 5000W 10000W switching power supply
Model: IPS-ATDL12KV-833mA 12KV 833mA 10KW Programmable dc power supply ① AC Input : Single phase 380VAC 50/60hz ② DC Output voltage: 480V-8KV ③ DC Output current: 0~833mA ④ Max power: 10KW ⑤ Material of shell : Aluminum ⑥ Size: L732*W600*H755(MM) ⑦ Design: standard 19inch rack mount ⑧ Communication port: RS485*1 & RS232*1

I. INTRODUCTION

 IPS-ATDL The series is a high power DC power supply with a continuously adjustable output rating of 5KW/10KW/15KW/20KW/30KW/50KW. With a maximum voltage rating of up to 12KV, this series of power supplies offers excellent performance in its class. In addition, the power supply offers local operation with the addition of remote control and detection functions, greatly enhancing the flexibility and versatility of the power supply. These power supplies can be used in a wide range of electronic component ageing systems, test equipment and electronic application laboratories.

II. KEY SPECIAL FEATURES AND BENEFITS ARE AS FOLLOWS

1

19" 12U standard cabinet or 19" 20U standard cabinet available

2

Constant voltage and constant current function

3

Low ripple and high stability

4

Continuously adjustable output voltage and current

5

ZVZCS switching mode for high conversion efficiency

6

Over-voltage, over-heat and under-voltage protection for mains input

7

RS232 and RS485 communication interfaces

8

MODBUS-RTU standard communication protocol

9

Monitorable via PC software

10

Software calibratable parameters

11

Dual local and programmable operation modes

12

Output rated power 5KW/10KW/15KW/20KW/30KW/50KW

13

Rated voltage 1KV~12KV, rated current 500mA~50A Various models available

III. DATASHEET

Model

IPS-ATDL12KV-833mA

Input

3 phases 380VAC±10%  47Hz~63Hz

Dimension

L732*W600*H755(MM)  (Standard 19inch rack mount)

Rating

Output voltage

480V-12KV

Output current

0~833mA

Over-voltage protection

0~12600V

Programmed solutions Degree of analysis

Over-voltage

1V

Voltage

1V

Current

1mA

Display resolution

Voltage

1V

Current

1mA

Accuracy of displayed values

Voltage

≤0.3%+2LSB

Current

≤0.5%+2LSB

Load regulation rate

Voltage

≤0.5%+2LSB

Power regulation rate

Voltage

≤0.1%+2LSB

Ripple

Voltage

≤0.1% FS
