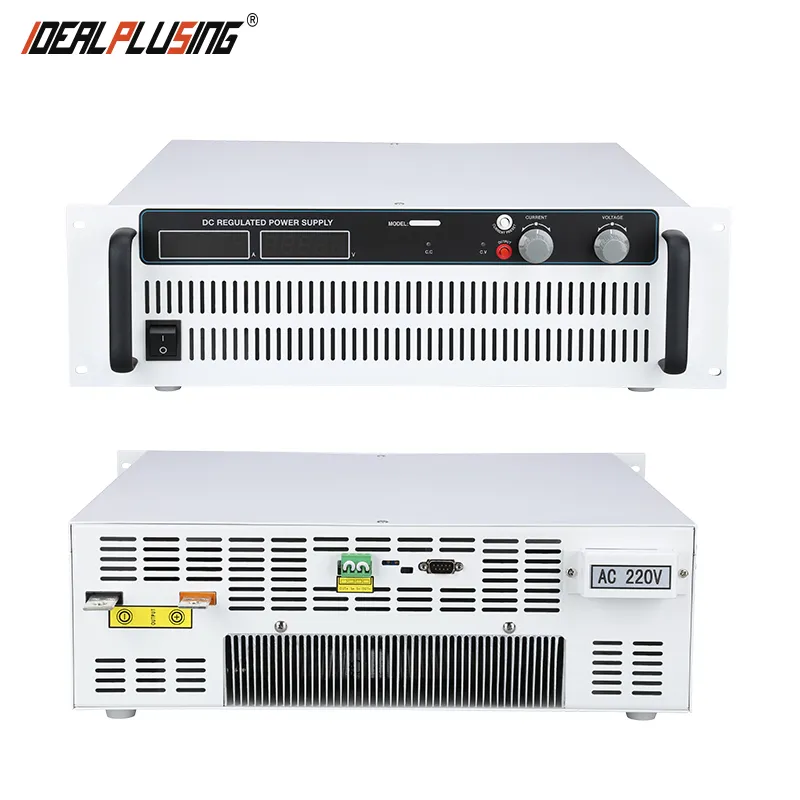

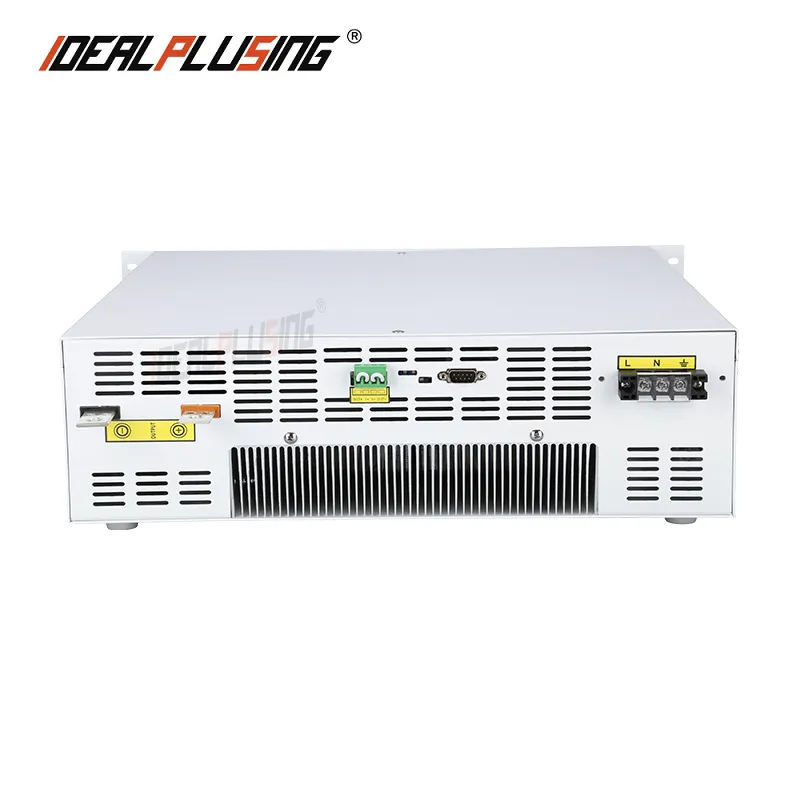

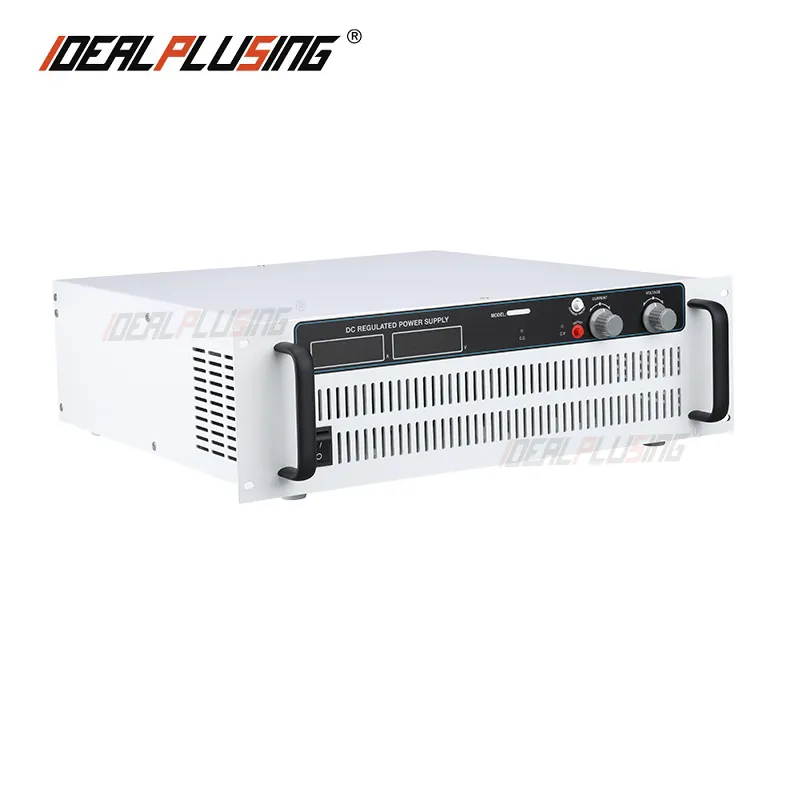

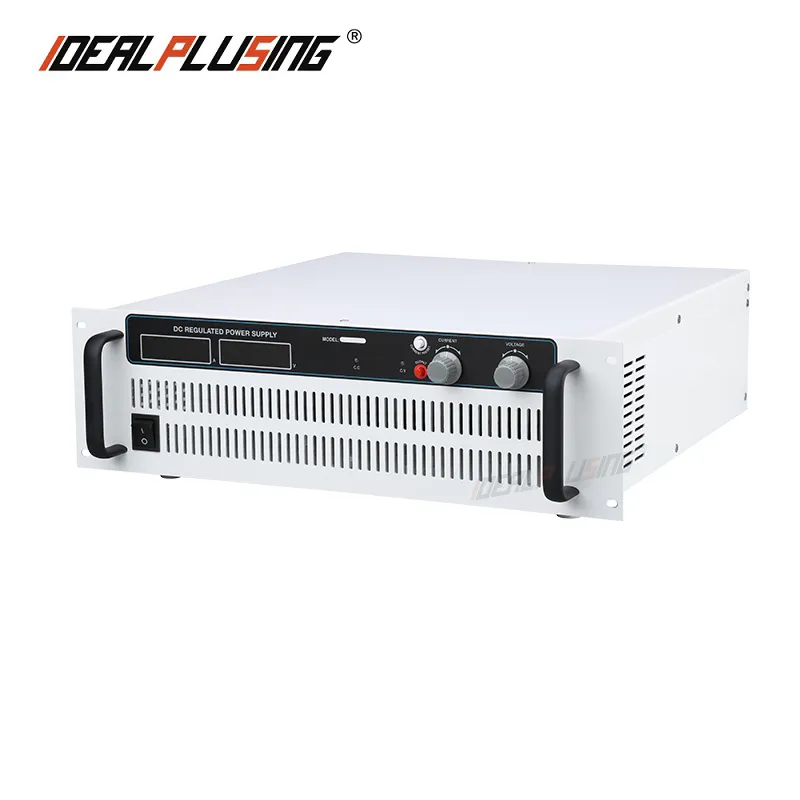

IPS-ATDK15480 IDEALPLUSING AC to DC Converter Mode Power Supply smps 7200W 0-15V 0-480A 18A 60A 144A 225A Adjustable Variable DC Power Supply
Model:IPS-ATDK15480 15VDC 480A 7200W Variable DC Power Supply Specification : ① AC INPUT: Single phase 220VAC±10% 50/60HZ ② DC OUTPUT: 0~15VDC, 0~480A ③ Max power: 7200W ④ Machine Size: 483*465*132H(MM) ⑤ Package size: 550L*550W*170H(MM) ⑥ NW: 20KG, GW: 29KG ⑦ Protection: lower voltage, over voltage, over current, short circuit, over-heating ⑧ 0-5V/0-10V analog signals ⑨ External voltage compensation port ⑩ RS485 serial port * 1(optional) We specialize in customizing DC power supply to meet your specific requirements. With customized input and output voltage and current, our offerings range from 0V to 2000KV DC and 0A to 2000A. We provide AC-DC solutions for the motor category or electrical appliances testing or Lab testing, electrochemistry, electrolysis, electroplating, and anodizing. Please visit our website and submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour. Thank you for considering our services.

I. APPLICATION SCOPE

1

Motor: electric car motor, electric car controller, DC motor testing and aging debugging, etc.

2

Electric appliances: LED/LCD testing and aging, energy-saving bulb testing and aging, lamp testing, tungsten gasification, etc.

3

Automotive: starter motor, auto air conditioner, auto motor controller, auto light, cigarette lighter, auto AV testing and aging, etc.

4

Electronic devices: capacitors, resistors, relays, transistors, sensors, etc.

5

Display: display screen, liquid screen, touch screen, car DVD, cell phone display, etc.

6

Electrochemistry: electrolysis, electroplating, anodic oxidation, non-ferrous metals, sewage treatment, etc.

7

Aircraft start-up maintenance, power supply for military equipment, etc.

8

Physical exploration: power supply of mineral and petroleum equipment, etc.

9

Power supply: inverter products aging, inverter maintenance testing, etc.

10

Power tools: contact aging, wire pack testing, circuit breaker release test, etc.

11

Others

II. PRODUCT FEATURES

1

Small size and light weight suitable for workbench use and rack mounting.

2

Adopting PWM modulation, low power consumption of crystal module, high efficiency, more power saving.

3

Well-designed electronic technology circuit, forced air-cooled heat dissipation treatment, with a very low-temperature coefficient.

4

Low noise, low ripple.

5

Adopt high gain amplifier circuit design, with good fast response characteristics.

6

Adopt a 4-digit high sampling rate, high-resolution voltage, and current digital display meter.

7

Built-in O.V.P. over-voltage protection circuit and O.T.P. over-temperature protection circuit, the protection function is perfect and reliable.

8

The product is designed with a load terminal voltage detection terminal, with the ability to accurately read the load terminal voltage and accurate control function.

III. PERFORMANCE FEATURES

1

Display: Output Voltage And Current Led Display.

2

Appearance: Using a Desktop, Cabinet, Or 19-Inch Standardized Size, Can Be Combined And Placed In a Variety Of Workbenches And Racks.

3

Advantages: High-Frequency Pwm Hardware-Adjusted Soft-Switching Control Technology Makes The Power Supply High Efficiency, Low Ripple, Low Noise, And High Reliability, Small Size, And Light Weight.

4

Constant Voltage And Constant Current: Output Cc, Cv Constant Voltage And Constant Current Automatic Switching, Voltage, And Power Flow Value From Zero To The Rated Value Of Continuous Adjustment

4

Protection Functions: Over-Voltage Protection (Ovp, Over-Current Protection (Ocp, Over-Temperature Protection (Otp.))



External Compensation: Optional External Compensation (Remote Sensing, Reducing The Circuit Cable Voltage Drop.

5

Current Presetting Function: The User Can Preset Any Voltage Actually Needed By The Load Without Connecting The Load, And When The Product Actually Has Current Output, The Actual Maximum Output Current Can Reach The Pre-Set Value (Optional).

6

Voltage Presetting Function: The User Can Preset Any Voltage Actually Needed By The Load Without Connecting The Load, And When The Product Actually Has a Voltage Output, The Actual Maximum Output Current Can Reach The Pre-Set Value (Optional).

7

Computer Program Control Function: Optional Rs485/Rs232 And Other Data Interfaces, Standard Modbus Communication Protocol, Can Be Configured With Computer/Upper Computer Software Control Monitoring. Can Be Multiple Network Control, Or Master-Slave Parallel Control. (Optional)

8

Positive And Negative Commutation Function: Can Provide Output Positive And Negative Commutation Function (Bipolar), Commutation Mode: Manual, Timing, Calculator Program Control, Etc. (Optional)

IV. ABOUT THE PACKAGING.
 The use of professional instrument wooden box packaging can reliably protect the power supply. Tight packaging, reduces the logistics process of cargo damage, and cargo difference, to ensure the safety of the goods.

V. TECHNICAL PARAMETRIC

Brand

IDEALPLUSING

Model

IPS-ATDK15480

AC Input

Single phase 110VAC±15% 50/60hz (Customized-Contact sales for quote)

Single phase 220VAC±15% 50/60hz  (Less than 9000W)

Three phase 380VAC±15% 50/60hz  (More than 9000W)

Input frequency

50Hz/60Hz

Output voltage

0~15VDC

Output current

0-480A

Output Power

7200W

Voltage Stabilization

≤0.3%+10mV

Load Stabilization

≤0.5%+30mV

Ripples and Noises

≤0.5%+10mVrms

Voltage Display Accuracy

4-digit Accuracy: ±1%+1 word (10%-100% rating)

Display Format

0.000V-9.999V;  0.00V-99.99V;  0.0V-999.9V

Current Display Accuracy

4-digit Accuracy: ±1%+1 word (10%-100% rating)

Remote Adjustment

(Analog control: Voltage adjustable ):0-5VDC;(Current adjustable):0-5VDC

Remote Display

(Analog control: Voltage adjustable ): 0-5VDC;(Current adjustable):0-5VDC

Output Over Voltage Protection

Built-in O.V.P. protection, protection limited value is rated +5%

Output Over Load Protection

Overload, current limit, constant current output

Over Temperature Protection

Built-in O.T.P. protection, Protection value 85℃±5%  heat sink temperature

Voltage Setting

10-turn precision potentiometer

Current Setting

10-turn precision potentiometer

Output Polarity

Output Positive(+) negative(- ) Can be grounded at will

Heat Dissipation Way

Forced fan cooling

Work Conditions

Indoor use design,Temperature:0℃~40℃;Humidity:10%~85%RH

Storage Conditions

Temperature:-20℃~70℃;Humidity:10%~90%RH

Machine Dimension

L483*W465*H132(MM)

Package Dimension

L550*W550*H170(MM)

Net/Gross Weight

20KG/29KG
