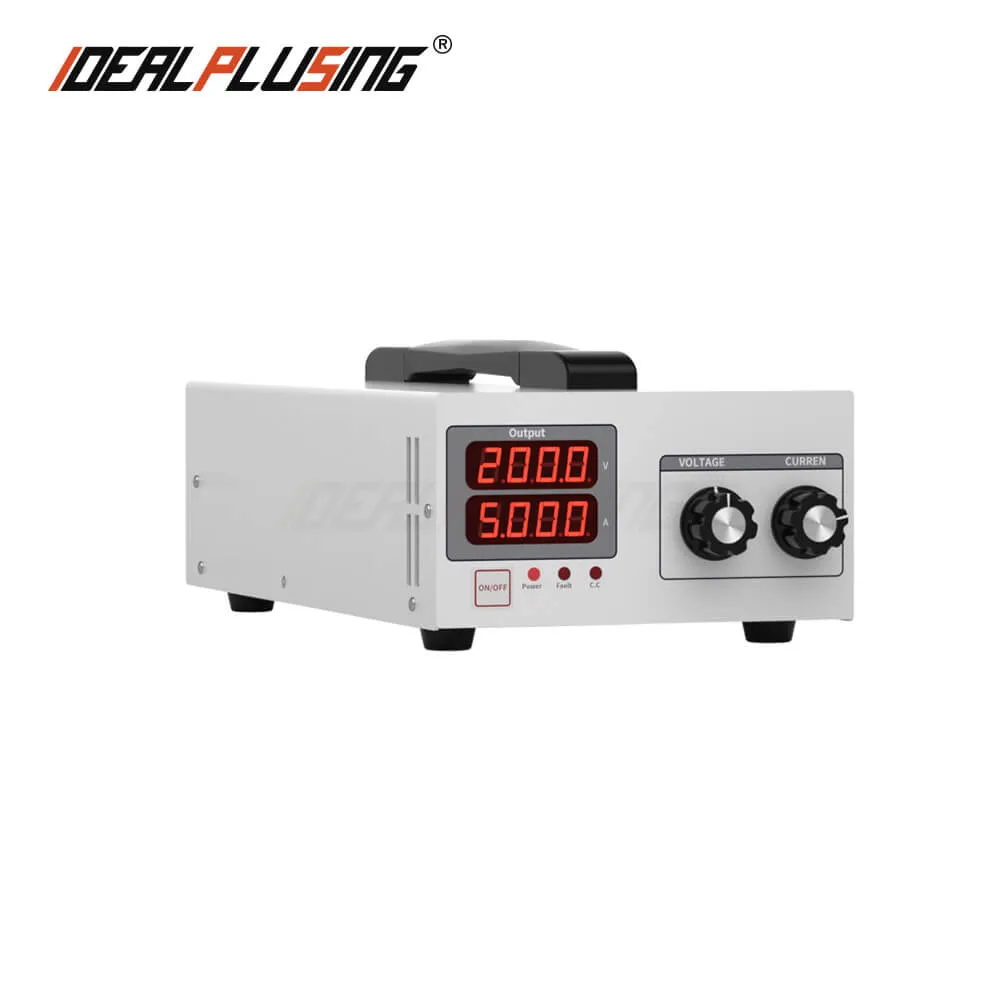

IPS-ATD5615-3A 4A 5A 6A 7A 8A 8.4A 10A 12A 14A 15A China Factory Variable Adjustable AC DC Switching Laboratory Power Supply DC
IPS-ATD5615 15a dc power supply ① AC INPUT: Single phase 220VAC±15% 50/60HZ ② DC OUTPUT:0.56-56VDC,0.15~15A ③ Max Power: 840W ④ Machine size : 330(L)*165(W)*88(H)MM ⑤ Package size: 420(L)*250(W)*165H)MM ⑥ NW: 3.5KG, GW: 5KG We specialize in customizing DC power supply to meet your specific requirements. With customized input and output voltage and current, our offerings range from 0V to 2000KV DC and 0A to 2000A. We provide AC-DC solutions for the motor category or electrical appliances testing or Lab testing, electrochemistry, electrolysis, electroplating, and anodizing. Please visit our website and submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour. Thank you for considering our services.

Brand

IDEALPLUSING

Model

IPS-ATD5615

Input Voltage

1 Phase 220VAC±15%50Hz/60Hz

Output Voltage/Current

0.56~56VDCStabilizer value. 1% to 100% adjustable

0.15~15AConstant current value. 1% to 100% adjustable

Output Power

840W

Source Voltage Regulation Rate

≤0.5

Load Regulation

Stabilizer Voltage ≤1%; Constant Current≤2

Voltage Display Accuracy

+ 1.2%

Current Display Accuracy

+ 1.5%

Display form

0.000 to 9999

Output Voltage Overshoot

≤2% of maximum output

Operation Temperature

(-2045)℃

Over-Temperature Protection

75~85 Degree

Heat Dissipation Mode/ Cooling mode

Fan heat dissipation

Ripple Voltage

Vpp≤2%

Efficiency

≥86

Start-up Output voltage setting time

≤3S

Protection

lower voltage, over voltage, over current, short circuit, overheating Protection

Insulation Strength

Input output: AC1500V, 10mA, 1 minutes;

Input - machine shell: AC1500V, 10mA, 1 minutes;

Output - shell: AC1500V, 10mA, 1 minutes

Insulation Resistance

Input-Output ≥20MΩ

Input-Output ≥20MΩ

Input-Output ≥20MΩ

MTTF

≥50000h

CUSTOMIZE FUNCTION

Remote Control Function (Option)

0-5Vdc /0-10Vdc analog signal control output voltage & current

0-5Vdc /0-10Vdc analog signal to read-back output voltage & current

0-5Vdc /0-10Vdc analog Switch signal to control output ON/OFF

4-20mA analog signal control output voltage & current

RS232/RS485 Communication port control by computer

Machine/Package Dimension

L165*W330*H88(MM)/L420*W260*H170(MM)

Net Weight/Gross Weight

3.5KG/5.5KG

Adjustable Voltage / Current Mode

Knob type & Keystroke type for option

Color

Grey
