Brand | IDEALPLUSING |
Battery Type | Lithium battery/LiFePO4/Lead Acid |
Model | IPS-BCW36-6 |
Input voltage | Single phase 110~220VAC 50/60hz |
Output voltage | 36VDC |
CV-Lithium-4.2V | 42V 43.8V 44.1V |
Output Current | 6A |
Power | 216W |
Input frequency | 50Hz±2% |
Net Weight/Gross Weight | Base on model; |
Size | Base on model; |
Application | 96% |
Product features | Maximum efficiency>93% |
100% full load aging test | |
Power factor > 0.98 (APFC function) | |
Seismic grade of automobile grade | |
Strong protection function | |
Operating temperature range of wide temperature class | |
Intelligent temperature compensation for battery | |
Maximum efficiency>93% | |
Protection characteristics | Output over-voltage protection |
Output short circuit protection | |
Over temperature protection of charger | |
Output over current protection | |
Output reverse current protection | |
Output reverse current protection | |
Protection | -40℃~+60℃ |
Storage temperature | -40℃~+90℃ |
Relative humidity | 5%~95% |
Heat dissipation mode | Forced air cooling |
Waterproof grade | IP65 |
Customized | Support |
Product Categories

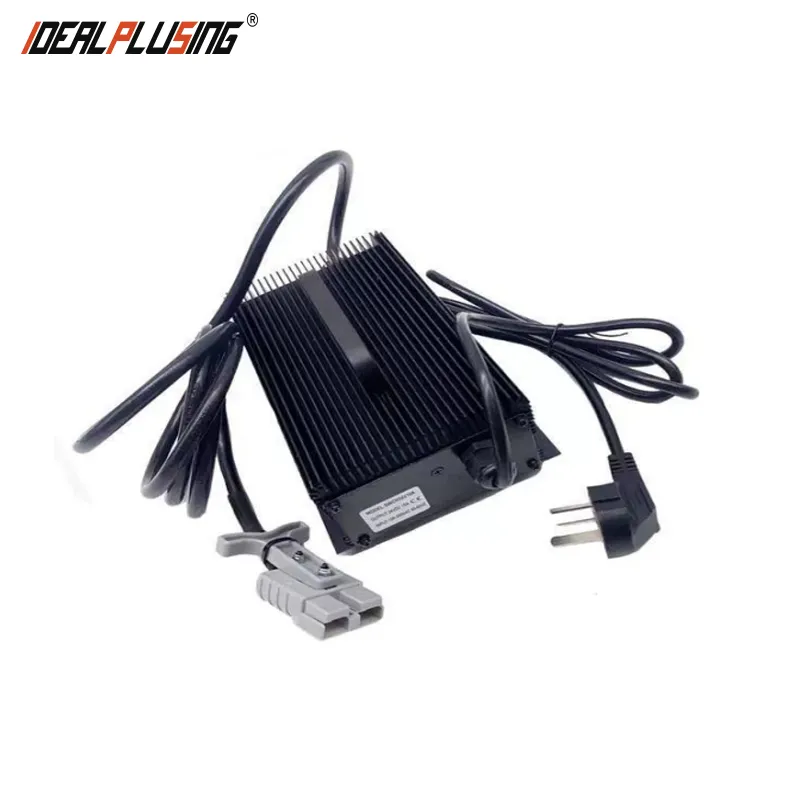

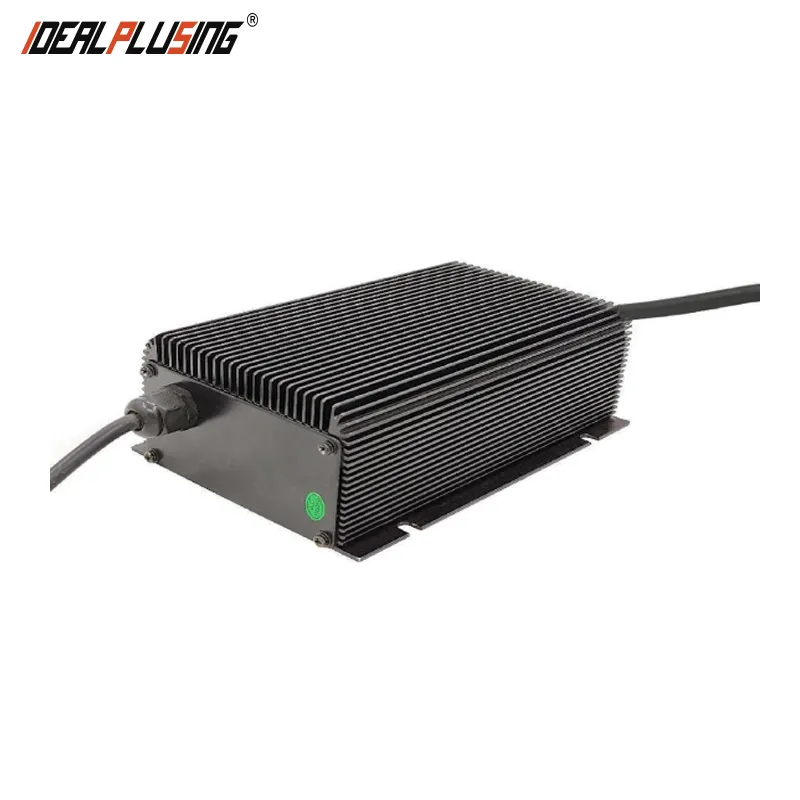

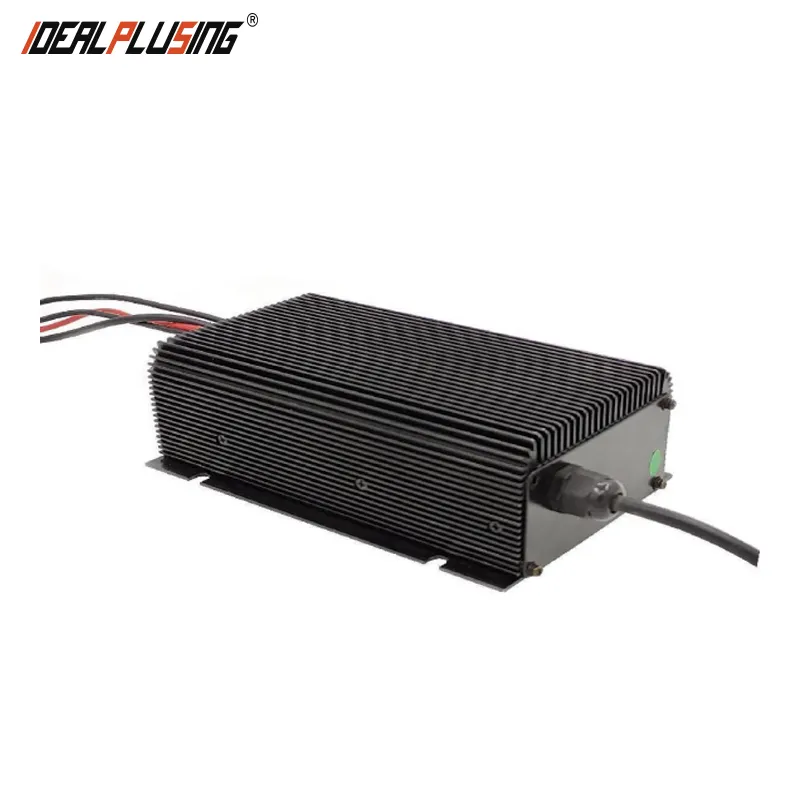

IPS-BCW36-6 6a 216w 110/220vac to 36v 42v 43.8v 44.1v dc waterproof car battery charger for motorcycle
Model :IPS-BCW36-6 36VDC 6A Battery Charger
① AC Input: Single phase 200-240VAC 50/60hz or Single phase 100-132VAC
② DC Output voltage: 36VDC
③ Charging current:6A
④ Full electronic voltage:42V 43.8V 44.1V
⑤ Machine Size:180*114.5*65MM)
⑥ NW: /, GW: /
⑦ AC plug: UK Plug or customized
⑧ DC connector: Standard Battery Jack
⑨ Apply for: Battery type: Lead Acid or Lithium or LiFePO4
