Brand | IDEALPLUSING |
Battery Type | Lithium battery/LiFePO4/Lead Acid |
Model | IPS-BCW72-5 |
Input voltage | Single phase 110~220VAC 50/60hz |
Output voltage | 72VDC |
CV-Lithium-4.2V | 84V or 87.6V or 88.2V |
Output Current | 5A |
Power | 360W |
Input frequency | 50Hz±2% |
Net Weight/Gross Weight | Base on model; |
Size | Base on model; |
Application | 96% |
Product features | Maximum efficiency>93% |
100% full load aging test | |
Power factor > 0.98 (APFC function) | |
Seismic grade of automobile grade | |
Strong protection function | |
Operating temperature range of wide temperature class | |
Intelligent temperature compensation for battery | |
Maximum efficiency>93% | |
Protection characteristics | Output over-voltage protection |
Output short circuit protection | |
Over temperature protection of charger | |
Output over current protection | |
Output reverse current protection | |
Output reverse current protection | |
Protection | -40℃~+60℃ |
Storage temperature | -40℃~+90℃ |
Relative humidity | 5%~95% |
Heat dissipation mode | Forced air cooling |
Waterproof grade | IP65 |
Customized | Support |
Product Categories

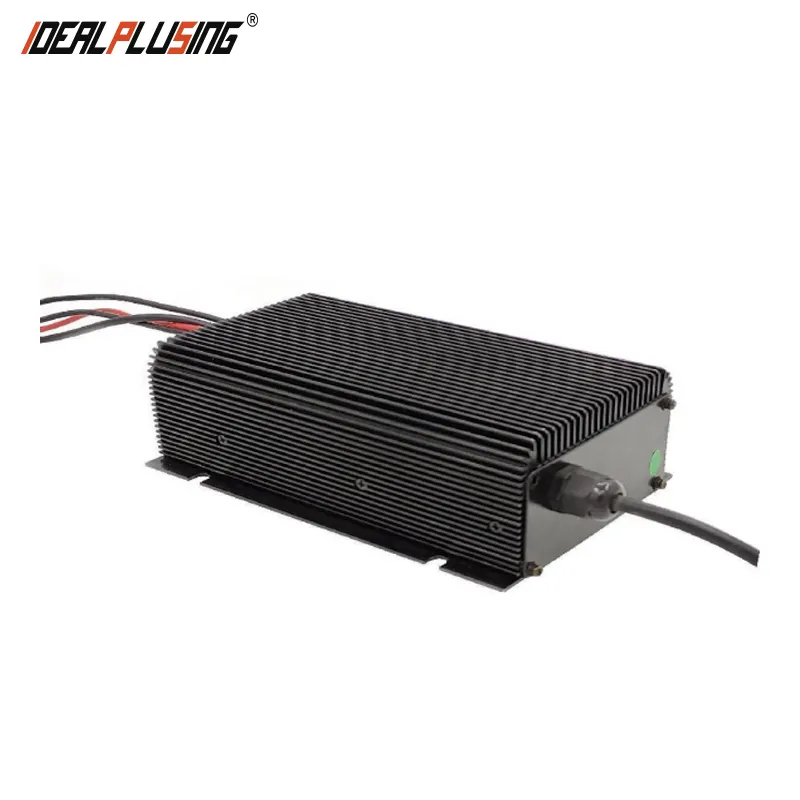

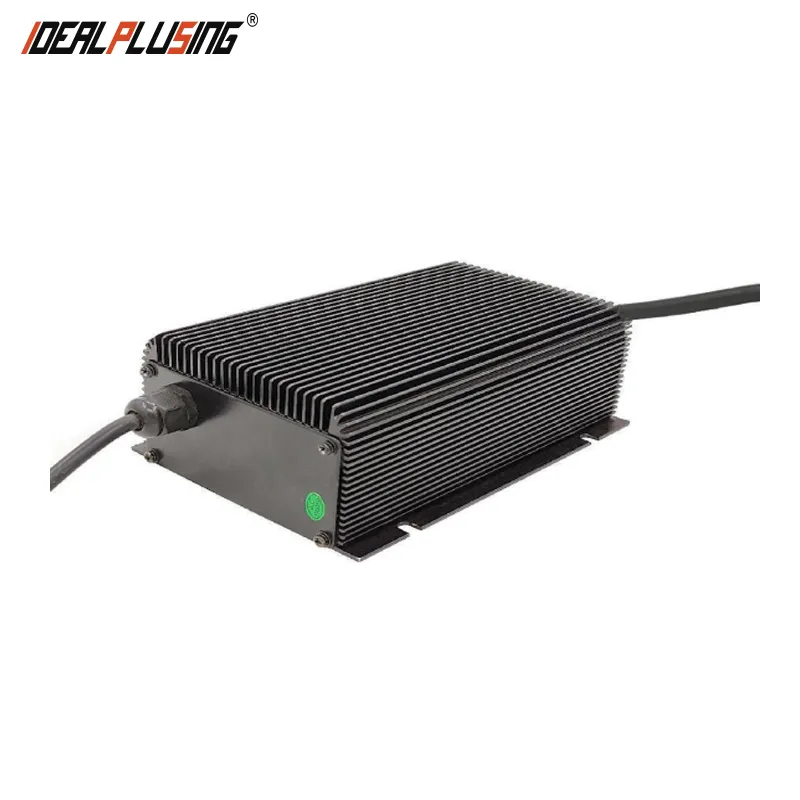

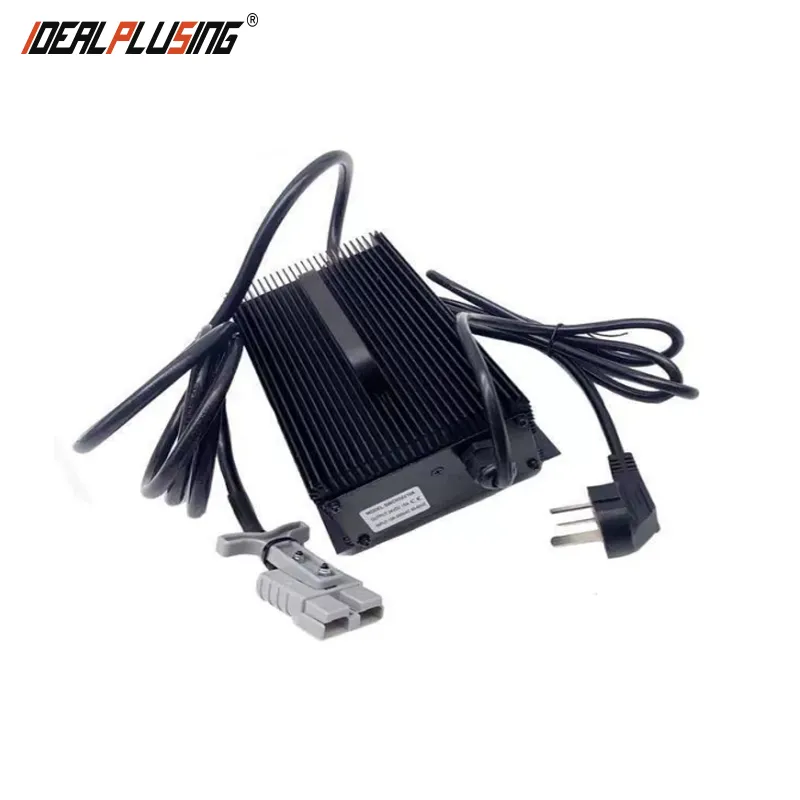

IPS-BCW72-5 72 volt auto battery charger 84v 87.6v 88.2v 5a 360w lifepo4 battery charger for Electric Scooter
Model :IPS-BCW72-5 72VDC 5A Battery Charger
① AC Input: Single phase 200-240VAC 50/60hz or Single phase 100-132VAC
② DC Output voltage: 72VDC
③ Charging current:5A
④ Full electronic voltage:84V or 87.6V or 88.2V
⑤ Machine Size:182*105*65MM)
⑥ NW: /, GW: /
⑦ AC plug: UK Plug or customized
⑧ DC connector: Standard Battery Jack
⑨ Apply for: Battery type: Lead Acid or Lithium or LiFePO4
