Brand | IDEALPLUSING |
Type | Non-Isolate |
Model | IPS-ATD24S245 |
INPUT | |
Rate Volts | 24VDC |
Volts range | 22~28VAC or 31~39VDC |
OUTPUT | |
Efficiency | 92% |
Output volts | 24VDC |
Output current | 5A |
Rated Power | 120W |
OTHERS | |
Voltage regulation | < 1% |
Load regulation | < 2% |
Ripple | < 50mV |
No-load current | < 20mA |
Working Temp | -40°c ~ +80°c |
Waterproof rating | IP65 |
Machine size | / |
NW | / |
Cooling way | Free air convection |
Certifications | CE, RoHS |
Customize | Support |
Sample order | Support |
OEM & ODM | Support |
Package | White & colorful package optional |
SALE CONTACT INFORMATION | |
ATTN | IDEALPLUSING |
Wechat ID | IPS-TECHNOLOGY |
Wechat Number | +86-18928830209 |
Whatsapp ID | +86-18928830209 |
Skype ID | +86-18928830209 |
info@idealplusing.com | |
Office Tel | +86-20-89282095 |
Product Categories

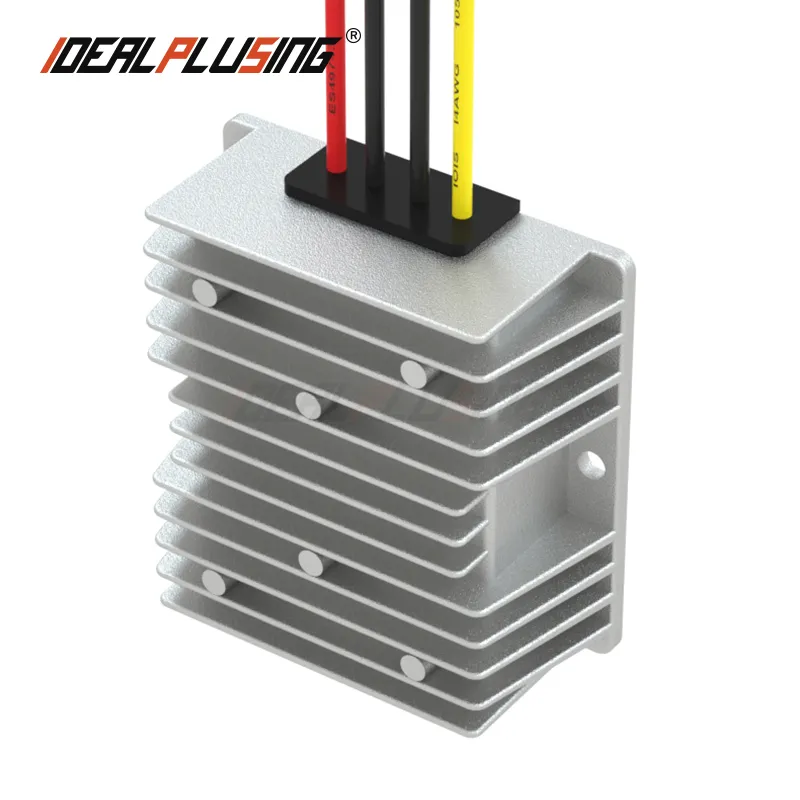

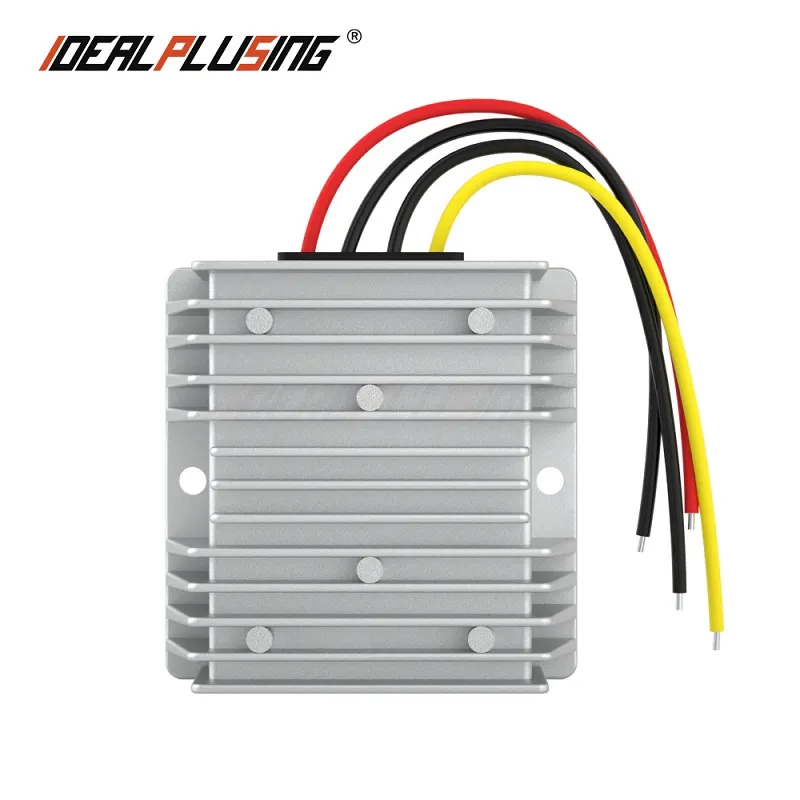

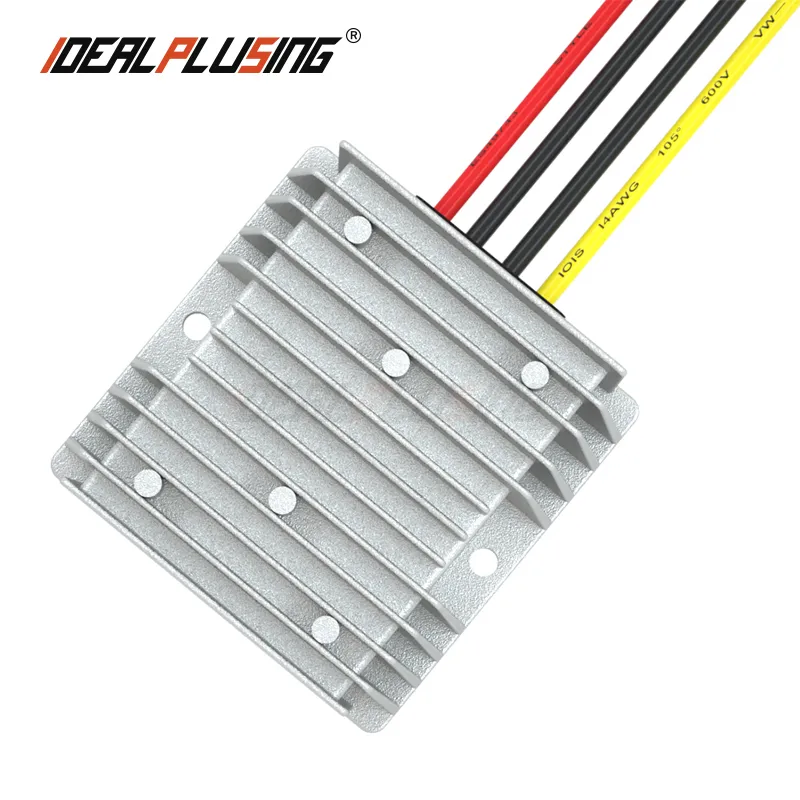

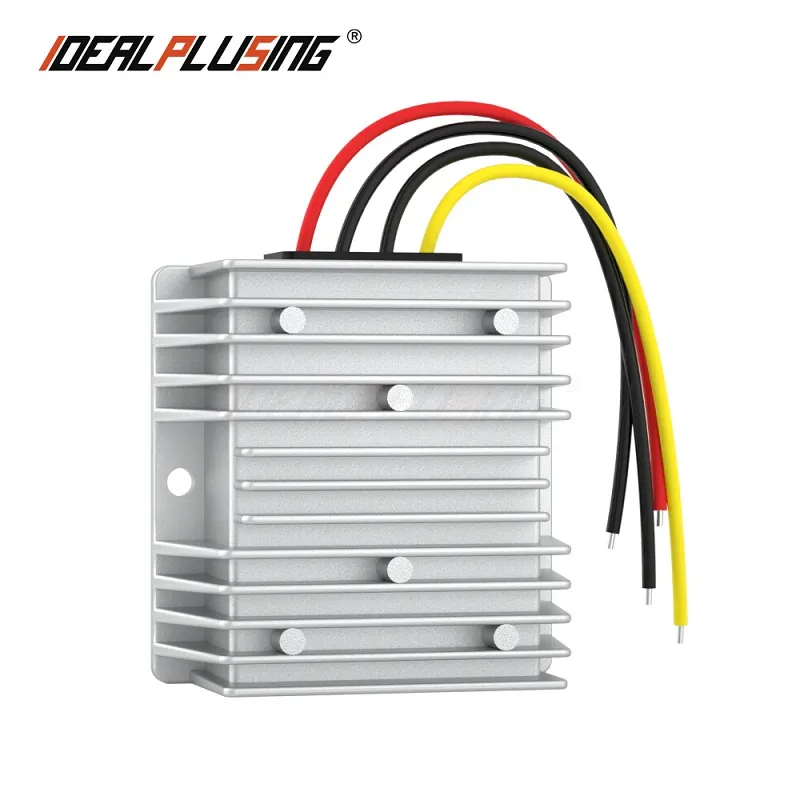

IPS-ATD24S245 24V TO 24 5A Ac To Dc Converter
① Input: 24VDC(22~28VAC or 31~39VDC)
② Output: 24VDC 5A
③ Max power:120W
④ Size:74*74*32(MM)
⑤ NW: /,GW: /
⑥ Design: Non isolate
⑦ Waterproof: IP65
Greetings, esteemed clientele. We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 1000V and 1A to 1000A. We provide both isolated and non-isolated converter design options. Please visit our website and submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour. Thank you for considering our services.
