IPS-DTD72S1220-36V 48V 60V 72V to 12V 15A 20A 180W 240W DC DC Step Down Converter Regulator 30-90 Volt to 12 Volt Switching Power Supply
36V 48V 60V 72V to 12V 15A 20A 180W 240W DC DC Step Down Converter Regulator 30-90 Volt to 12 Volt Switching Power Supply

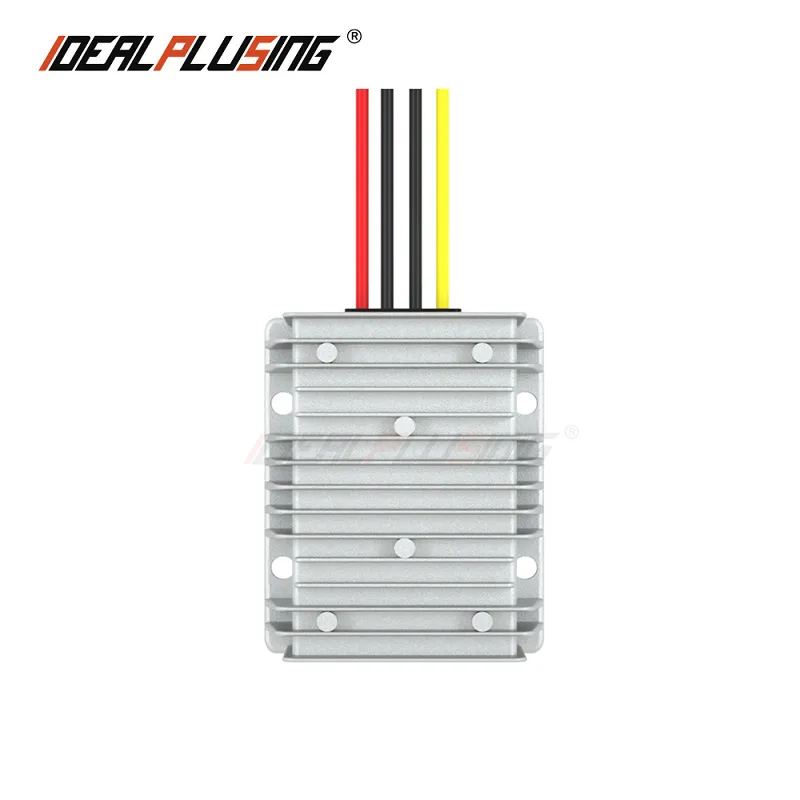

Model : IPS-DTD72S1215 72V TO 12V 15A DC DC CONVERTER
Specification :
① Input: 72VDC（30~90VDC）
② Output: 12VDC 15A
③ Max power: 180W
④ Material of shell: Aluminum
⑤ Size: 100*80*39 MM
⑥ Input & Output cable: 13~15CM
⑦ NW: 480G,GW: 680G
⑧ Design: Non isolate and waterproof IP65
⑨ Email :power@idealplusing.com
Greetings, esteemed clientele. We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 1000V and 1A to 1000A. We provide both isolated and non-isolated converter design options. Please visit our website and submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour. Thank you for considering our services.
Brand | IDEALPLUSING | |
Name | DC DC Step Down Converter Regulator 30-90 Volt to 12 Volt Switching Power Supply | |
Type | Non-Isolate | |
Model (IPS-***) | IPS-DTD72S1215 | IPS-DTD72S1220 |
INPUT | ||
Rate Volts | 72VDC | |
Volts range | 30~90VDC | |
OUTPUT | ||
Efficiency | 92% | |
Output volts | 12VDC | |
Output current | 15A | 20A |
Rated Power | 180W | 240W |
OTHERS | ||
Voltage regulation | < 1% | |
Load regulation | < 2% | |
Ripple | < 50mV | |
No-load current | < 20mA | |
Working Temp | -40°c ~ +80°c | |
Waterproof rating | IP65 | |
Machine size | 100*80*39(MM) | |
NW | 480G | |
Cooling way | Free air convection | |
Certifications | CE, RoHS | |
Customize | Support | |
Sample order | Support | |
OEM & ODM | Support | |
Package | White & colorful package optional | |
