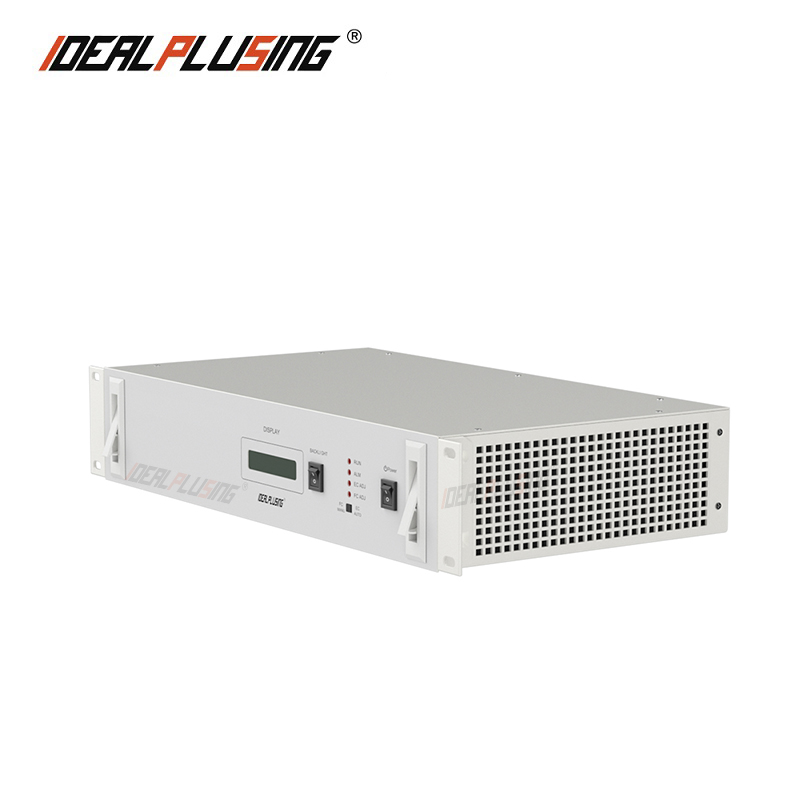

Technical Data | IPS-DTD11S2450 | Test Conditions | |
Input Voltage Range | 90~140VDC | ||
INPUT Current （A） | 12.8A | ||
Module Power Surge (A) | DC≤2A | Output Full Load | |
Output Float Voltage (V) | 24VDC | Factory Settings | |
Output Current （A） | 50A | Output Limit 101％～105％ | |
Load Regulation | ≤±0.5％ | Output without load to full load | |
Power Regulation | ≤±0.2％ | ||
Dynamic Response | 100usMax | 20％～100％ Load | |
Phone Scale Noise Voltage（mV） | ≤2 | Noise meter | |
Peak - peak Noise Voltage (mV) | ≤100 | 0~20MHz | |
Efficiency | ≥83％ | ||
Current Deviation | ≤±5％ | ||
Temperature Coefficient (℃) | 0.02％ | ||
Over-temperature protection (℃) | 95±5 | Radiator will close when temperature is over 95℃, can recover. | |
Working Temperature (℃) | -5~45 | ||
Storage Temperature (℃) | -10~85 | ||
Working Humidity | 5％~95％ | Non-condensing | |
Insulation Strength | Leakage Current <30mA | 500Vdc/1min | |
Insulation Resistance (MΩ) | ≥20 | DC 1KV | |
MTBF (hrs.) | 100000 | ||
Net Weight (Kg) | 7.5 | ||
Gross Weight (Kg) | 9.5 | ||
Dimension | Rack-mounted (mm) (L * H * D) | 482*88*325 | |
Dimension | Package | 630*180*390mm | |
