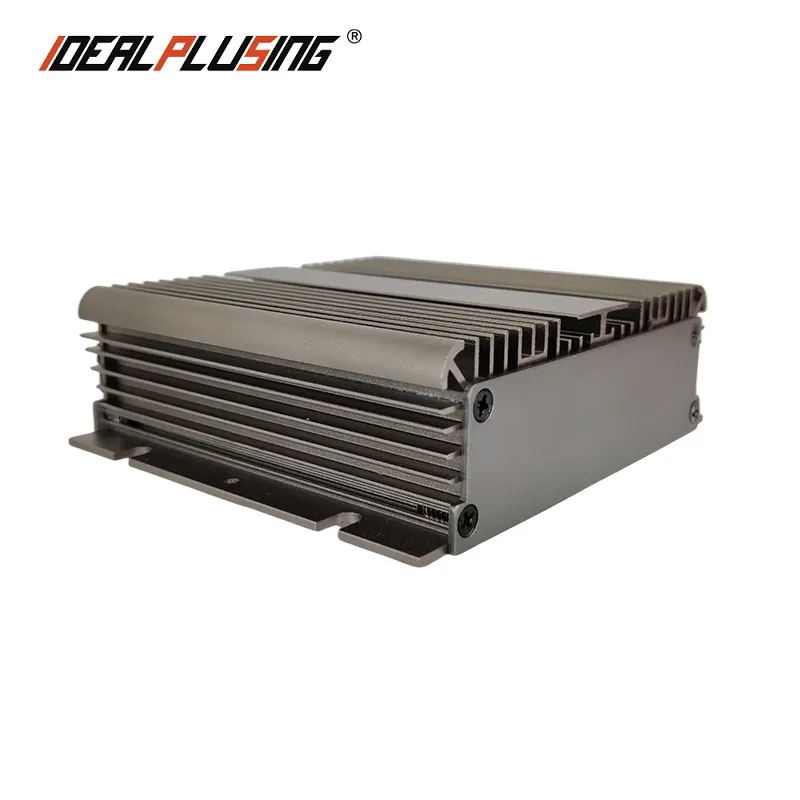

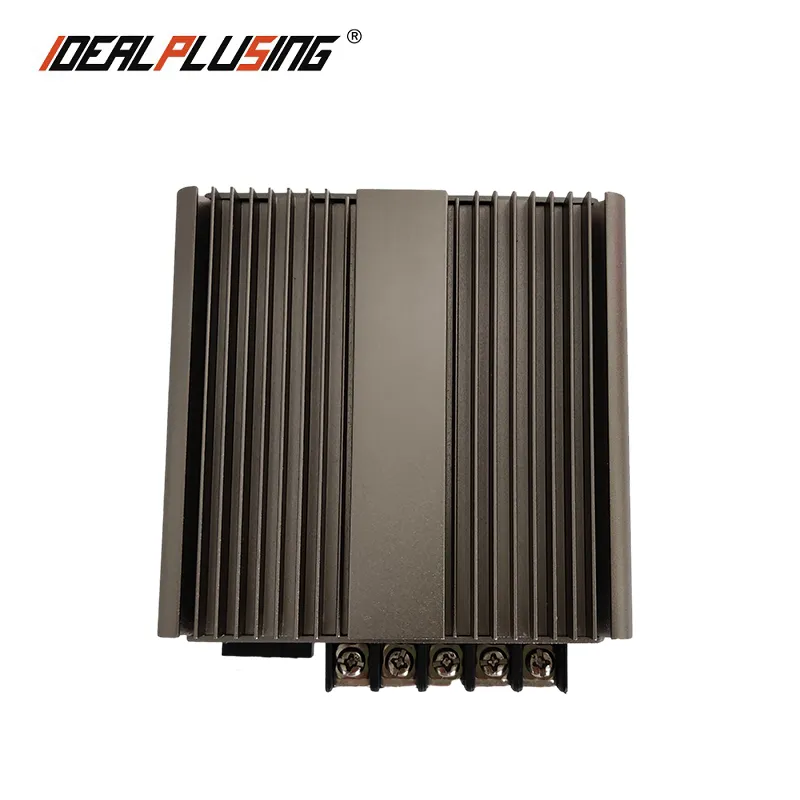

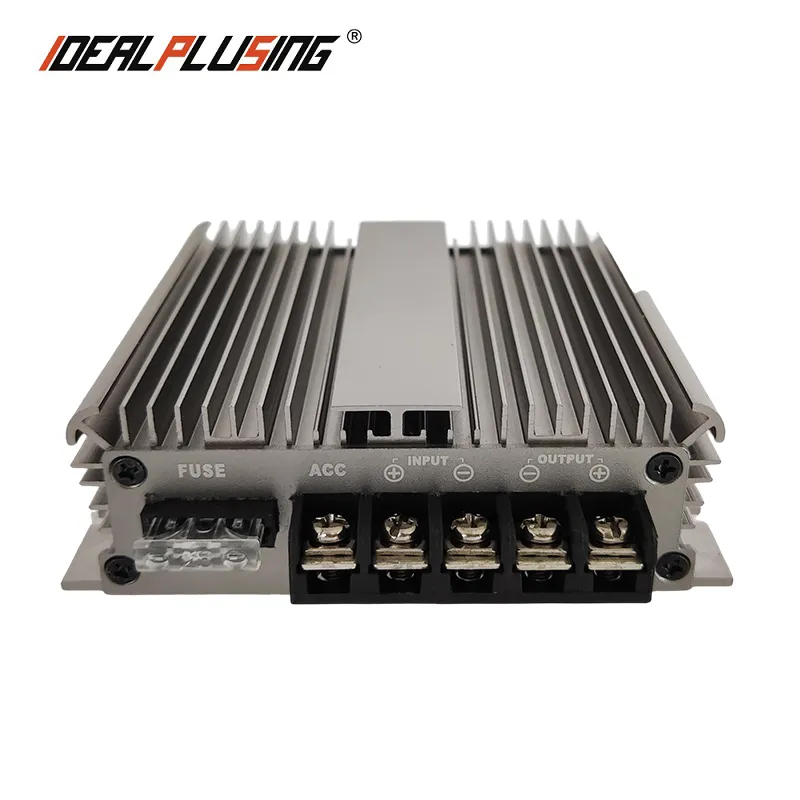

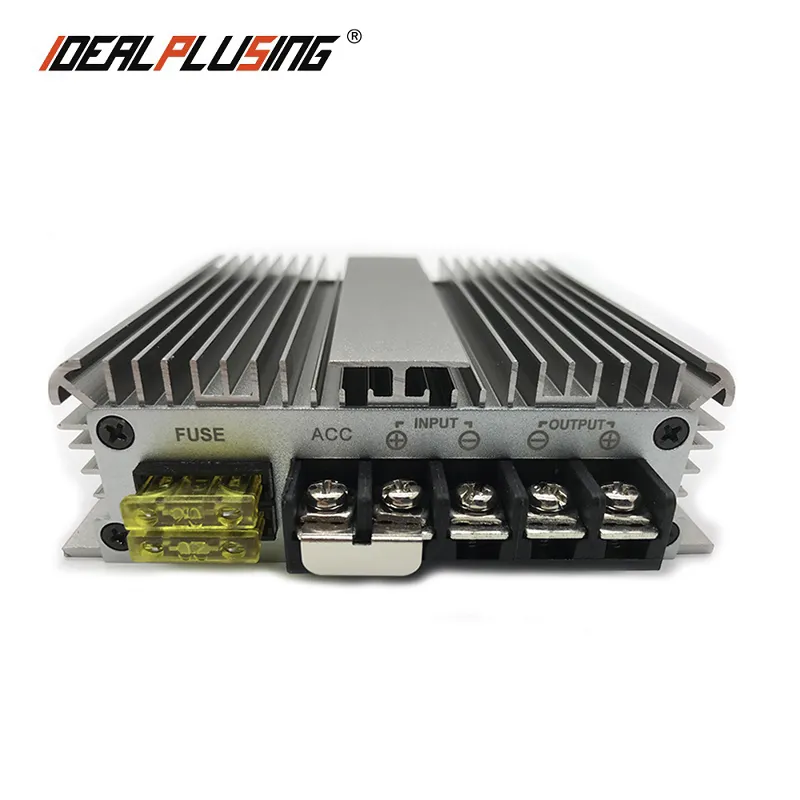

IPS-DTD72S1230 72V to 12V 20A 30A DC DC Step Down Buck Converter
High Quality 36V 48V 60V 72V to 12V 20A 30A 240W 360W DC DC Step Down Buck Converter For Golf Cart Use Model : IPS-DTD72S1230 72V TO 12V 30A DC DC CONVERTER Specification : ① Input: 72VDC(30~90VDC) ② Output: 12VDC 30A ③ Max power: 360W ④ Material of shell: Aluminum ⑤ Size: 100*113*35MM ⑥ NW: 700G,GW:1.5KG ⑦ Design: Non isolate and waterproof IP65 ⑧ Email :power@idealplusing.com Greetings, esteemed clientele. We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 1000V and 1A to 1000A. We provide both isolated and non-isolated converter design options. Please visit our website and submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour. Thank you for considering our services.

Brand

IDEALPLUSING

Name

High Quality 36V 48V 60V 72V to 12V 20A 30A 240W 360W DC DC Step Down Buck Converter For Golf Cart Use

Type

Non-Isolate

Model (IPS-***)

IPS-DTD72S1220

IPS-DTD72S1230

INPUT

Rate Volts

72VDC

Volts range

30~90VDC

OUTPUT

Efficiency

92%

Output volts

12VDC

Output current

20A

30A

Rated Power

240W

360W

OTHERS

Voltage regulation

< 1%

 Load regulation

 < 2%

 Ripple

< 50mV

 No-load current

< 20mA

 Working Temp

-40°c ~ +80°c

Waterproof rating

IP65

 Machine size

100*113*35(MM)

 NW

700G

Cooling way

Free air convection

 Certifications

CE, RoHS

 Customize

Support

Sample order

Support

OEM & ODM

Support

Package

White & colorful package optional
