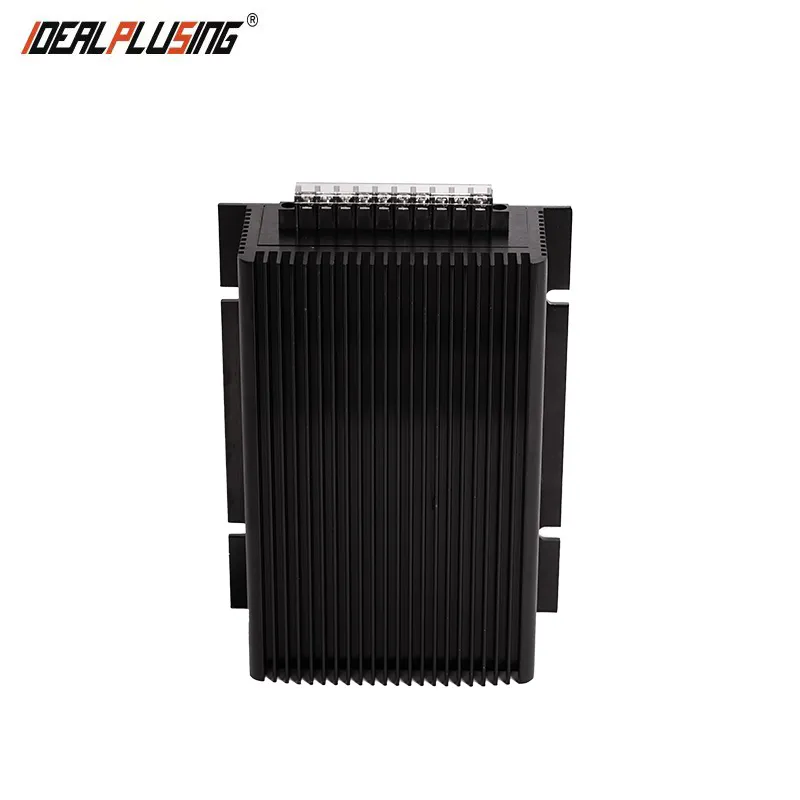

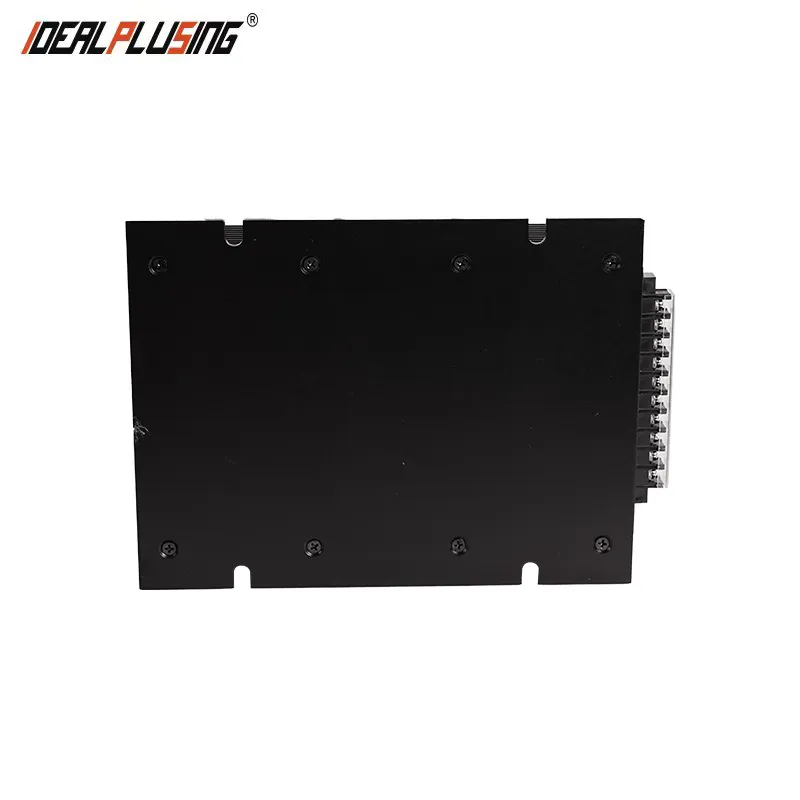

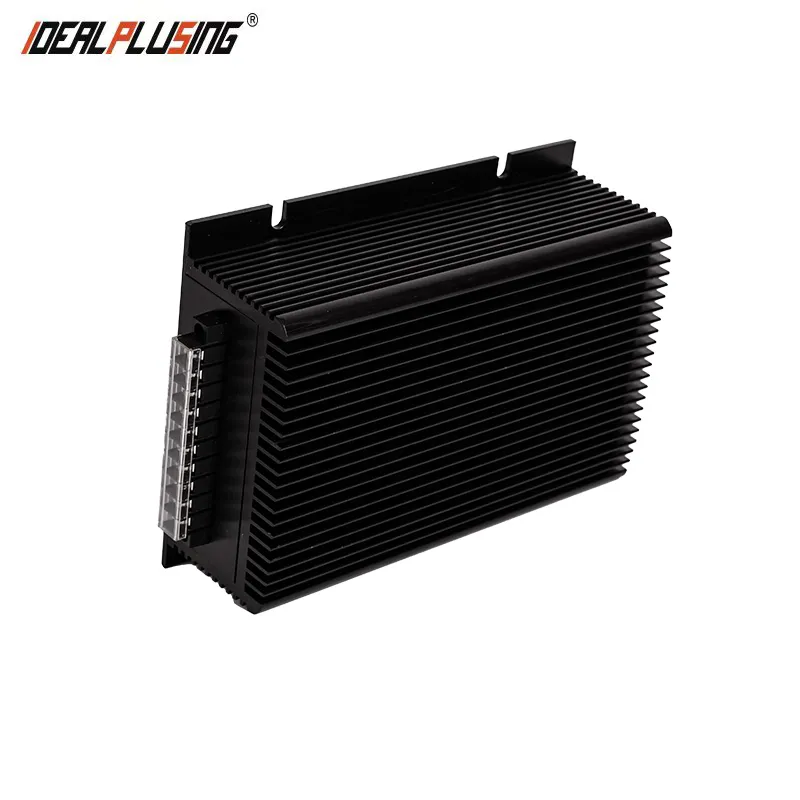

IPS-DTD30-60S24-42 30V 40V 44V 50V 60V to 24V 10A 30A 40A 42A 1008W Isolated DC DC Converter
IPS-DTD30-60S24-42 30V 40V 44V 50V 60V to 24V 10A 30A 40A 42A 1008W Isolated DC DC Converter
① Model: IPS-DTD30-60S24-42
② DC Input : 30-60VDC
③ DC Output voltage : 24VDC
④ DC Output current: 42A (continuous ≤33A ）
⑤ Max power: 1008W
⑥ Size: 240*182*81 (MM)
⑦ NW: 3KG; GW: 4KG
⑧ Input & Output: Terminal Blocks
⑨ Design : Input and output are completely isolated
⑩ Cooling Method: Self Cooling
⑪ HS code: 8504409999
If you can not find the right specification to meet your requirement.
Contact us now! It will not cost you one cent when you ask us anything, but it may be a chance for both of us!
Our dedicated team endeavors to respond within one hour.
Datasheet： Download
| IPS-DTD30-60S24-42 30V 40V 44V 50V 60V to 24V 10A 30A 40A 42A 1008W Isolated DC DC Converter | ||||||
| Name | Isolated DC DC Converter | Model | IPS-DTD30-60S24-42 | |||
| Product Size | 240*182*81 MM | Design | Input and output are completely isolated | |||
| Net Weight | 3KG | Gross Weight | 4KG | |||
| Technical Parameters | Minimum | Typical Value | Maximum | Unit | Condition | Remark |
| Input voltage range | 30 | 44 | 60 | VDC | ||
| Output voltage | 24 | VDC | ||||
| Output current | 42 | A | ||||
| Voltage regulation | ±1 | % | ||||
| Load regulation | ±1 | % | ||||
| Ripple and noise | 200 | Mvp-p | ||||
| General Features | ||||||
| Insulation withstand voltage | 1050 | VDC | Input to housing | |||
| Insulation withstand voltage | 500 | VDC | Output to housing | |||
| Isolation voltage | 1500 | VDC | Input to output | |||
| Insulation impedance | 200 | MΩ | ||||
| Protection function | Input undervoltage, over-temperature protection, output overcurrent, short circuit protection | |||||
| Environmental characteristics | ||||||
| Operating shell temperature | -25 | 85 | ℃ | |||
| Storage temperature | -45 | 105 | ℃ | |||
| Waterproof grade | / | Waterproof | ||||
| Cooling method | Self Cooling | |||||
| Output method | Terminal Blocks | |||||
| Remark | ||||||
| Remark: All the above parameters are theoretical values, please refer to the actual product testing data for actual products. | ||||||
