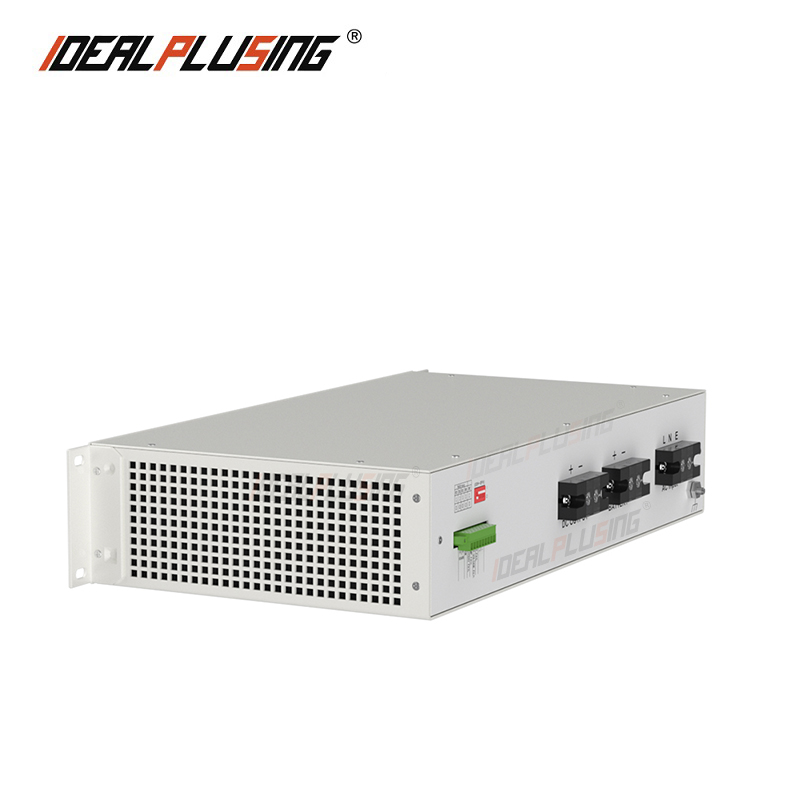

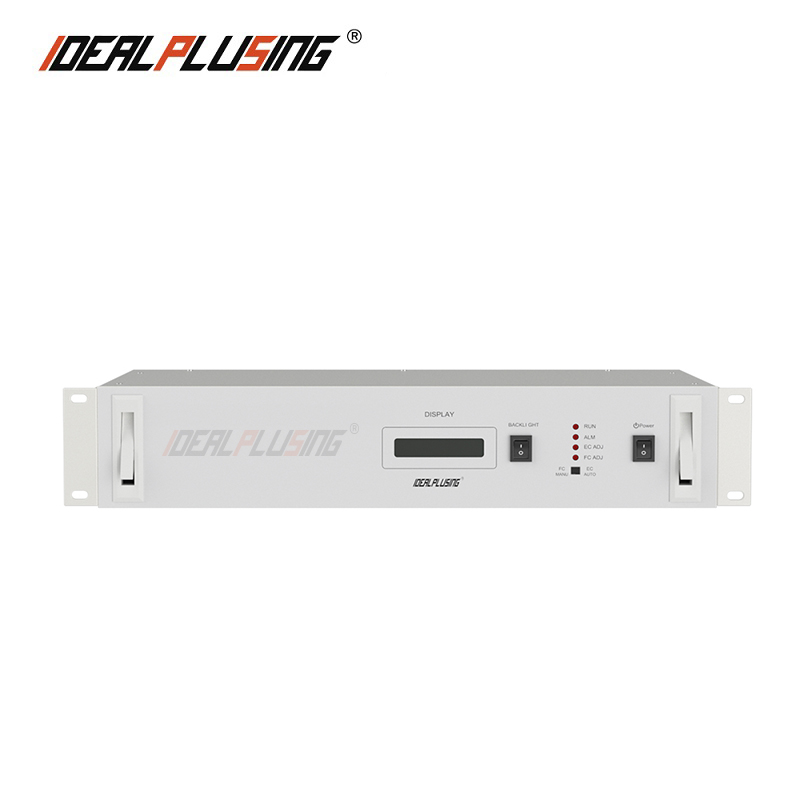

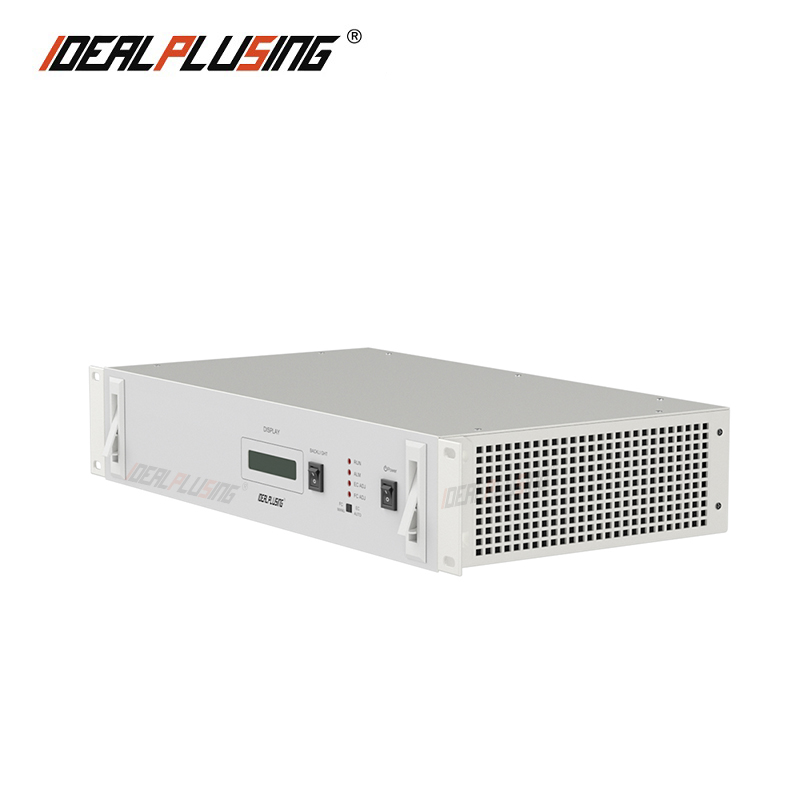

Technical Data | IPS-DTD220S4840 | Test Conditions | ||
Input Voltage Range | 180~270VDC | |||
INPUT Current （A） | 10.27A | |||
Module Power Surge (A) | DC≤2A | Output Full Load | ||
Output Float Voltage (V) | 48VDC | Factory Settings | ||
Output Current （A） | 40A | Output Limit 101％～105％ | ||
Load Regulation | ≤±0.5％ | Output without load to full load | ||
Power Regulation | ≤±0.2％ | |||
Dynamic Response | 100usMax | 20％～100％ Load | ||
Phone Scale Noise Voltage（mV） | ≤2 | Noise meter | ||
Peak - peak Noise Voltage (mV) | ≤100 | 0~20MHz | ||
Efficiency | ≥83％ | |||
Current Deviation | ≤±5％ | |||
Temperature Coefficient (℃) | 0.02％ | |||
Over-temperature protection (℃) | 95±5 | Radiator will close when temperature is over 95℃, can recover. | ||
Working Temperature (℃) | -5~45 | |||
Storage Temperature (℃) | -10~85 | |||
Working Humidity | 5％~95％ | Non-condensing | ||
Insulation Strength | Leakage Current <30mA | 500Vdc/1min | ||
Insulation Resistance (MΩ) | ≥20 | DC 1KV | ||
MTBF (hrs.) | 100000 | |||
Net Weight (Kg) | 7.5 | |||
Gross Weight (Kg) | 9.5 | |||
Dimension | Rack-mounted (mm) (L * H * D) | 482*88*325 | ||
Dimension | Package | 630*180*390mm | ||
