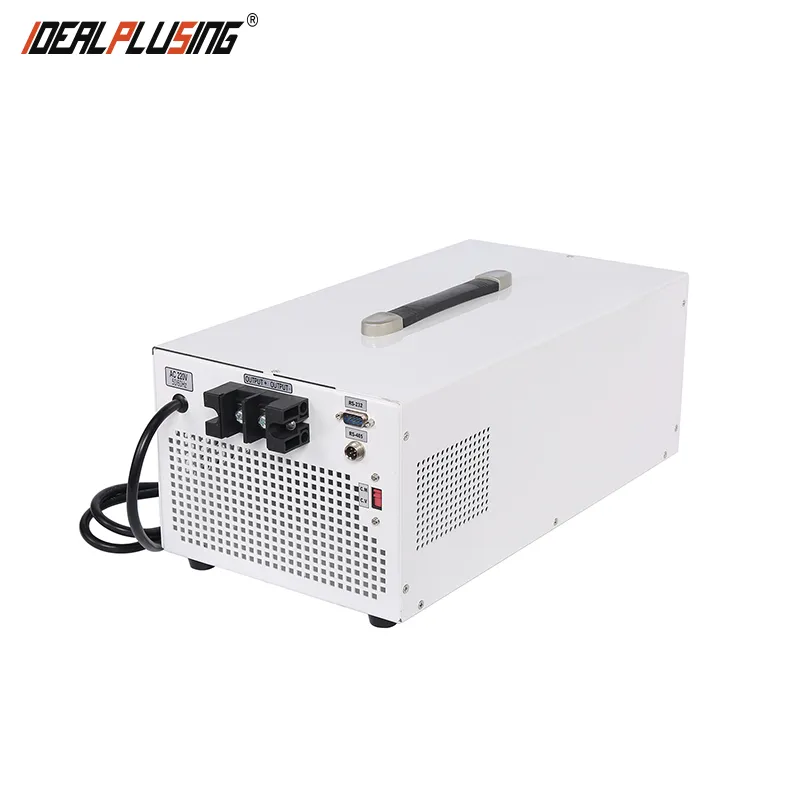

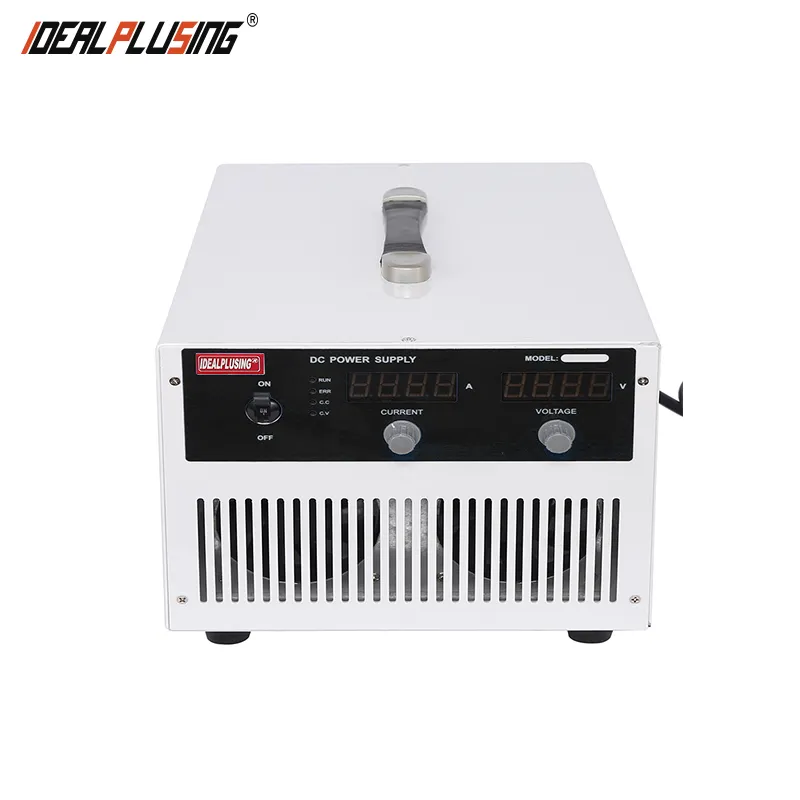

IPS-ATDY10004 1000VDC 4kw adjustable 220vac 10vdc switching mode 4a ac dc power supply
Model :IPS-ATDY10004 4000VDC 4A 4000W DC Power Supply Specification : ① AC INPUT: Single phase 220VAC±15% 50/60HZ ② DC OUTPUT: 0~1000VDC, 0~4A ③ Max power: 4000W ④ Machine size: 220*460*170MM ⑤ NW: 14KG, GW: 16KG ⑥ Protection:lower voltage, over voltage, over current, short circuit, overheating ⑦ Package: Pearl cotton and carton double protection We specialize in customizing DC power supply to meet your specific requirements. With customized input and output voltage and current, our offerings range from 0V to 2000KV DC and 0A to 2000A. We provide AC-DC solutions for the motor category or electrical appliances testing or Lab testing, electrochemistry, electrolysis, electroplating, and anodizing. Please visit our website and submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour. Thank you for considering our services.

Model

IPS-ATDY10004

AC Input

Single phase 220VAC±15%

Input Voltage Range

220VAC±15%

Input frequency

50Hz/60Hz

Output voltage

0~1000VDC

Output current

0~4A

Output Power

4000W

Voltage Stabilization

≤0.3%+10mV

Load Stabilization

≤0.5%+30mV

Ripples and Noises

≤0.5%+10mVrms

Voltage Display Accuracy

4-digit Accuracy: ±1%+1 word (10%-100% rating)

Display Format

0.000V-9.999V;  0.00V-99.99V;  0.0V-999.9V

Current Display Accuracy

4-digit Accuracy: ±1%+1 word (10%-100% rating)

Remote Adjustment

(Analog control: Voltage adjustable )0-5VDC(Current adjustable)0-5VDC

Remote Display

(Analog control: Voltage adjustable )0-5VDC(Current adjustable)0-5VDC

Output Over Voltage Protection

Built-in O.V.P. protection, protection limited value is rated +5%

Output Over Load Protection

Overload, current limit, constant current output

Over Temperature Protection

Built-in O.T.P. protection, Protection value 85℃±5%  heat sink temperature

Voltage Setting

10-turn precision potentiometer

Current Setting

10-turn precision potentiometer

Output Polarity

Output Positive+) negative- ) Can be grounded at will

Heat Dissipation Way

Forced fan cooling

Work Conditions

Indoor use designTemperature0℃~40℃Humidity10%~85%RH

Storage Conditions

Temperature-20℃~70℃Humidity10%~90%RH

Product Dimension

220*460*170MM

Net Weight

14KG
