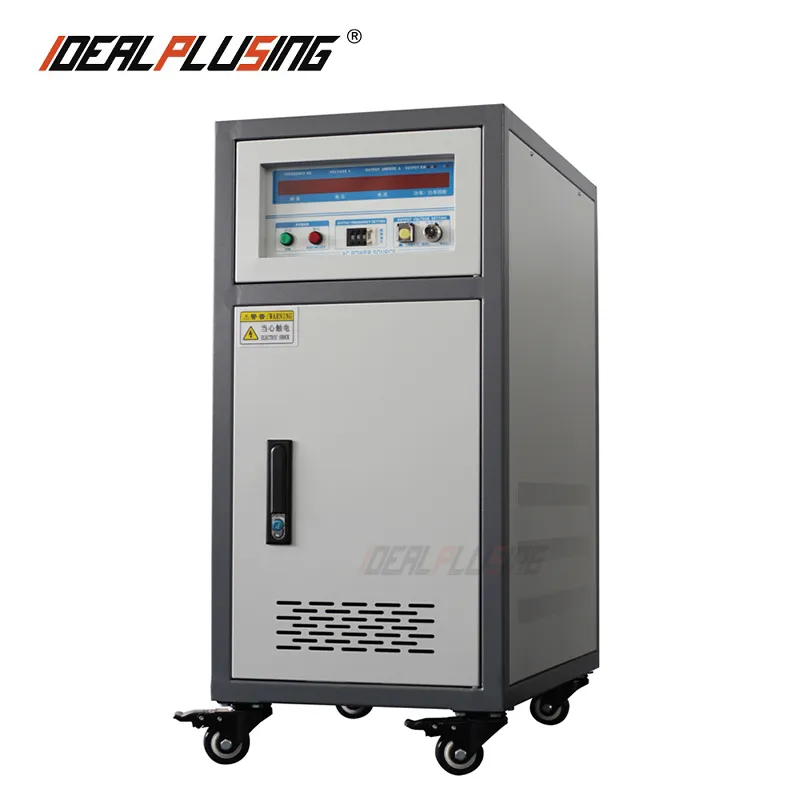

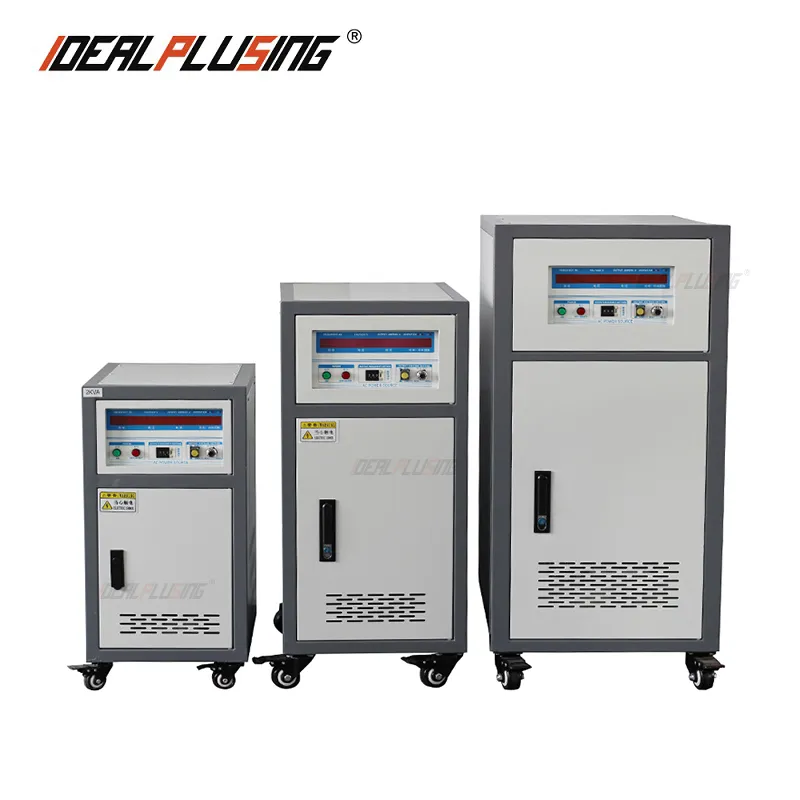

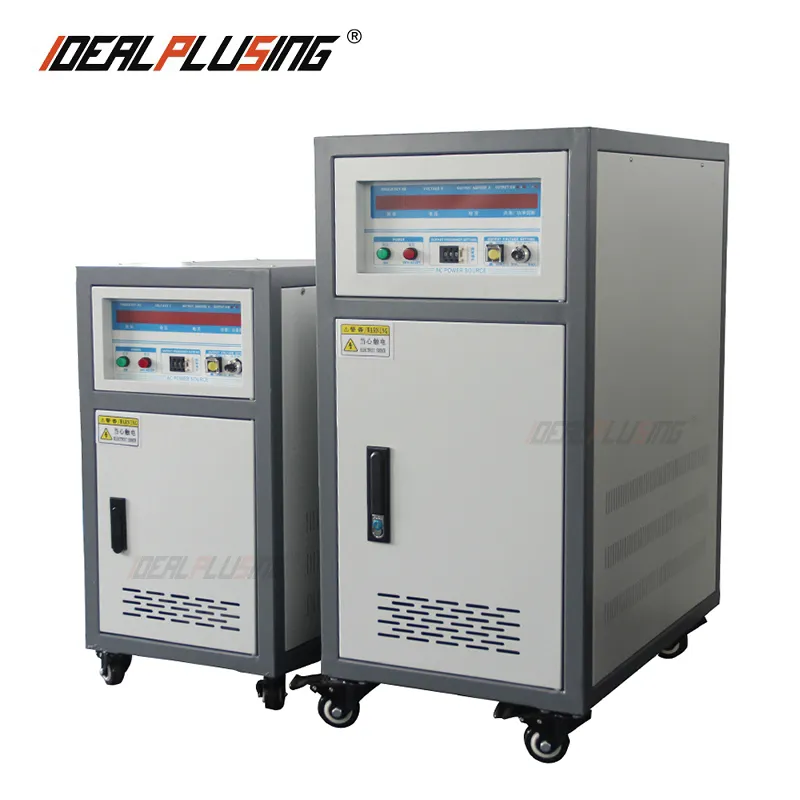

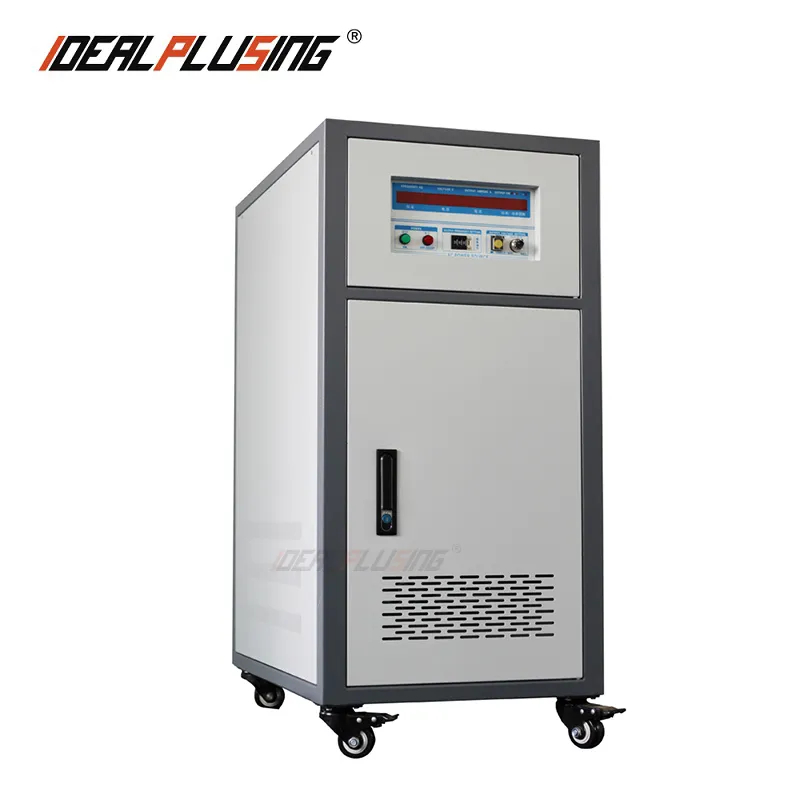

15KVA ac frequency converter 50hz 60hz 220v to 380v
"① AC INPUT: 3 phases 380VAC±15% ② Output capacity: 15KVA ③ Output frequency: 50Hz, 60Hz; FM 45-400hz, ④ Machine size: L480*W850*H600(MM) ⑤ NW: 135KG, GW: 150KG ⑥ Protection:Overload, overcurrent, overheating (85p ± 5p), short circuit, overvoltage and other protection ⑦ Package: Pearl cotton and carton double protection"

PERFORMANCE CHARACTERISTICS

1

Complete isolation of input and output technology, safe and reliable power supply

2

SPWM sine wave pulse width modulation technology is adopted, with fast response speed and stable output

3

IGBT high-frequency static inverter, small size, lightweight, low noise, and high efficiency

4

The unique double-loop control mode of instantaneous value and effective value is adopted, with high control precision and good waveform quality, which can adapt to various loads

5

High power IGBT module and highly integrated module drive circuit, reliable operation, strong overload capacity, low loss, and high efficiency

6

Suitable for resistive, inductive, rectifier, and other loads

7

It has multiple protection functions for abnormal conditions such as overheating, overcurrent, and short circuit

8

It has the function of setting parameter memory, (10-groups) shortcut key operation

9

The power supply voltage and frequency can be adjusted online, and the frequency can change in real-time

APPLICATION

1

Home appliances

8

Photovoltaic

2

Motors

9

Lamps

3

Power tools

10

Electronic transformers

4

Switching power supplies

11

Electronic components

5

Power adapters

12

Low-voltage distribution

6

UPS

13

Power

7

Information and communication

14

Other industries

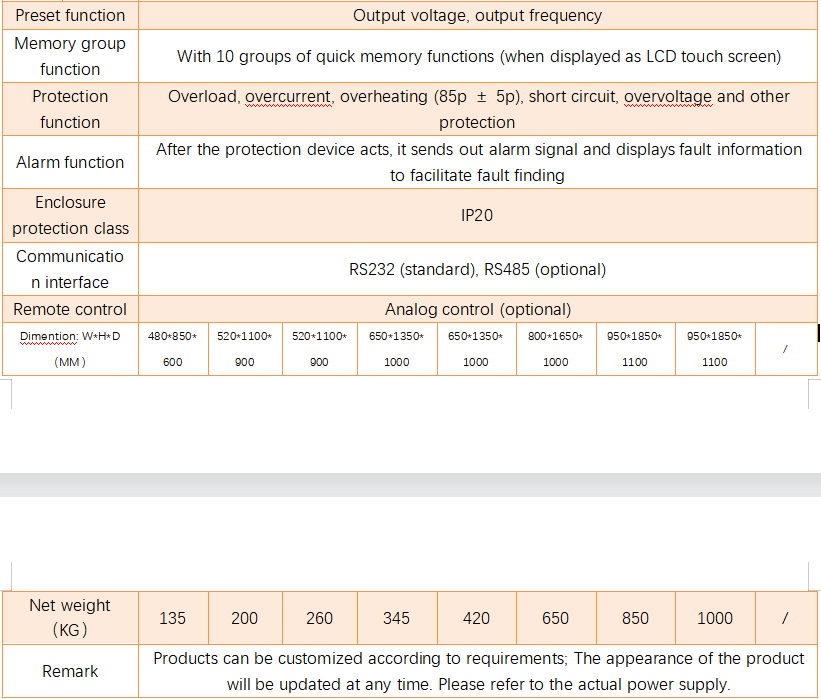

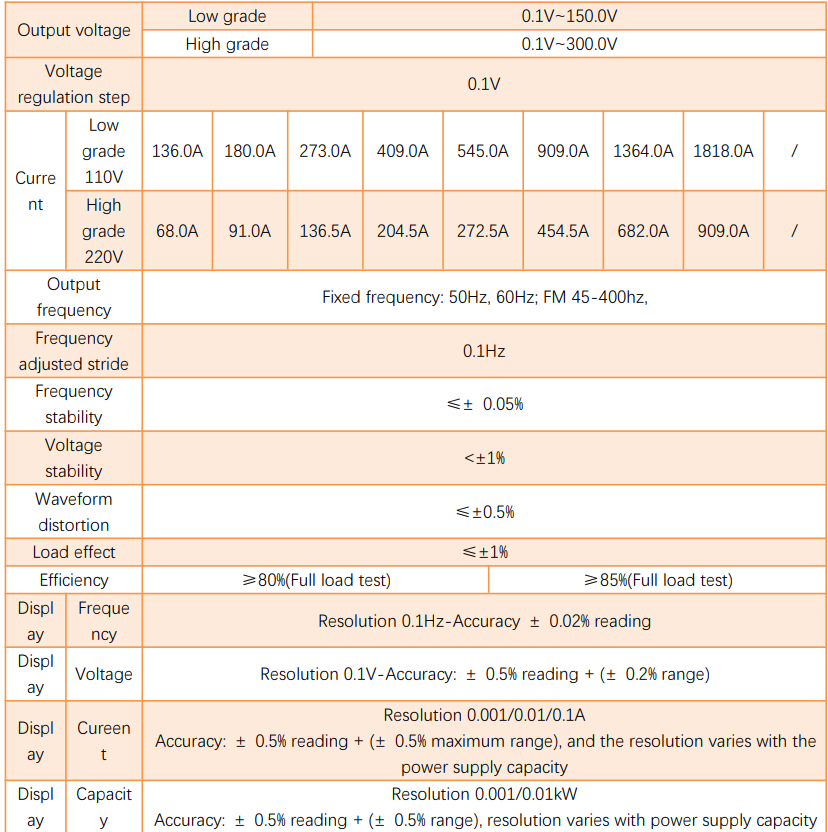

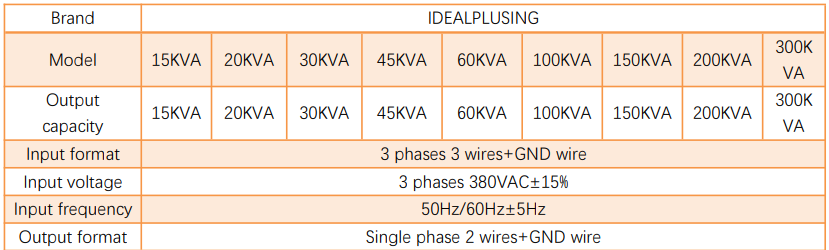

SPECIFICATION-IPS-FC63 SERIES
