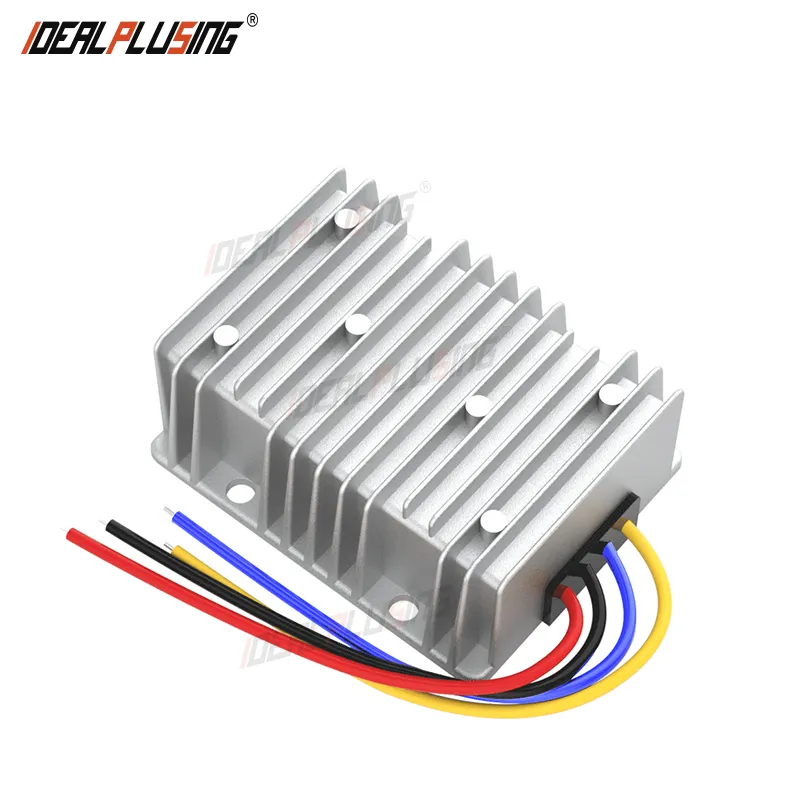

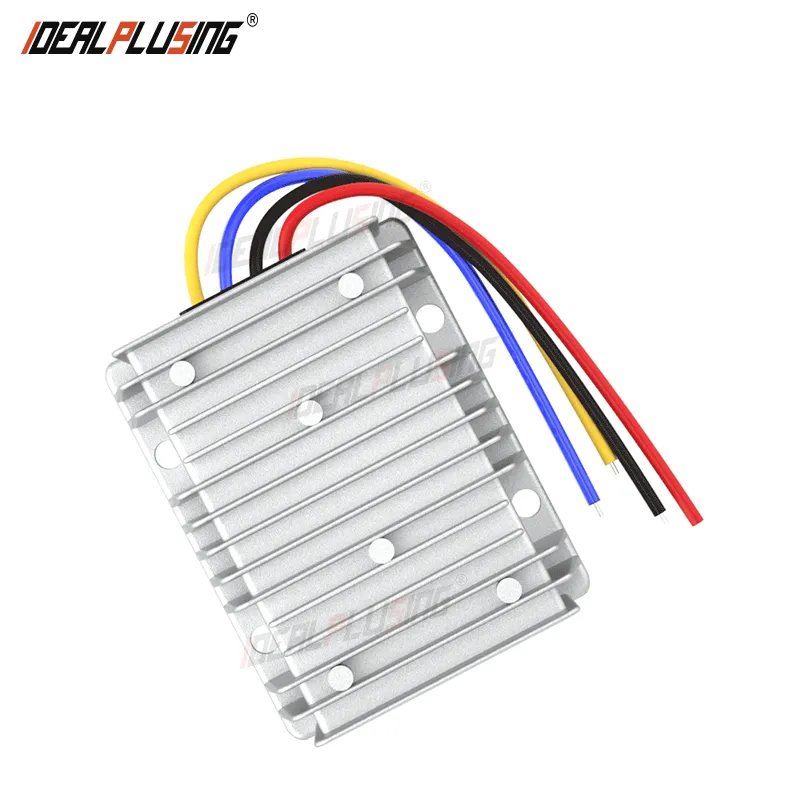

IPS-DTDYI72S1215 Isolated 180W 15a 72 volt to 12 volt dc dc converter for car
Model : IPS-DTDYI72S1215 72V TO 12V 15A DC DC CONVERTER Specification : ① Input: 72VDC(50-100VDC) ② Output: 12VDC15A ③ Max power: 180W ④ Material of shell: Aluminum ⑤ Size: 100*80*39(MM) ⑥ NW: 0.500KG,GW:0.550KG ⑦ Design:Isolate and waterproof IP65 ⑧ Email :power@idealplusing.com Greetings, esteemed clientele. We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 1000V and 1A to 1000A. We provide both isolated and non-isolated converter design options. Please visit our website and submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour. Thank you for considering our services.

PART 1. INTRODUCTION

DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. DC/DC converters are divided into three categories: Boost type, boost & buck type, and buck type.

Three kinds of control can be adopted according to the demand. PWM control type has high efficiency and good output voltage ripple and noise. PFM control type has the advantage of low power consumption even if it is used for a long time, especially under small load.

 PFM control is implemented when PWM/PFM converts to small load, and it is automatically converted to PWM control when heavy load occurs. At present, DC-DC converters are widely used in mobile phones, MP3, digital cameras, portable media players and other products. It belongs to chopper circuit in the classification of circuit types.


PART2. FEATURES

1

Design meeting RoHS / CE

2

High efficiency: 93%

3

Isolated between input and output

4

Internal capacitor: NCC & NICHICON (high reliability)

5

100% full load burn-in test

6

Over load, Over temperature and Over voltage protections

7

Waterproof level IP65

8

12 months warranty


PART 3: TECHNICAL PARAMETER

Brand

IDEALPLUSING

Type

Isolated

Model

IPS-DTDYI72S1215

DC voltage INPUT

Voltage rate

72VDC

Voltage range

50~100VDC

DC voltage & Current output

Voltage rate

12VDC

Current

15AMPS

Rate Power

180Watts

Size

100*80*39(MM)

NW

500G

Others

Customize

Allow

Material of shell

Aluminum

Working temp

-20~80℃

Efficiency

93%

Waterproof Level

IP65
