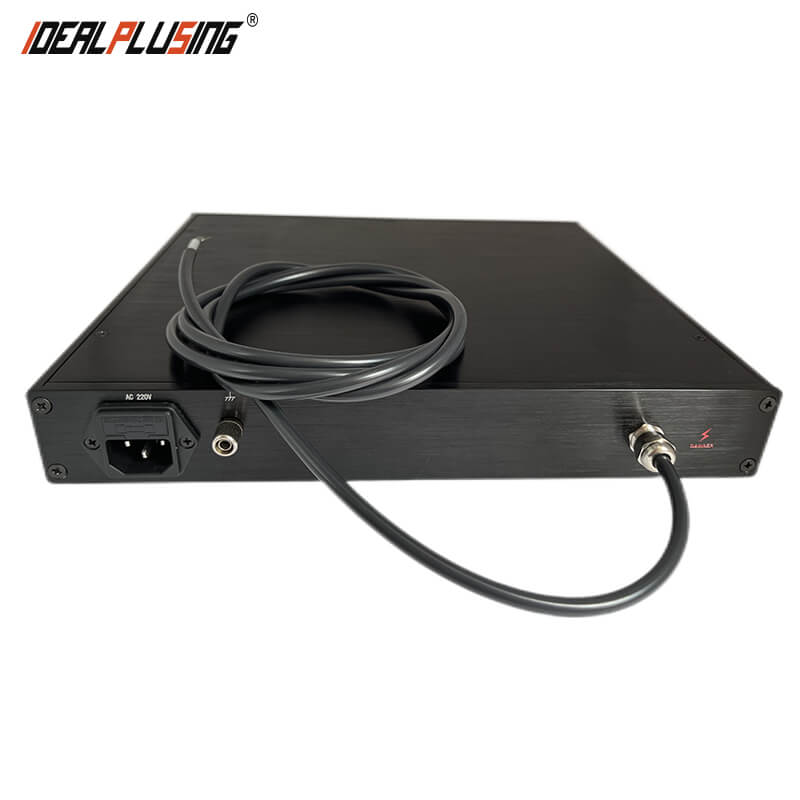

IPS-ATD30KV-1mA-High voltage equipment DC power supply components transformer 30KV 1mA for adsorption of heavy metal ions in wastewater treatment
IPS-ATD30KV-1mA 30KV 1mA 30W High Voltage DC Power Supply ① AC INPUT: Single phase 110VAC or 220VAC±10% 50/60HZ ② DC OUTPUT: 0~30KVDC, 0~1mA ③ Max Power: 30W ④ Machine size: L300*W260*H45(MM) ⑤ NW: 3KG, GW: 4.5KG ⑥ Protection:lower voltage, over voltage, over current, short circuit, overheating ⑦ Package: Pearl cotton and carton double protection

SPECIFICATION

Technical specification

Specification indicator

Input voltage

AC90V~AC264V,47Hz~63Hz

Output voltage

See "List of typical high voltage power supplies" for details, customised to suit customer requirements

Output current

Output power

≤300W

Ripple voltage

≤0.5%

Voltage regulation rate

Less than 0.1% within the maximum permissible range of input voltage for a given load

Load Adjustment Rate

Input voltage constant, load from no-load to rated, less than 0.5%

Time-drifting

≤0.1%/h (after 30 minutes of power operation)

Warm float

≤0.1%/℃

This control

The output voltage can be set between 0V and the maximum voltage by adjusting the multi-turn potentiometer.

Start/stop function

Controls the start and stop of the power supply; when the switch is "pressed", the power supply is activated

Grounding method

AC isolated, reference ground to earth

Protection method

Flow limiting type

Operating temperature range

0℃~+50℃

Storage temperature range

-25℃~+75℃

Net Weight

3.0KG

Housing material

Aluminium

Dimension

L300*W260*H45(MM)
