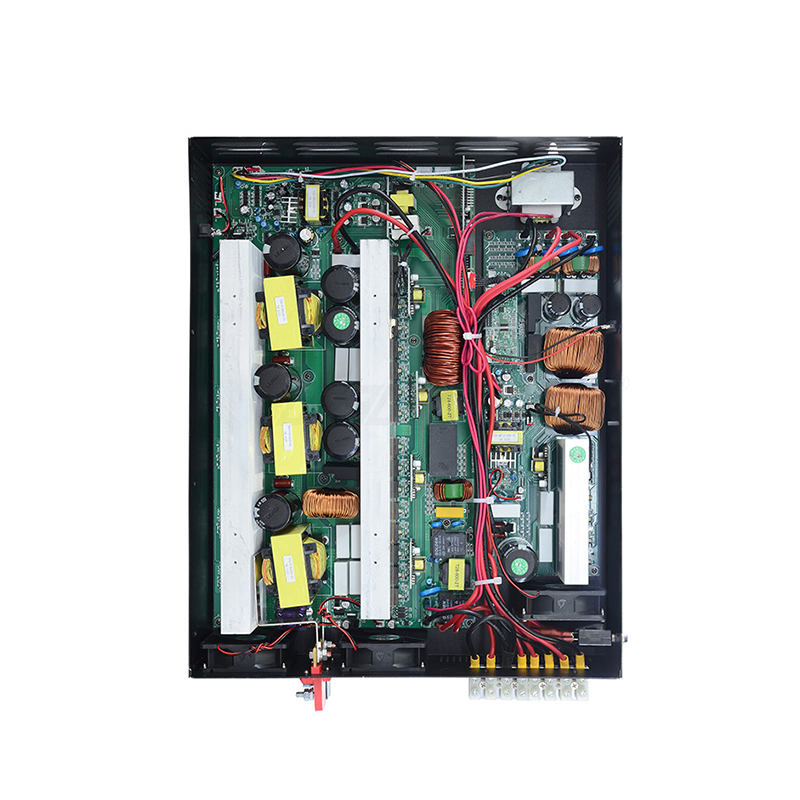

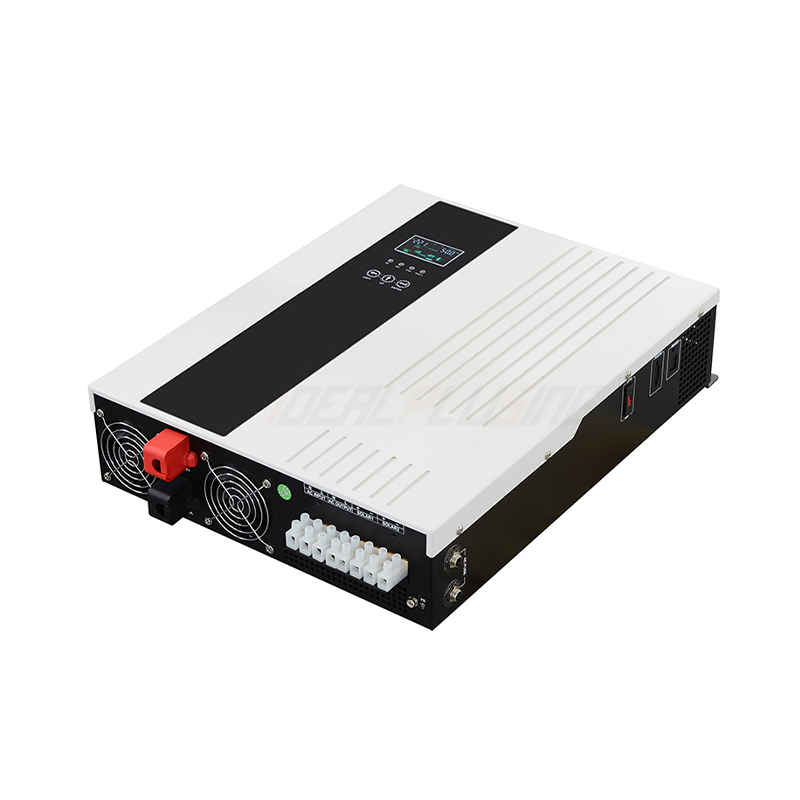

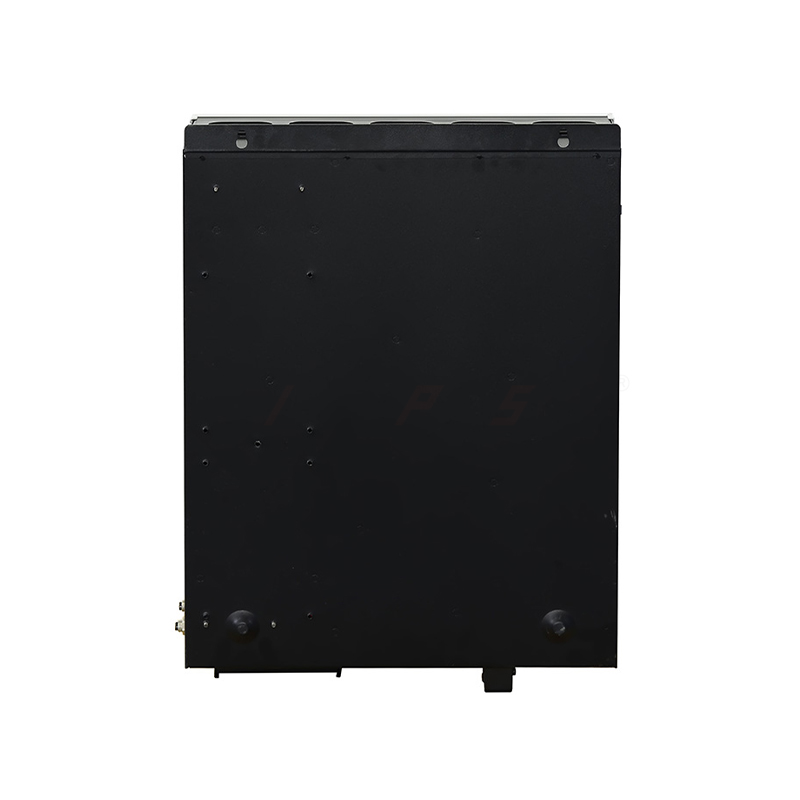

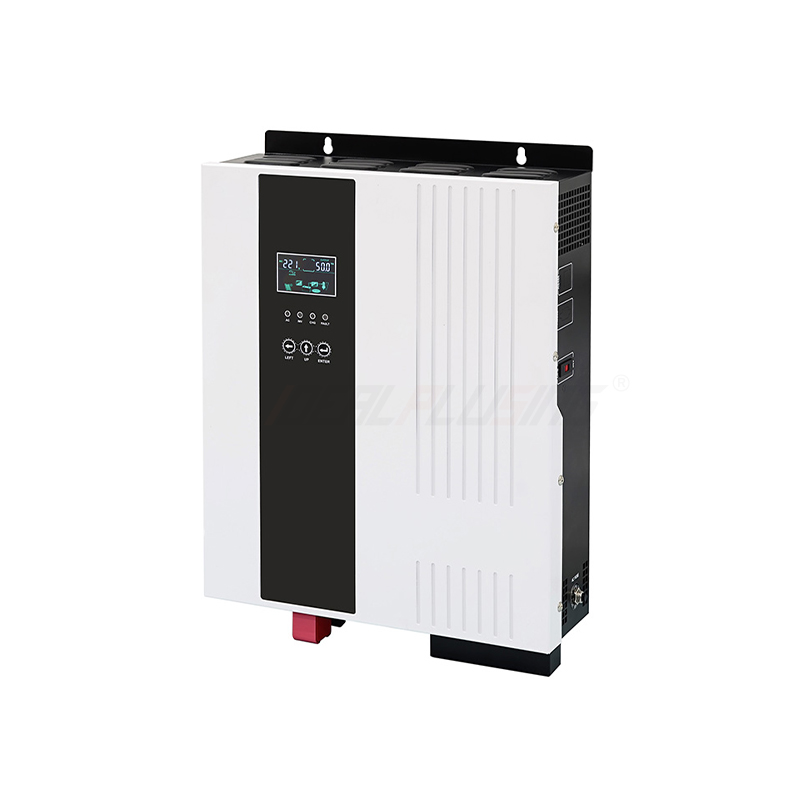

IPS-HP-10212 Dc to Ac Mppt 48volts solar inverter pure sine wave charger intelligent mini inverter solar 1000w hybrid for wind generator
MODEL： IPS-HP-10212 12VDC to 220VAC 1000W Power Inverter SPECIFICATION： ①　DC Input : 12VDC ②　AC Output : 220VAC 50HZ ③　Max power: 1000W ④　Communication:RS485/APP (Optional) ⑤　Size:434x283x88(MM) ⑥　NW: 7KG; GW: 8KG

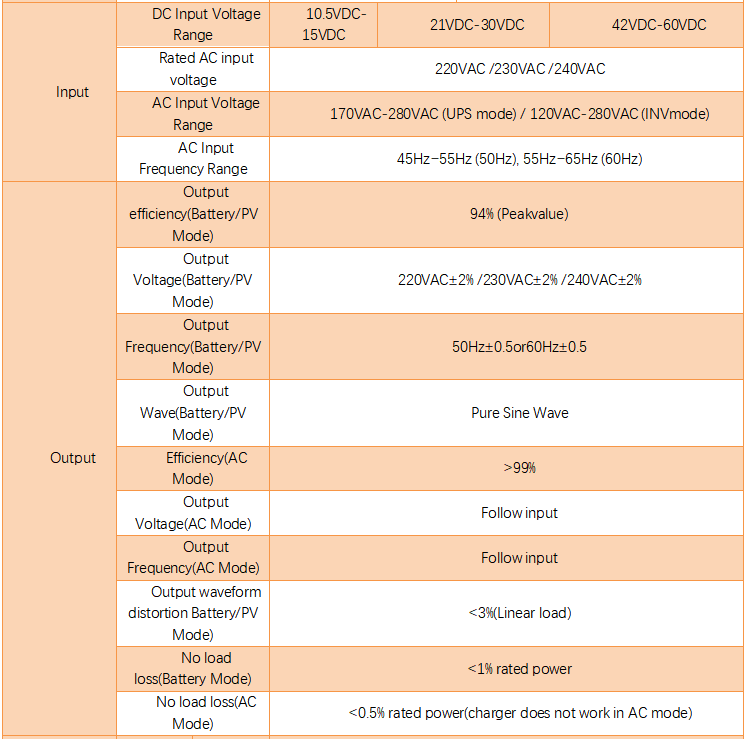

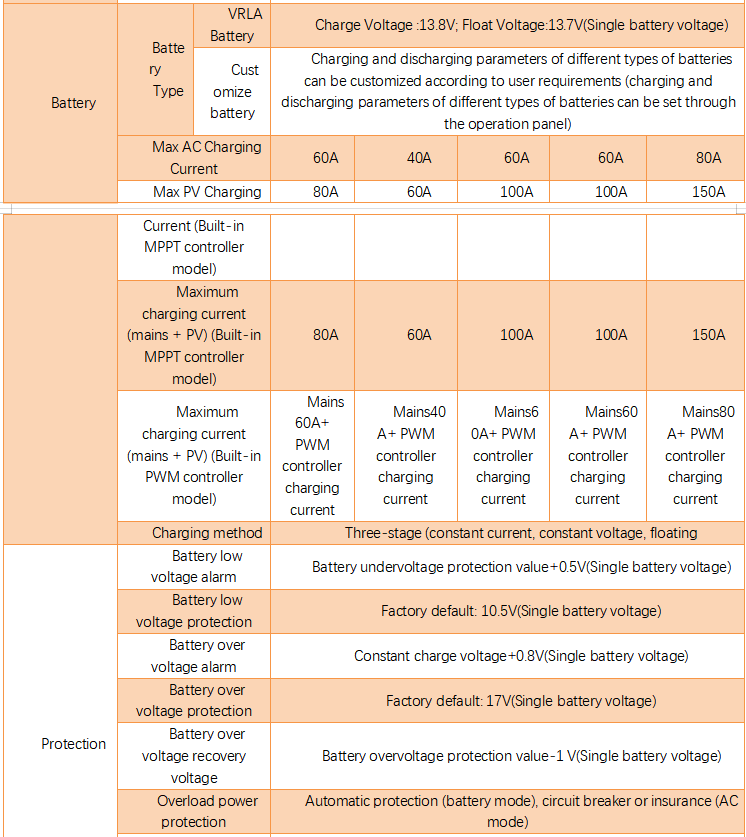

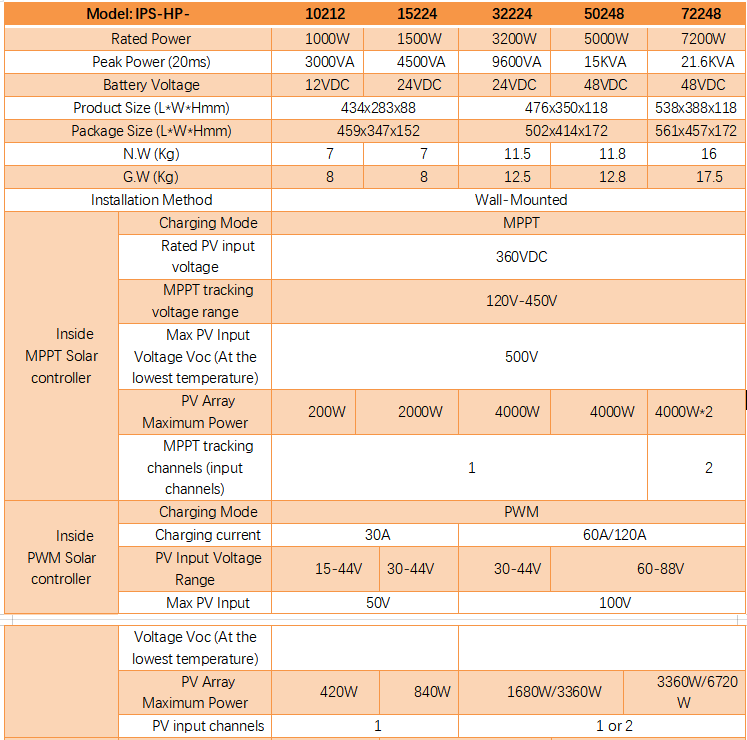

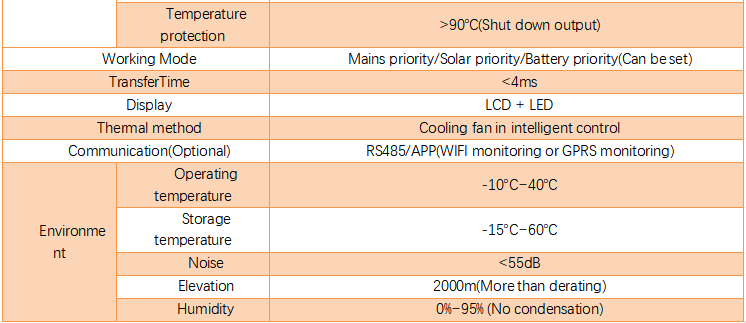

Technical parameter
