Brand | IDEALPLUSING/OEM | ||
Series No | 120W Series | ||
Model No | IPS-BC24-2 | IPS-BC24-3 | IPS-BC24-4 |
Input Voltage | 100~240Vac, 50HZ/60HZ | ||
Nominal Voltage | 24VDC | ||
Charging Current | 2A | 3A | 4A |
Housing | Aluminum Alloy | ||
Net /Gross Weight | 0.8KG/1.5KG | ||
Product dimension | L135*W90*H50(MM) | ||
Package dimension | L160*W110*H80(MM) | ||
CV-Lead acid-14.7V | 29.4V(2S) | ||
CV-LiFePO4-3.65V | 29.2V(8S) | ||
CV-Lithium-4.2V | 25.2V(6S)/29.4V(7S) | ||
Charging Principle | Full automatic transition CC,CV and Float/Cut-off | ||
Charging Time | Cut-off point for Li battery is 5% of CC and it can be set between 3-10%. | ||
Transition for Lead acid charger is 20% of CC. | |||
High-Efficiency | ≥90% | ||
MTBF | ≥50000h | ||
Operating Temperature | -20℃~50℃ | ||
Store Temperature | (-40~80)℃ | ||
Related humility | 90%(40±2℃) | ||
Protection Function | Over voltage | Over temperature | Over current |
Short circuit | Reverse polarity Protect | ||

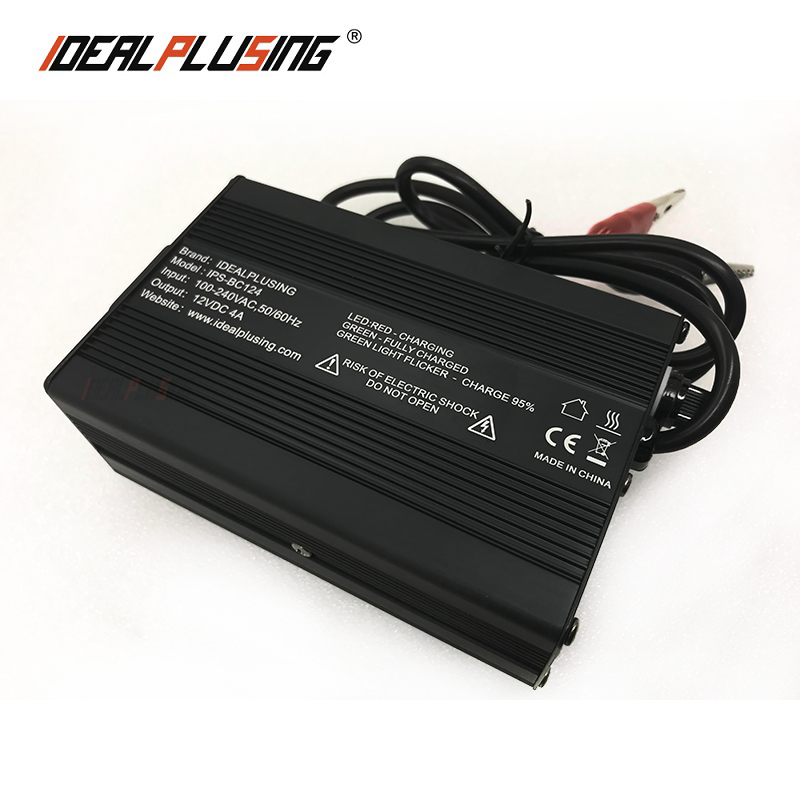

Indicators | Red means power on / charging, Green means full charged | ||
AC Plug | Accept any plug base on your request | ||
