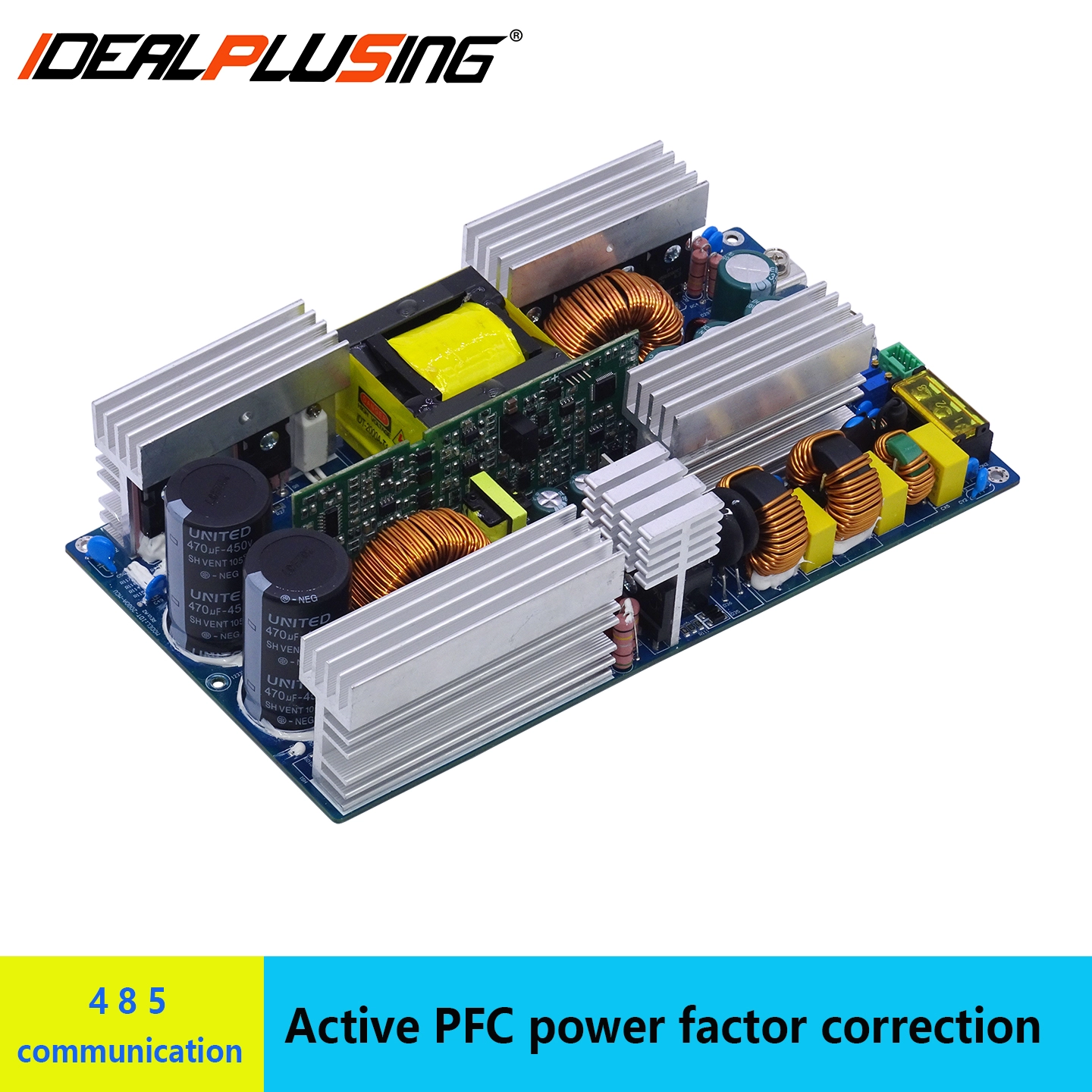

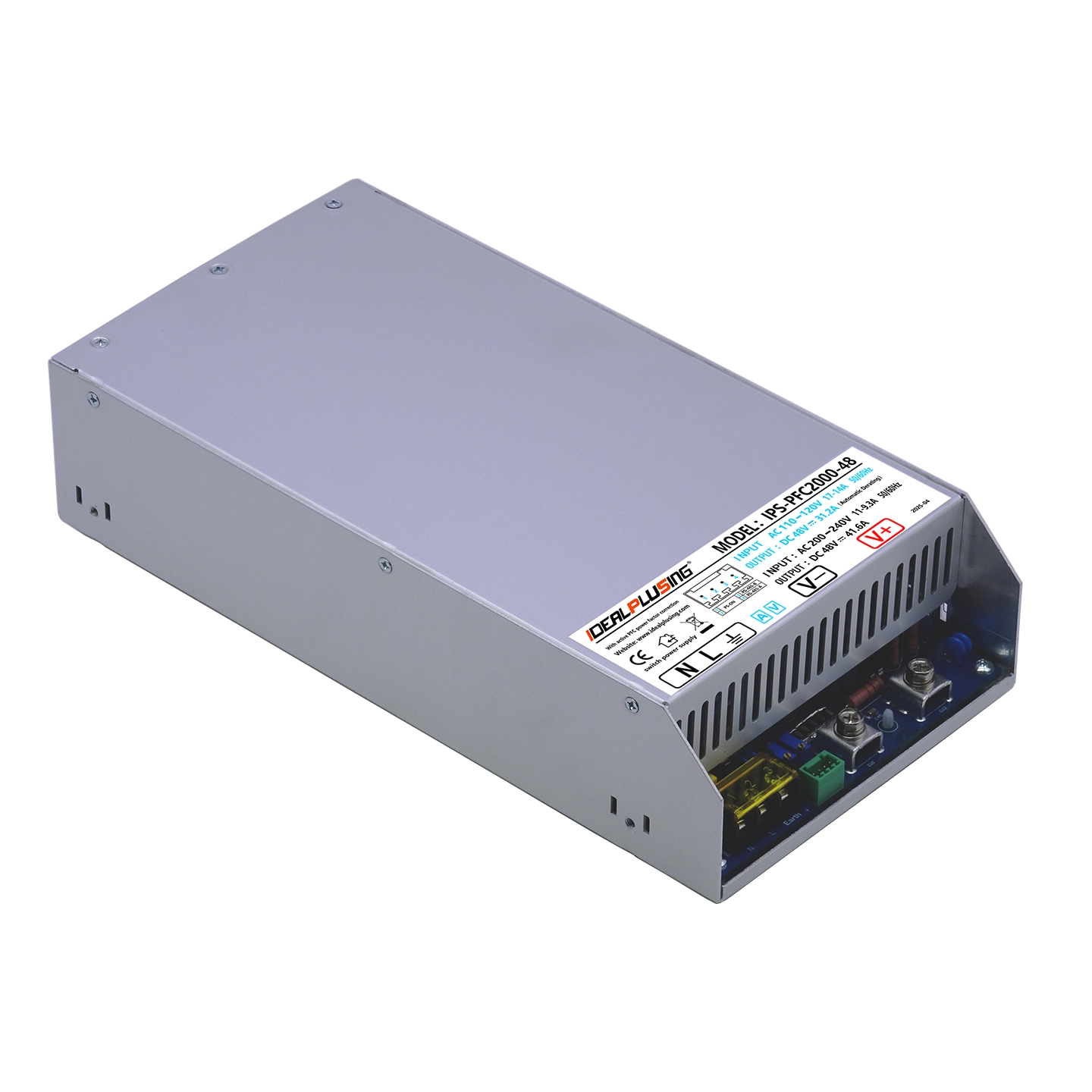

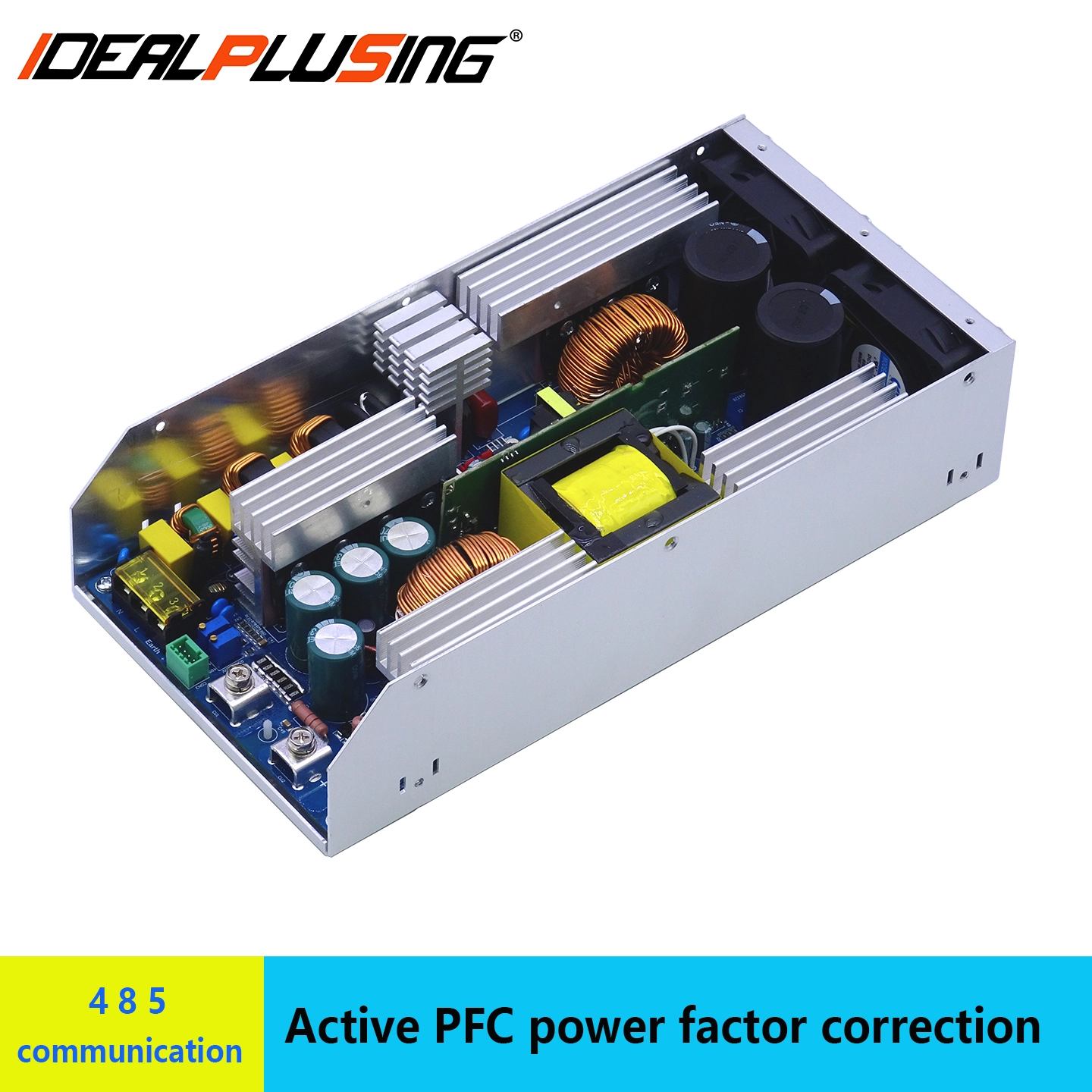

MODEL | IPS-PFC2000 -24 | IPS-PFC2000 -36 | IPS-PFC2000 -42 | IPS-PFC2000 -48 | IPS-PFC2000 -60 | IPS-PFC2000 -72 | IPS-PFC2000 -110 | IPS-PFC2000 -150 | ||||
Output parameters | DC output voltage | 24V | 36V | 42V | 48V | 60V | 72V | 110V | 150V | |||
AC 220Vinput | Rated output current | 83.3A | 55.5A | 47.6A | 41.6A | 33.3A | 27.8A | 18.2A | 13.3A | |||
Rated output power | 2000W | 2000W | 2000W | 2000W | 2000W | 2000W | 2000W | 2000W | ||||
AC 110Vinput | Rated output current | 62.5A | 41.7A | 35.7A | 31.2A | 25A | 20.8A | 13.6A | 10A | |||
Rated output power | 1500W | 1500W | 1500W | 1500W | 1500W | 1500W | 1500W | 1500W | ||||
Note: When using AC110V input, the output is automatically current limited, and the maximum output power is 1500W | ||||||||||||
Voltage regulation range | 14-24.5V | 21-36.5V | 24-42.5V | 27-48.5V | 34-60.5V | 41-72.5V | 62-111V | 84-151V | ||||
Note: If the output voltage is lowered, the maximum output current remains unchanged, and the power will decrease。 | ||||||||||||
Efficiency (100% load) | AC 220V input | 88.5% | 89.6% | 91% | 91% | 91.3% | 91.3% | 91.6% | 92% | |||
AC 110V input | 86% | 87% | 88.5% | 88.5% | 89% | 89% | 89.2% | 89.5% | ||||
Output overvoltage protection value | 32V | 48V | 64V | 64V | 80V | 94V | 156V | 195V | ||||
Protection method: Turn off the output voltage and it will not automatically recover Wait for 5 seconds after powering off, then power on again to recover | ||||||||||||
Ripple (full load) | 220mv | 230mv | 210mv | 220mv | 230mv | 260mv | 250mv | 280mv | ||||
Note: Ripple and noise test method: connect 47uf Electrolytic capacitor and 0.1UF Ceramic capacitor in parallel at the load end (in order to reduce the impact of new external series interference on the test). The Bandwidth throttling of the oscilloscope is limited to 20MHZ, which should be measured from the load end | ||||||||||||
Maximum capacitive load | 30000uF | 20000uF | 15000uF | 12000uF | 8000uF | 5000uF | 3500uF | 1500uF | ||||
Load adjustment rate | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ||||
Voltage accuracy | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ||||
Start up, rise time | 3S ，20ms/230VAC(at full load） 8S ，20ms/110VAC(at full load） | |||||||||||
hold up time | 8ms/230VAC(at full load) | |||||||||||
Output parameters | input voltage | AC 100-240V (wide voltage adaptive, no conversion required) | ||||||||||
AC input frequency | 47-63Hz | |||||||||||
standby power | 14W | |||||||||||
Input current (maximum) | Full load 2000W output, using 220VAC input, input current 10A Full load 1500W output, 15A when using 110VAC input (when using 110V input, the maximum power is limited to 1500W) | |||||||||||
power factor | 100% full load, power factor PF value ≥0.98 (refer to the PF value curve in the figure below) | |||||||||||
Surge current | 220VAC/45A 110VAC/22A | |||||||||||
function |
PS-ON | PS-on terminal short circuit: no output voltage of power supply PS-on terminal open circuit : The power supply has an output voltage Note: PS-ON can control the opening and closing of the power output voltage. When the output voltage is turned off, the power supply is in a low-power standby state (14 watts) and the fan rotates normally. This function is not to turn off the 220V input power. | ||
485 communication | This machine has 485 communication function | |||
Output voltage adjust | The output voltage is adjustable, and the potentiometer V is manually adjusted. See the parameters in the above table for the adjustment range | |||
Ontput current adjust | The output voltage is adjustable, and the potentiometer V is manually adjusted The adjustment range is shown in the parameters in the table above | |||
Protection function | Input undervoltage protection | AC input voltage below 178V, output automatic current limiting, power limiting 1500W AC input voltage below 100V, output automatic current limiting, power limiting 1200W AC input voltage below 85V, power undervoltage protection, no output | ||
Overheat protection | 1. Overheating protection shutdown (when the temperature detection point reaches the high temperature protection setting value, the power is turned off, the temperature drops, and it automatically recovers) 2. Automatic current limiting in high temperature environments (the power supply monitors the ambient temperature in real-time, and when the ambient temperature is too high, the output will automatically limit the current and reduce the output power) The ambient temperature is below 50℃, the temperature derating function will not be activated The ambient temperature is 50-60℃, and the output is automatically limited to 80% power The ambient temperature is 60-70℃, and the output is automatically limited to 50% power The ambient temperature exceeds 70℃ and there is no output. When the temperature drops below 50℃ degrees Celsius, it will automatically recover | |||
Fan failure protection | When either of the two cooling fans does not rotate or the speed is abnormal, the power supply has no output voltage | |||
Output overvoltage protection | About 130% of the rated output voltage, the output is turned off and will not recover. To disconnect the input power supply, wait for 5 seconds before re energizing to restore | |||
Output short circuit protect | Short time instantaneous short circuit: Close the output and automatically recover after 3 seconds Long lasting short circuit: Turn off the output and attempt to restart every 3 seconds (burp mode) | |||
Output overcurrent protect | 1. The overload protection method is constant current limiting. When the output is overloaded, the power supply enters constant current mode, keeping the maximum output current constant. The output voltage decreases with the increase of load 2. When a load of about 3 times the power is connected, it will exceed the range of the overload constant current limit of the power supply. At this time, it is judged as a short circuit, the power supply is turned off, and it will restart every 3 seconds (burp mode) | |||
EMI | Conducted | CISPR32/EN55032 CLASS A | ||
Radiated | CISPR32/EN55032 CLASS A | |||
Harmonic Current | EN61000-3-2 CLASS A | |||
matchVoltage Flicker | IEC/EN61000-3-3 | |||
EMS | ESD | IEC/EN61000-4-2 Contact ±4KV/Air ±8KV | perf. Criteria A | |
Radiated Susceptibility | IEC/EN61000-4-3 3V/m | perf. Criteria A | ||
EFT/Bures | IEC/EN61000-4-4 ±2KV | perf. Criteria A | ||
Surge | IEC/EN61000-4-5 line to line ±2KV/line to ground ±4KV | perf. Criteria A | ||
Conducted Susceptibility | matchIEC/EN61000-4-6 10Vr.m.s | perf. Criteria A | ||
Voltage Dips and interruptions | IEC/EN61000-4-11 0%, 70% | perf. Criteria B | ||
1. The power supply should be considered as a part of the components within the electrical equipment, belonging to accessories, rather than an independent device 2. When conducting radiation testing, the test sample should be placed on a metal plate with a length of 80cm, width of 60cm, and thickness of 2mm for testing. The power supply should cooperate with the load equipment to conduct overall electromagnetic compatibility related tests. 3. When conducting conduction/radiation related tests, pure resistive loads should be used | ||||
Insulation impedance | I/P-O/P,I/P-FG,0/P-FG:100M Ohms /500VDC /25℃/70%RH | |
Leakage current | ≤2.5MA/AC240V | |
Withstand voltage | Input and output: 3000VAC Input and ground: 1500VAC Between output end and housing: 500VAC | |

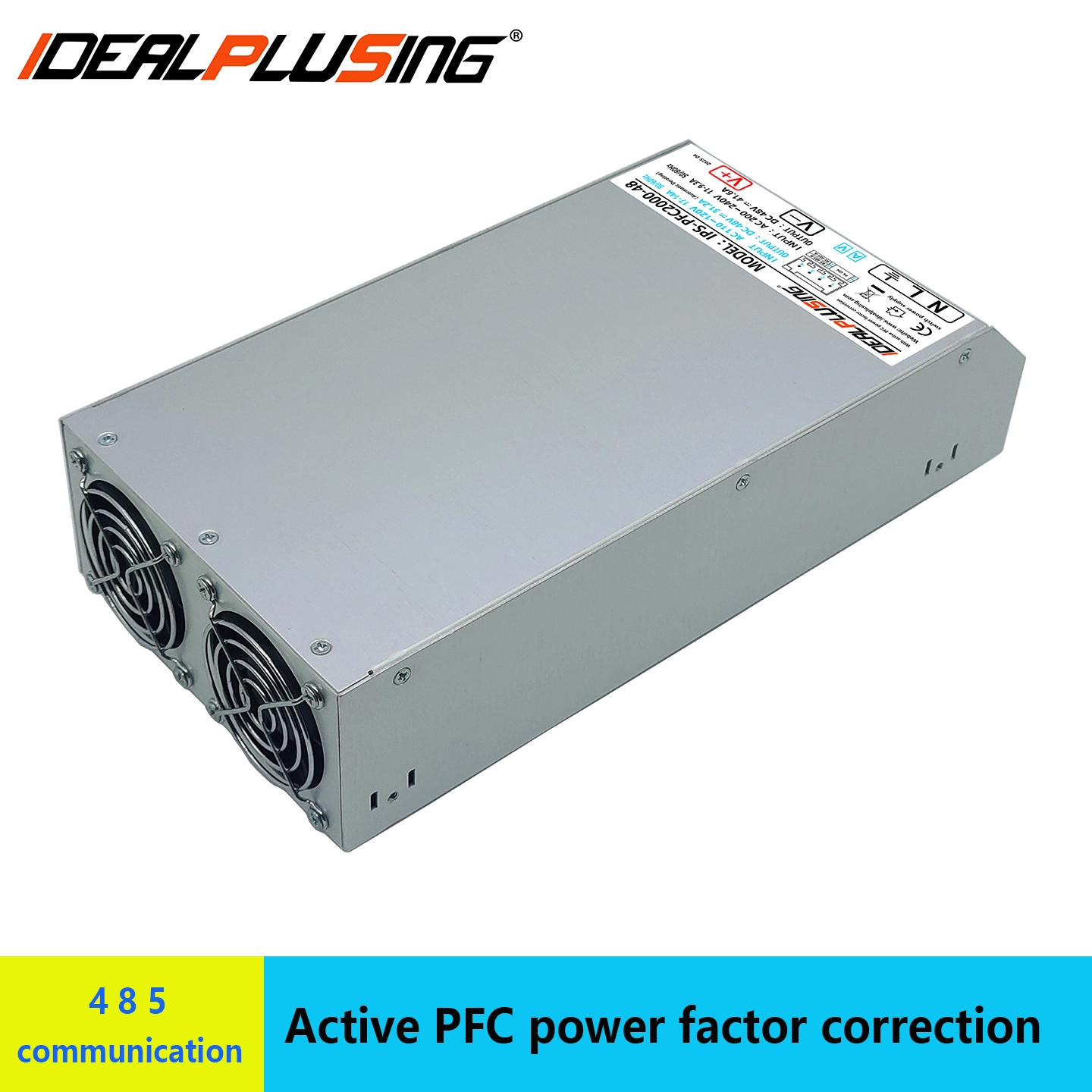

other | Heat dissipation mode | Fan heat dissipation (temperature control automatic speed regulating fan, double fan, internal air blowing mode) |
Cooling fan Noise value | In an indoor environment of around 20-25 decibels, when the two fans rotate at full speed, a measurement of around 40 decibels is made at a distance of 1 meter from the power supply | |
working temperature | -30℃ - 40℃ . Over temperature automatic load reduction, refer to the temperature load reduction curve in the following text | |
Working humidity | 20~90% RH non condensing | |
size | Length 280mm * width 140mm * height 65mm | |
weight | 2.3kg (excluding package and accessories) | |
Installation hole position | Length spacing: 228mm Width spacing: 158mm Use matching mounting brackets (can only be installed parallel, not side mounted) | |
Tips | 1. Pay attention to ventilation and heat dissipation during use. Do not install the power supply in a fully sealed box. The heat dissipation outlet of the power supply and the fan inlet cannot be blocked by objects. 2. For indoor use only. This type of power supply is not rainproof, waterproof, or dustproof, and is not suitable for outdoor use 3. Reduce output power when using AC110V low voltage power supply 4. When the altitude exceeds 2000 meters (6500 feet), the ambient temperature decreases proportionally every 5℃/1000m 5. Multiple power sources cannot be used in parallel | |
