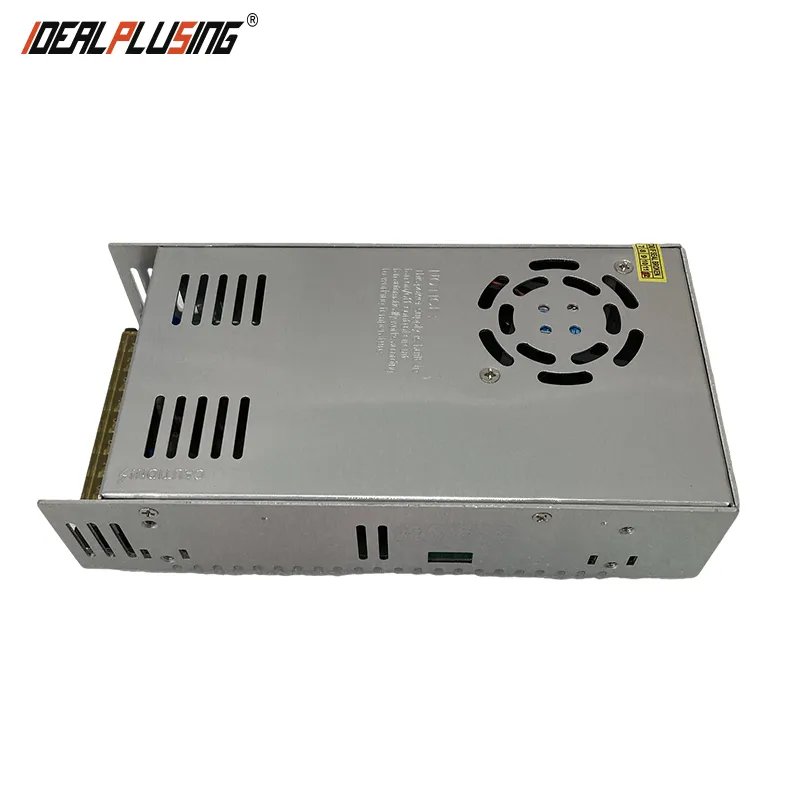

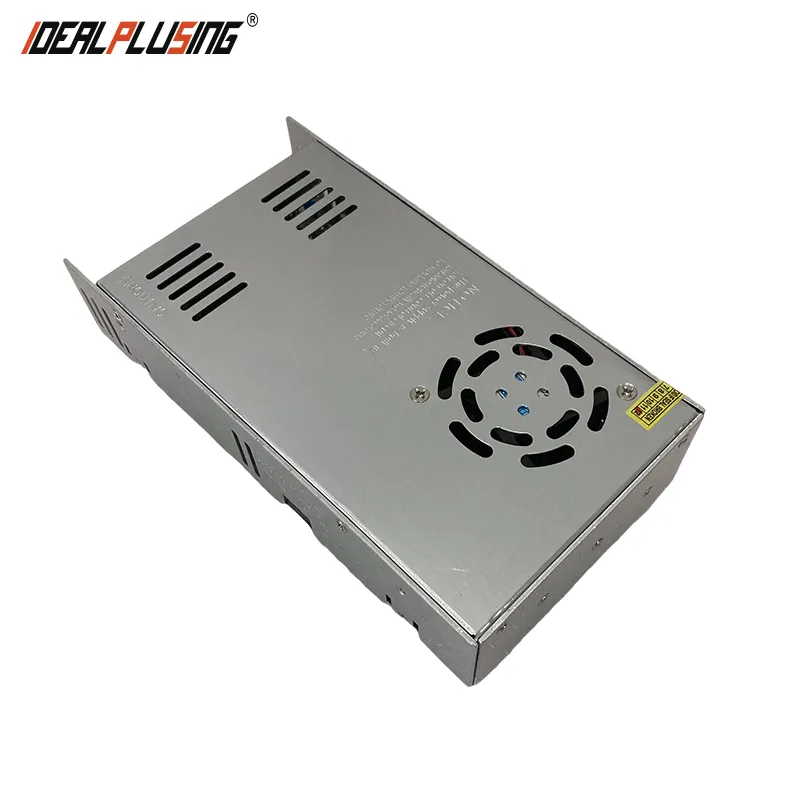

IPS-S-300-5 High power supply 300W 5V 12V 60 A constant voltage Specialized for led display with CE approval
MODEL:IPS-S-300-5 5V 60A 300W power supply SPECIFICATION: ① AC input: Single-phase 110/220V±15% 50/60hz ② DC output: 0~5VDC, 60A ③ Power: 300W ④ Dimension: 214*113*49MM ⑤Package size: 23(L)*15(W)*7H)CM ⑥NW: 0.8KG, GW: 0.1KG Wechat ID:idealplus_power Wechat Number/Whatsapp ID:+86 159 8913 2799 Email:power@idealplusing.com Office telephone number:+86-20-89282095

I. FEATURES

1

Manufacturer ac to dc 24v 20.8a 500W Factory price switching power supply for led driver

2

Adjustable with Compact size, light weight

3

Wide range AC Input , AC input 110V/220Vac input selected by switch

4

100% full load burn-in test

5

Protection: Short circuit / Over load / Over voltage

6

Fixed switching frequency at 25KHz

7

1 year warranty

8

High efficiency, reliability quality, competitive cost

9

0-5Vdc / 0-10Vdc External control output (Optional)

10

Extra adjustable potentiometer (Optional)

11

Output voltage adjustable, output current be fix

II. COMMON SPECIFICATION

Adjustable range for dc voltage

The output voltage is 100% adjustable through the potentiometer

AC input voltage range

AC 95-125V 60Hz | AC174-264VAC 50Hz Manual switch

Input current

115V/5.29A / 230V/2.64A

leakage current

≤1.5mA 230V AC

Overload protection

Load more than 110%~120% switch to constant current mode

Over-voltage protection

≥15% of output voltage

Setup rise hold time

200ms  100ms  20ms

Vibration

10-50Hz, 2G 10 minutes/cycle X, Y, Z axis each 60 minutes

Withstand voltage

Input to shell 1500V/3mA AC | Input to output 1500V/3mA AC | Input to output 500V/3mA AC

working temperature

-10℃-65℃20%-90%RH

Storage temperature

-10℃--65℃20%--95%RH

Net weight

0.9KG

Dimension

214L*113W*49H (MM)

OTHERS

Output voltage tolerance

1%

Wave and noise

150mV P-P

Efficiency

91%
