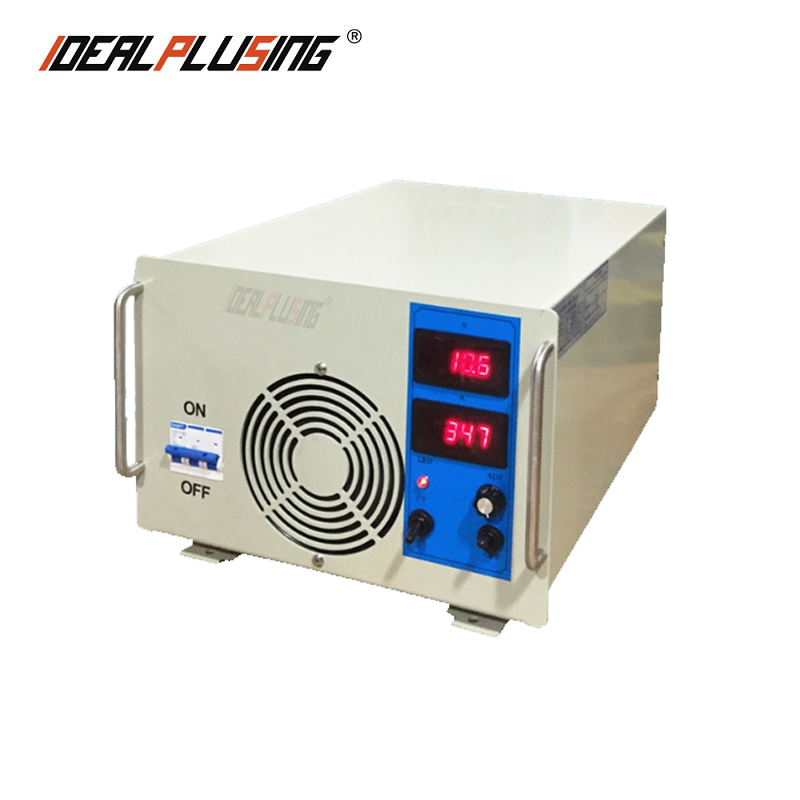

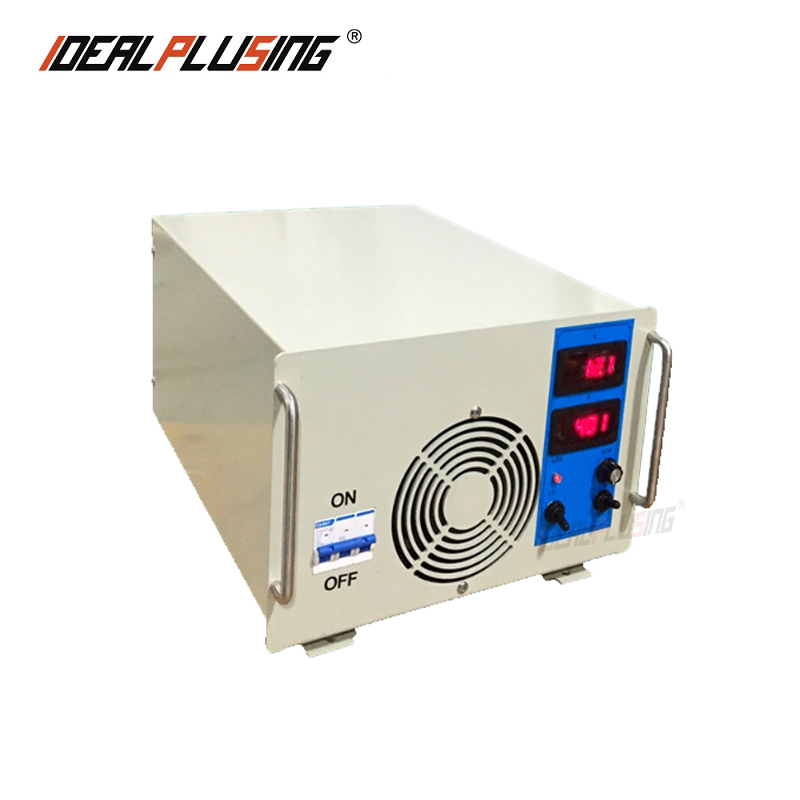

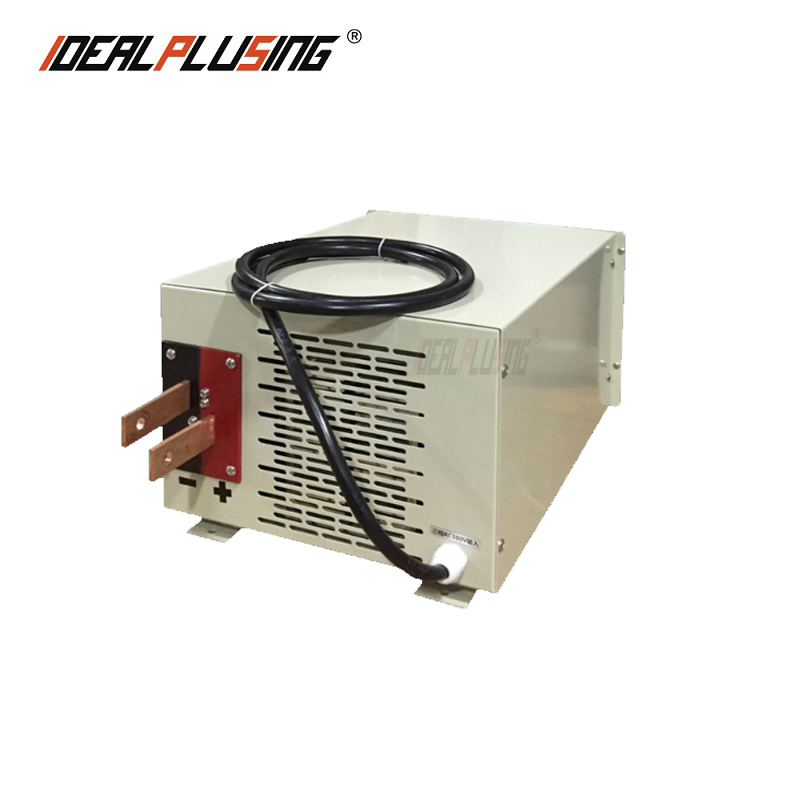

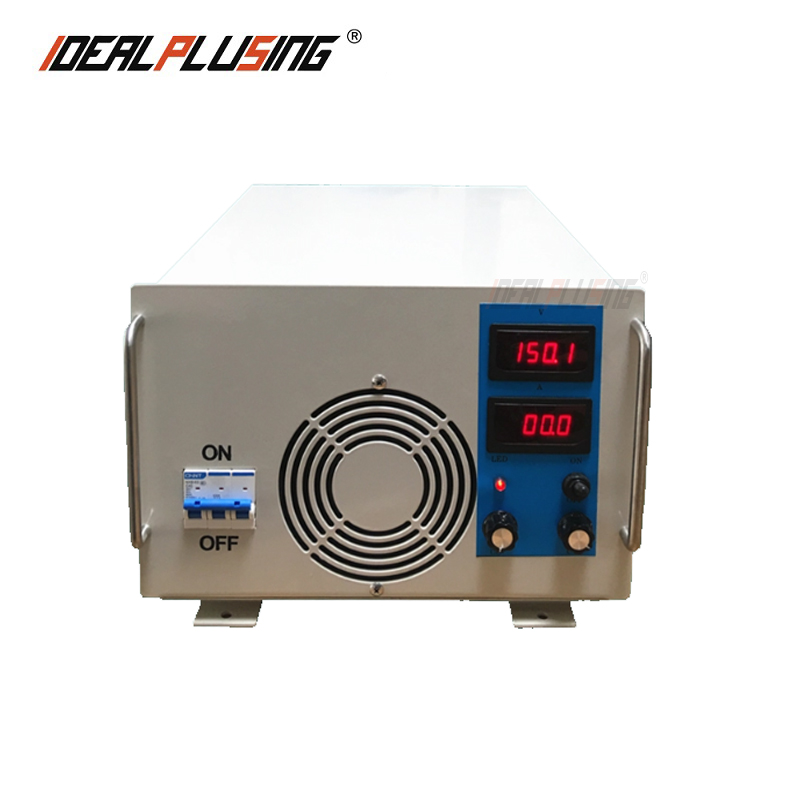

IPS-ATDH48167 0-48V 167A 8KW adjustable voltage regulator for semiconductor processing with touch screen 485
Model :IPS-ATDH48167 48VDC 167A KW AC DC Power Supply ① AC INPUT:3 phases 380VAC±15% 50/60HZ ② DC OUTPUT: 0~48VDC, 0~167A ③ Max Power: 8KW ④ Size of machine: L630*W480*H220 MM ⑤ NW: 48KG, GW: 66KG ⑥ Communication port: RS485*1 ⑦ Adjust method: Touch screen ⑧ Protection:Lack phase, Over-heating,Over-voltage,Over-current,Short-circuit ⑨ Suitable application: Testing for Surge protective devices Wechat ID:idealplus_power Wechat Number/Whatsapp ID:+86 159 8913 2799 Email:power@idealplusing.com Office telephone number:+86-20-89282095 We specialize in customizing DC power supply to meet your specific requirements. With customized input and output voltage and current, our offerings range from 0V to 2000KV DC and 0A to 2000A. We provide AC-DC solutions for the motor category or electrical appliances testing or Lab testing, electrochemistry, electrolysis, electroplating, and anodizing. Please visit our website and submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour. Thank you for considering our services.

I. INTRODUCTION

    The adjustable power supply adopts high frequency switching power technology. it is controlled by high performance microcomputer. The voltage and current can be adjusted independently.

    The adjustable power supply widely used in industrial control and electronic products aging and testing. It is suitable for all kinds Resistance load, capacitive load, inductive load

II. CUSTOMIZED RANGE

1 Phase: AC220V/120V±15%,50Hz/60Hz

3 Phase: AC380V±15%,50Hz/60Hz

3 Phase: AC450V±15%,50Hz/60Hz

1~10000V,Stabilizer voltage value. 1% to 100% adjustable

1~5000A,Constant current value. 1% to 100% adjustable

Adjustable mode: Keystroke type / Knob type / Touch screen optional

III. TECHNICAL PARAMETER

Brand

IPS-ATDH48375

AC INPUT

3 phases 380VAC±15% 50/60HZ

DC OUTPUT VOLTAGE

0~48VDC

OUTPUT CURRENT

0~167A

Output characteristic

Constant voltage and constant current switchable

Output power

8KW

Voltage output accuracy

0.5%FS

Current output accuracy

0.5%FS

Source effect

≤0.2%FS

Load effect

≤0.2%FS

Voltage Display resolution

0.1V

Current Display resolution

0.1A

ripple factor(Vrms)

≤2% FS

Operating characteristics

Support (24*7) long time

Work Efficiency

>90%

Power factor

>93%

Adjustment accuracy

<0.1%

Protection mode

Lack phase

Over-heating

Over-voltage

Over-current

Short-circuit

Output indicator

LED digital voltage and current display

Cooling fan

Force cooling

Ambient temperature

-10~+40 degree

Insulation strength

Input-output; Input-chassis; AC200V, 10mA, 1min

Insulation resistance

Input-output; Input-chassis; Output-chassis: > 20m

Insulation grade

B

Waterproof Level

IP20

Protect Level

IP20(Instructions for ordering protective levels for equipment in special environments)

Machine Dimension

L630*W480*H220(MM)

Package Dimension

L730*W580*H250(MM)

NW/GW

48KG/55KG

Application

Testing aging of electronic and electrical products, testing of new energy vehicles, scientific research institutions or school laboratories and experiments, etc.

Special Function Customization

Time control function, ampere hour meter function, intelligent temperature control function. Intelligent computer touch screen display operation interface. RS-485,PLC or RS232 communication port , LC Filtering function
