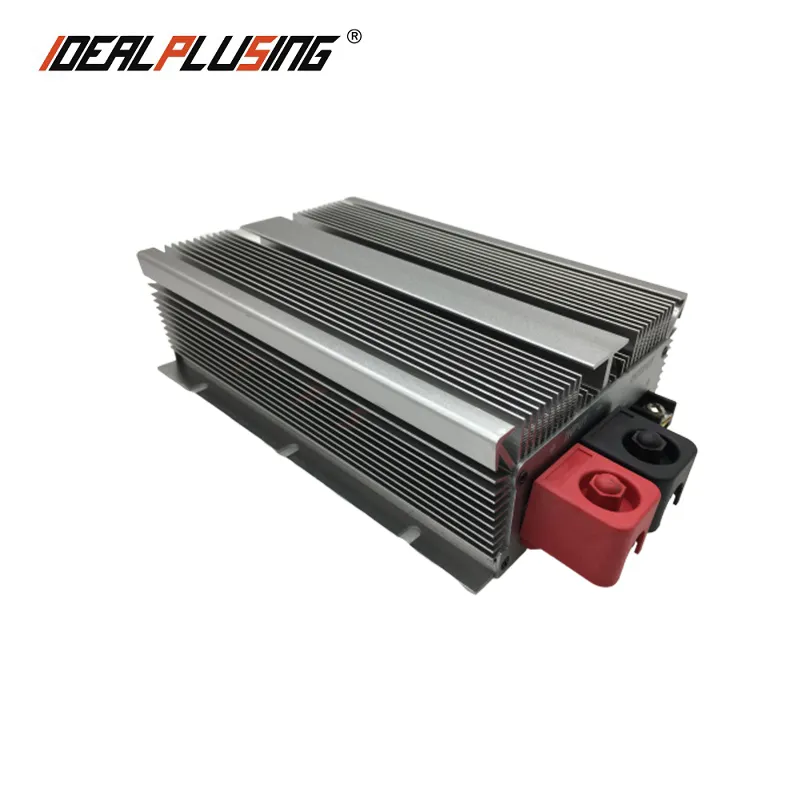

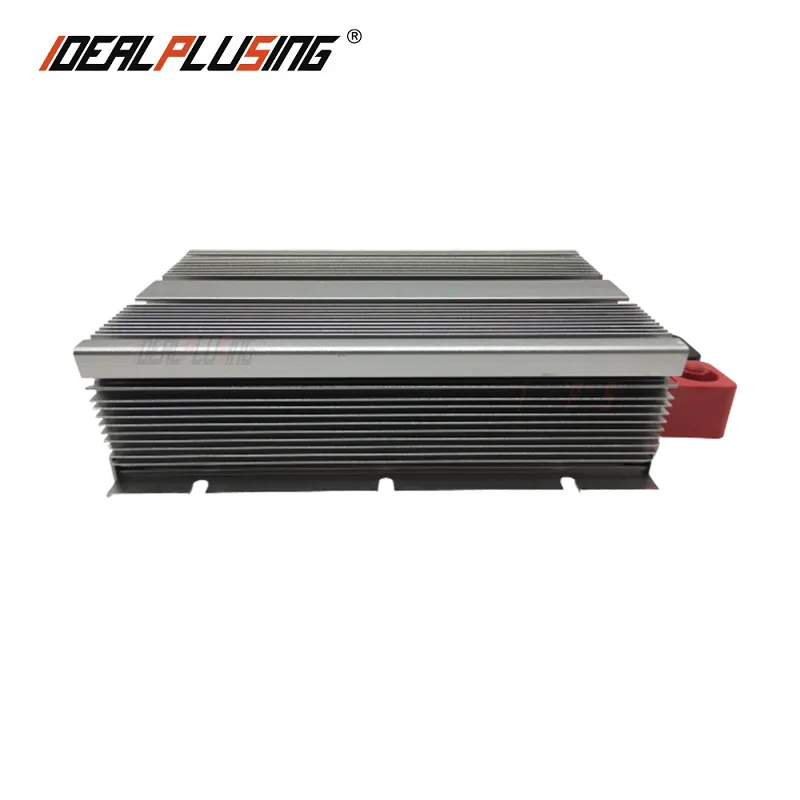

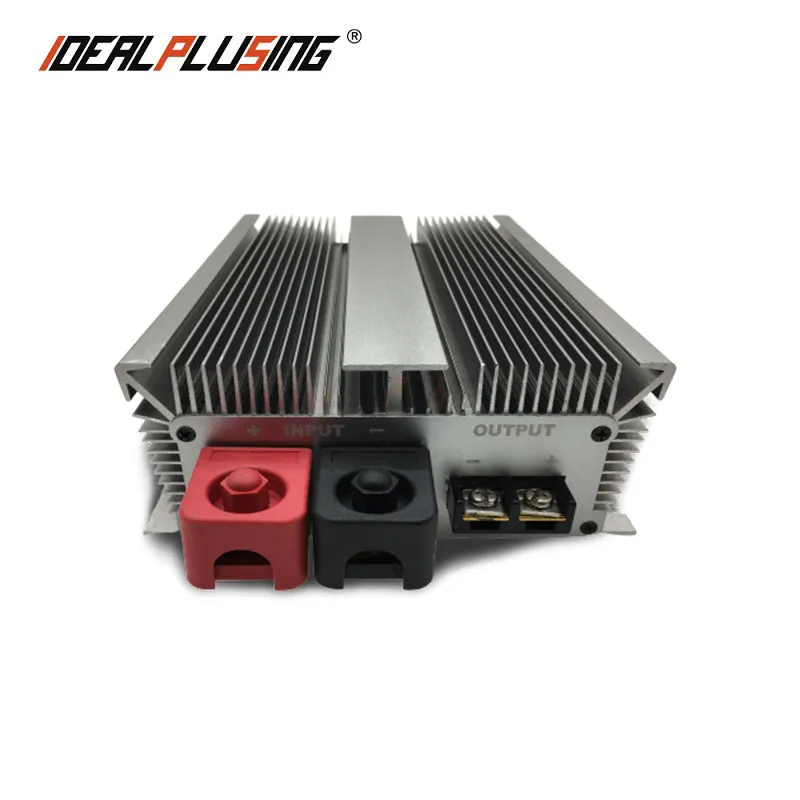

IPS-DTD12S14.580 12V to 14.5V 80A 870W 9-32VDC DC DC Converter DC-DC Converter for Embedded System
① Model：IPS-DTD12S14.580
② Input Voltage:12VDC(9-32VDC）
③ Output Voltage: 14.5VDC
④ Output Current: 80A
⑤ Max Power: 870W
⑥ Size : 220*156*65mm
⑦ NW: 4.5KG
⑧ Material of Shell : Aluminum
⑨ Design: Non-Isolate and Waterproof IP65
Wechat Number/Whatsapp ID: +86-18928830209
Email: info@idealplusing.com
Office telephone number:+86-20-89282095
Brand | IDEALPLUSING |
Type | Non-Isolate |
Model | IPS-DTD12S14.580 |
INPUT | |
Rate Volts | 12VDC |
Volts range | 9-32VDC |
OUTPUT | |
Efficiency | 92% |
Output volts | 14.5VDC |
Output current | 80A |
Rated Power | 870W |
OTHERS | |
Voltage regulation | < 1% |
Load regulation | < 2% |
Ripple | < 50mV |
No-load current | < 20mA |
Working Temp | -40°c ~ +80°c |
Waterproof rating | IP65 |
Machine size | 220*156*65mm |
NW | 4.5KG |
Cooling way | Free Air Convection |
Certifications | CE, RoHS |
Customize | Support |
Sample order | Support |
OEM & ODM | Support |
Package | White & Colorful Package Optional |
