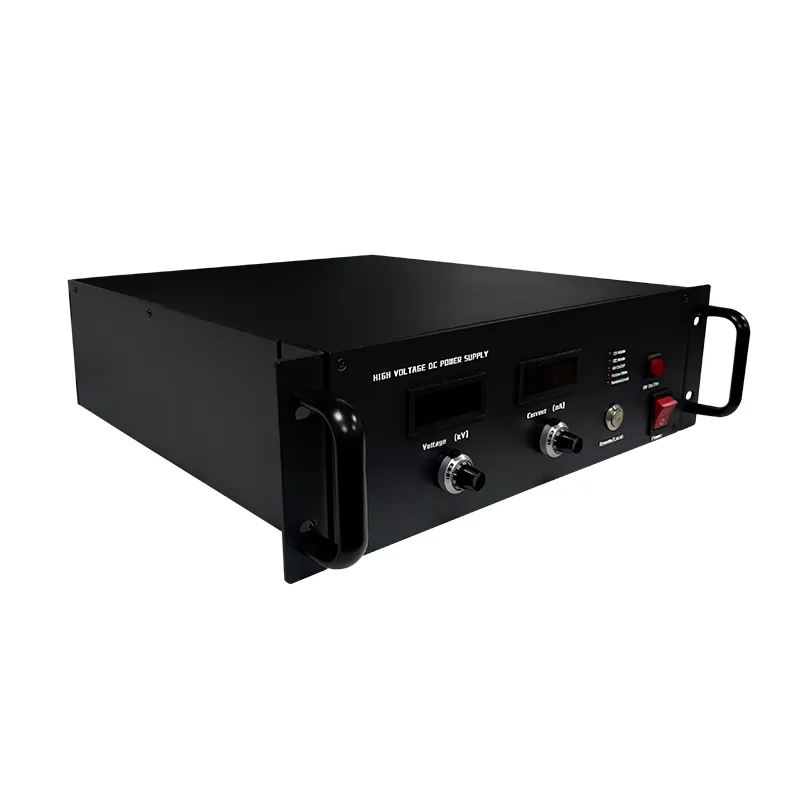

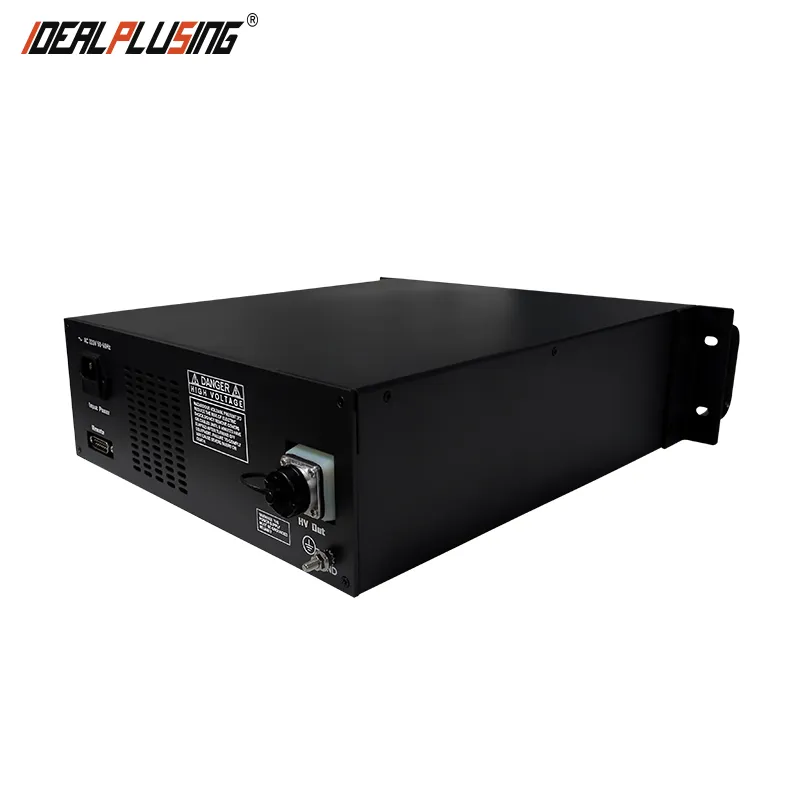

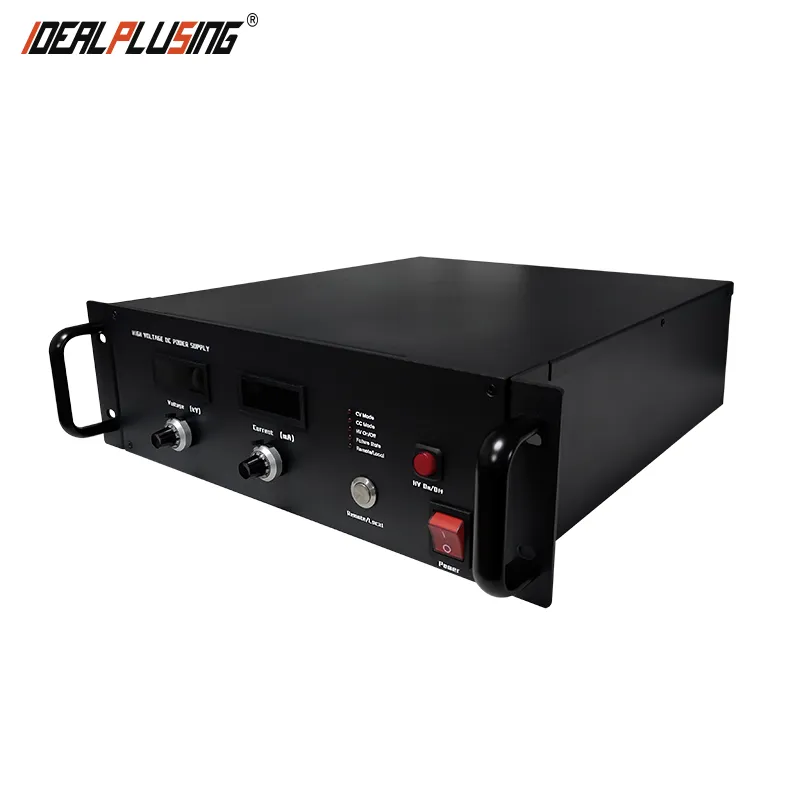

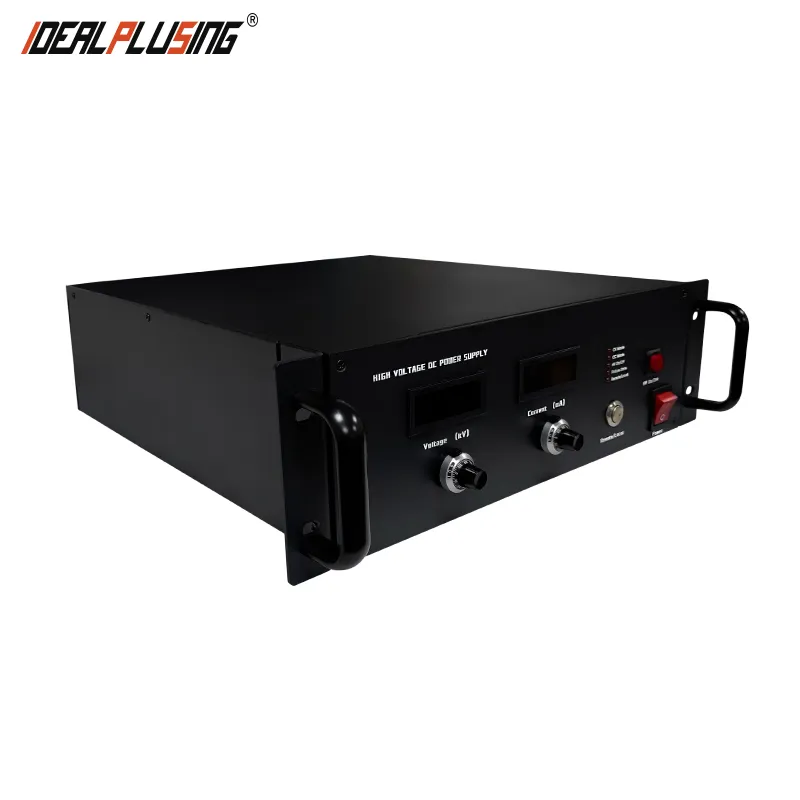

IPS-ATDJ5KV-60mA 60mA high voltage power supply 5kv 300W ac to dc adjustable variable power supply for melt blown cloth to add static electricity
Model Information - IPS-ATDJ5KV-60mA ① AC Input : Single phase 220VAC±10% 50/60HZ ② DC Output voltage: 0~+5KV or 0~-5KV ③ DC Output current: 60mA ④ Max power: 300W ⑤ Cooling method: Cooling fan ⑥ Input plug: Customized base on clients ⑦ Output wire: 1.5 meters (Customized) ⑧ External control: 0-10VDC signal ⑨ RS485/232 communication port: (Optional) Notes: Positive or negative high voltage optional

IPS-ATDJ5KV-60mA 5KV 60mA 300W HV DC Power Supply


【Electrostatic spinning equipment, electrostatic flocking, electrostatic spraying, electrostatic sorter, melt blown cloth to increase filtering efficiency, melt blown cloth to add static electricity, super capacitor charging】

I. INTRODUCTION & APPLICATION

1

HV series are high voltage DC power supplies, available from 10kV to 200kV output.

2

Output control can be switched between Remote control and Local control. Output displays and output indicators are direct on the front panels and can lead to the external remote display screen.

3

The high-voltage output terminal has over-current, over-current, short-circuit protection, and arc protection.

4

The HV series high voltage power supply is widely used in electrostatic applications, such as Electrostatic dust removal, Electrostatic spinning, Electrostatic electret, Electrostatic separation, Electrostatic spraying, and Electrostatic flocking.

5

The HV series high voltage power supply can also be used in High voltage insulation tests, Material sorting, Metal vaporization, High voltage deburring, and Laboratory test.

6

Meltblown cloth electrostatic electret equipment

7

Electrostatic Spinning

8

Electrostatic Dust Removal

9

Capacitor Charge

10

Discharge

11

Cable Aging Test

12

Cable Leakage Test

13

Optical Fiber Withstand Voltage Test

14

Etc

II. PRODUCT FEATURES

1

Output voltage full range adjustable

2

High voltage Positive output +10kV to +200kV

3

High voltage Negative output -10kV to -200kV

4

4 digits LED display for voltage and current

5

Low EMI, strong anti-interference ability

6

OVP, OCP, ARC, and short circuit protections

III. OPTIONAL INTERFACE

1

Remote ON/OFF control

2

0-10V analog control for voltage and current output

3

RS485, support Modbus-RTU commands

4

RS232, support Modbus-RTU commands



IV. INPUT VOLTAGE

Rate Voltage

Single phase 220VAC

Range voltage

220VAC±10%

Frequency

50/60HZ

V. OUTPUT

Brand

IDEALPLUSING

Model

IPS-ATDJ5KV-60mA

Rated Voltage

5KVDC(Full range adjustable)

Rated Current

0-60mA(Full range adjustable) (except 1mA models)

Line Regulation

CV≤0.1%FS

Load Regulation

CV≤0.1%FS

Ripple & Noise

≤0.5% FS

High Voltage stability

≤0.1% per hour after warm-up for one hour

Temperature co-efficiency

100ppm/°C

VI. DISPLAY

 Meter

4 digits LED display for voltage and current

Display Resolution

Voltage

0.01kV / 0.1kV

Current

0.001mA / 0.01mA

Display Accuracy

Voltage

≤0.1%FS+2LSB

Current

≤0.1%FS+2LSB

VII. PROTECTION

Over Voltage Protection (O.V.P.)

Built-in OVP protection with limit of 105% rated output voltage.
     The output will be shut down when OVP is activated.

Over Current Protection (O.C.P.)

Built-in OCP protection with limit of 105% rated output voltage.
     The output will be shut down when OCP is activated.

Over Temperature Protection (O.T.P.)

Built-in OTP protection with heat sink temperature limit of 65°C±5°C
     The output will be shut down when OTP is activated.

Short Circuit Protection

The output will be shut down when short circuit protection is activated.

VIII. GENERAL

Dimension of HV power supply

376L*367W*110H(MM)

Net Weight/Gross Weight

23KG/29KG(Carton box/Wooden carton box package)

Cooling method

Cooling fan

Operating environment

0°C~40°C, 10%~80%RH

Storage environment

-20°C~70°C, 10%~90%RH



IX. HIGH-VOLTAGE OUTPUT CABLE (TWO KINDS ARE OPTIONAL)

1

Self-contained high voltage cable without shielding. Standard high-voltage cable length is 1.5 meters, other lengths are optional.

2

High-voltage cable with shielding. Standard high-voltage cable length is 1.5 meters, other lengths are optional.
