Three-phase voltage regulators and single-phase voltage regulators are common power voltage stabilization devices. They are both used to stabilize power supply and keep voltage within a safe range, thereby protecting the normal operation of electrical equipment. However, there are some differences between them. The following will introduce the definition, working principle, advantages and scope of application of three-phase voltage regulators and single-phase voltage regulators in detail.
Definition and working principle of three-phase voltage regulator

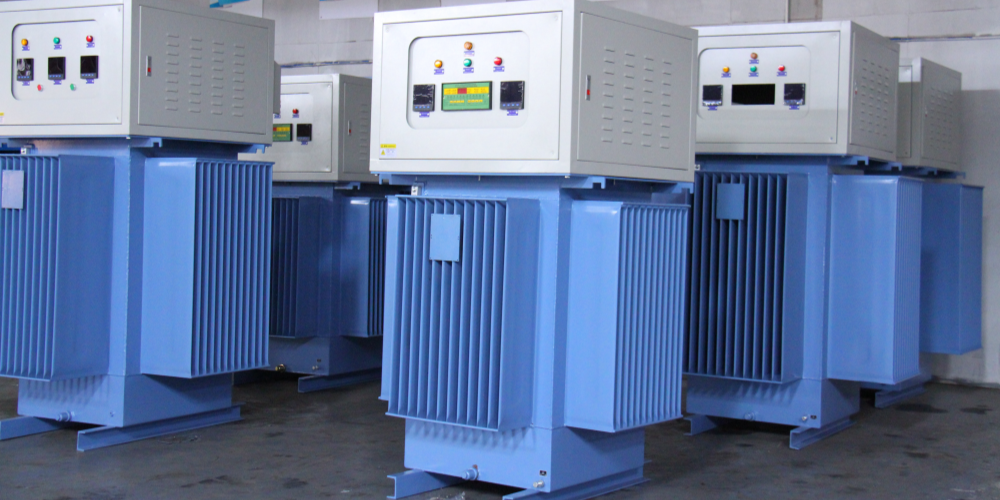

Three-phase voltage regulator is a device used to stabilize three-phase AC voltage. It consists of a voltage stabilizing transformer and a voltage stabilizing control circuit. The voltage stabilizing transformer adjusts the input three-phase voltage to the required output voltage, and the voltage stabilizing control circuit adjusts the working state of the voltage stabilizing transformer by monitoring the difference between the actual output voltage and the set voltage, thereby achieving the purpose of stabilizing the output voltage.
The working principle of the three-phase voltage regulator is based on automatic voltage regulation and voltage stabilization technology. When the input voltage fluctuates, the voltage stabilizing control circuit adjusts the transformation ratio of the voltage stabilizing transformer according to the actual situation to maintain the stability of the output voltage.
Definition and working principle of single-phase voltage regulator
A single-phase voltage regulator is a device used to stabilize single-phase AC voltage. It is similar to a three-phase voltage regulator and is also composed of a voltage regulator transformer and a voltage regulator control circuit. The voltage regulator transformer adjusts the input single-phase voltage to the required output voltage. The voltage regulator control circuit adjusts the working state of the voltage regulator transformer by monitoring the difference between the actual output voltage and the set voltage, thereby achieving the purpose of stabilizing the output voltage.
The working principle of the single-phase voltage regulator is also based on automatic voltage regulation and voltage stabilization technology. When the input voltage fluctuates, the voltage regulator control circuit adjusts the transformation ratio of the voltage regulator transformer according to the actual situation to maintain the stability of the output voltage.
Can a three-phase voltage regulator be connected to a single-phase power supply
A three-phase voltage regulator can be connected to a single-phase power supply, but reasonable power distribution needs to be carried out according to the actual situation. In actual applications, if a three-phase voltage regulatorneeds to be connected to a single-phase power supply, the following two methods can be adopted
Use one phase of a three-phase voltage regulator
Connect the input port of the three-phase voltage regulator to the phase line in the single-phase power supply, and do not connect the other two phases, only short-circuit to ensure the normal operation of the voltage regulator.
Use three phases of a three-phase voltage regulator
Connect the input port of the three-phase voltage regulator to the phase line of the single-phase power supply, and connect the remaining two phases to the neutral port and the ground port of the input port respectively.
Regardless of which method is used, it is necessary to ensure that the input port of the voltage regulator matches the voltage of the single-phase power supply, and the connection must be strictly in accordance with the wiring diagram of the equipment to ensure the normal operation of the equipment.
Summary
Both three-phase voltage regulators and single-phase voltage regulators are designed to stabilize power supply. You need to select the appropriate device according to the actual situation and strictly follow the device's instructions for installation and maintenance. When connected to a single-phase power supply, the three-phase voltage regulator can be connected to the single-phase power supply through a reasonable power distribution method to achieve a stable power supply effect.
