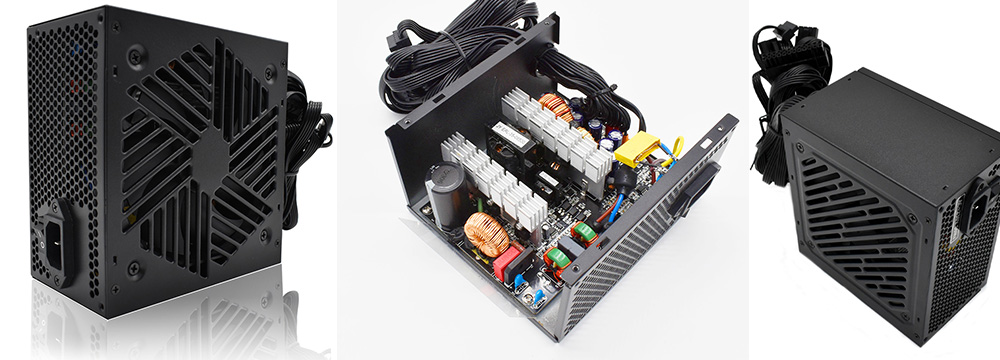

PC power supply is a device that provides power to personal computers. It is an important part of personal computers. The function of PC power supply is to convert AC power into DC power and provide stable and reliable power to various components inside the computer. The working principle of PC power supply involves multiple fields such as power electronics technology and electromagnetism. The following will introduce the relevant knowledge of PC power supply in detail.
Working principle of PC power supply
The basic working principle of PC power supply is to convert AC power into DC power. It consists of power transformer, rectifier, filter, voltage regulator and other parts. The power transformer reduces the voltage of AC power to low-voltage AC power, the rectifier converts low-voltage AC power into DC power, the filter removes the AC ripple in DC power, and the voltage regulator stabilizes the DC power at the voltage level required by the computer.
PC power supply working process
Specifically, the working process of PC power supply is as follows
1. The power transformer converts 220V AC power into AC power of about 100V. This process is called transformation.
2. The rectifier converts AC power of about 100V into pulsating DC power. This process is called rectification.
3. The filter removes AC ripple in pulsating DC power. This process is called filtering.
4. The voltage stabilizer stabilizes the filtered DC power at the voltage level required by the computer. This process is called voltage stabilization.
The output voltage and current of a PC power supply are important indicators of its performance. Generally speaking, the output voltage of a PC power supply is 3.3V, 5V, 12V, etc., and the output current depends on the power consumption of the computer. When choosing a PC power supply, you should choose it according to the power consumption of the computer and the output parameters of the power supply to ensure that the computer can run stably.
The conversion efficiency of a PC power supply is also an important indicator of its performance. The higher the conversion efficiency, the lower the energy consumption of the PC power supply when converting electricity, and the more energy-saving it is. Generally speaking, the conversion efficiency of a PC power supply should be above 80%.
Precautions for PC power supplies
When using a PC power supply, you need to pay attention to the following matters:
1. Safety tips: Do not use a PC power supply in a humid or high temperature environment, and avoid contact with metal parts to avoid the risk of electric shock.
2. Maintenance: Regularly clean the dust and impurities inside the power supply to maintain a good heat dissipation environment for the power supply. At the same time, do not disassemble and replace the components inside the power supply at will to avoid damage or safety hazards.
3. Reasonable configuration: When choosing a PC power supply, you should choose according to the power consumption of the computer and the output parameters of the power supply to ensure that the computer can run stably. At the same time, do not overload the power supply to avoid damage or safety hazards.
4. Stability: When using a PC power supply, you should pay attention to maintaining the stability of the power supply. Avoid sudden power outages or unstable voltage and other situations that may cause damage to the computer and power supply or data loss.
5. Heat dissipation: PC power supplies will generate a certain amount of heat when working, so a good heat dissipation environment is very important to ensure the performance and stability of the power supply. During use, air circulation should be maintained to avoid damage to the power supply in a high temperature environment.
6. Lightning protection: When using a computer in thunderstorm weather, you should pay attention to lightning protection measures. You can place the computer near a lightning protection device or use lightning protection sockets and other measures to protect the safety of the computer and power supply.
In short, as an important part of a personal computer, the PC power supply provides stable power support for the computer. During use, you need to pay attention to safety tips, maintenance, reasonable configuration, stability, heat dissipation and lightning protection to ensure the normal operation and service life of the computer and power supply.
