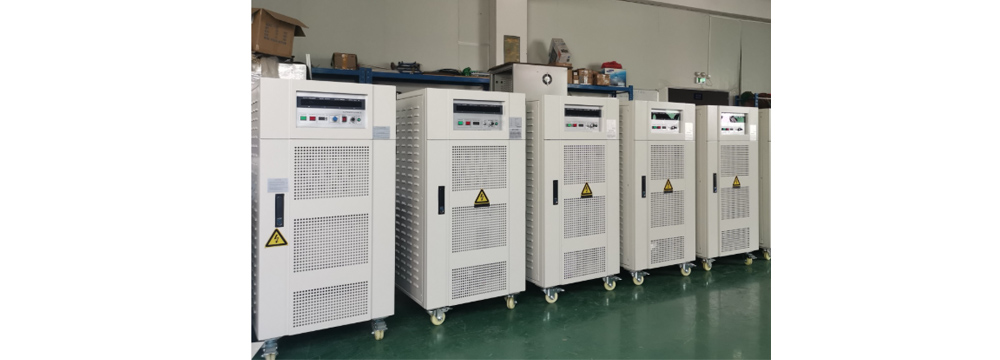

Variable frequency power supply is a power supply that can convert a smaller power output into a larger power output to meet the needs of users. Variable frequency power supply can not only simulate the output of power grid indicators in different countries, but also provide pure, reliable, low harmonic distortion, high stability of voltage and frequency sine wave power output for export electrical appliance manufacturers in design, development, production, testing and other applications.
1. Characteristics of variable frequency power supply
1.1 Good output voltage stability: Variable frequency power supply can convert a smaller power output into a larger power output, thereby stabilizing the output voltage;
1.2 Obvious energy saving effect: Variable frequency power supply can adjust the output voltage according to user needs, thereby saving energy;
1.3 High reliability: The inverter of the variable frequency power supply adopts advanced technology and has good reliability;
1.4 Convenient maintenance: The maintenance and maintenance of the variable frequency power supply is more convenient than that of the traditional power supply.
Variable frequency power supply has the advantages of obvious energy saving effect, wide speed regulation range, low noise, high reliability and simple maintenance. The variable frequency power supply is composed of many components, some of which will gradually reduce their performance and age after long-term operation, which is also the main reason for the failure of the frequency converter. In order to ensure the long-term normal operation of the equipment, the filter capacitor and the cooling fan should be replaced regularly.
2. The role of the frequency converter
As a power supply device that can realize the conversion between input voltage and output voltage and frequency, the variable frequency power supply plays an important role in modern industry, scientific research and daily life. The following is a detailed explanation of the role of the variable frequency power supply, aiming to fully analyze its versatility and importance.
2.1 Significant energy saving effect
One of the most significant functions of the variable frequency power supply is energy saving. It can automatically adjust the output voltage and frequency according to the load conditions, thereby reducing energy loss and improving energy utilization efficiency. In equipment such as fans and pumps, since the power consumption is proportional to the cube of the speed, when the external demand is not high, the speed can be reduced by frequency conversion, which can significantly reduce energy consumption. This energy-saving effect is particularly prominent in industrial production, which is of great significance for reducing enterprise operating costs and achieving green production.
2.2 High control accuracy
The variable frequency power supply can achieve precise output voltage and frequency control, which is particularly important for equipment that requires high-precision power supply. For example, in the fields of precision instruments, electronic equipment and communication equipment, the stability of voltage and frequency is extremely high. The variable frequency power supply can ensure the accuracy of the output voltage and frequency through advanced control technology, thereby ensuring the normal operation and stable performance of the equipment.
2.3 Good power supply stability
The variable frequency power supply has excellent power supply stability. It can automatically adjust the output voltage and frequency to cope with adverse factors such as grid fluctuations and load changes, ensuring that the equipment has a stable power supply. This stability is essential to protect the equipment from damage such as voltage fluctuations and current shocks, and can extend the service life of the equipment and improve system reliability.
2.4 Strong adaptability
The variable frequency power supply can adapt to different load requirements and can be widely used in various fields and equipment. Whether it is home appliance manufacturing, motor and electronic manufacturing, or IT industry, computer equipment, laboratories, etc., the variable frequency power supply can provide suitable power supply solutions. In addition, it can also simulate the grid indicators of different countries, providing convenience for power consumption detection and debugging of exported electrical products and power supply of precision instruments.
2.5 Low noise
The variable frequency power supply has stable output voltage and frequency, low noise, and will not interfere with the equipment. This is especially important for equipment that requires a low noise environment, such as medical equipment, precision instruments, etc. The low noise characteristics of the variable frequency power supply can ensure that the equipment operates in a quiet environment, improving work efficiency and stability.
2.6 Perfect protection function
The variable frequency power supply also has a variety of protection functions, such as overcurrent, overvoltage, overload protection, etc. These protection functions can cut off the power supply in time when the equipment is abnormal, preventing equipment damage and accidents. This is of great significance for ensuring equipment safety and reducing maintenance costs.
2.7 Superior starting performance
The variable frequency power supply has superior performance during the startup process. It can start at zero speed and zero voltage (or increase torque appropriately), and accelerate evenly according to user needs. This starting method can reduce the impact on mechanical parts and motors and extend the service life of the equipment. At the same time, the variable frequency power supply can also set the corresponding torque limit to protect the machinery from damage, ensure the continuity of the process and the reliability of the product.
2.8 Flexible adjustment of voltage and frequency
The variable frequency power supply can adjust the output voltage and output frequency as needed to meet the voltage and frequency requirements of different equipment. This flexibility enables the variable frequency power supply to play an important role in a variety of application scenarios. For example, in avionics and military equipment, the demand for high-frequency power is large, and the variable frequency power supply can easily meet these needs.
2.8 Promote technological innovation and industrial upgrading
With the continuous improvement of industrial automation and intelligence, the variable frequency power supply, as one of the key equipment, plays an important role in promoting technological innovation and industrial upgrading. It can not only improve production efficiency and reduce energy consumption costs, but also promote the research and development and application of new equipment, and promote the development of industry in a more efficient, green and intelligent direction.
3. Application of variable frequency power supply in industry
The variable frequency power supply is widely used in industry. It realizes the speed regulation and control of the motor by changing the power supply frequency, and has the advantages of energy saving, high efficiency and stability. The following are the specific applications of variable frequency power supply in industry:
Motor drive: In the industrial field, the variable frequency power supply can realize stepless speed regulation of the motor, improve production efficiency and reduce energy consumption. On the automated production line, the variable frequency power supply can accurately control the speed of equipment such as conveyor belts and robotic arms, making the production line run more smoothly and efficiently.
Fan pump: In the field of fan pumps, the variable frequency power supply can realize the functions of constant pressure water supply and constant flow air supply of the fan pump, and adjust the motor speed according to actual needs, thereby reducing energy consumption and improving the operation efficiency of the equipment.
Energy field: In the power generation system of renewable energy such as solar energy and wind energy, the variable frequency power supply plays an important role. In the solar power generation system, the variable frequency power supply can realize the maximum power tracking of the solar panel and improve the utilization rate of solar energy. In the wind power generation system, the variable frequency power supply can realize the variable speed control of the fan and optimize the capture efficiency of wind energy.
Power system: In the power system, the variable frequency power supply can realize the functions of reactive power compensation and harmonic control, and improve the stability and reliability of the power system.
4.Analysis of the advantages and disadvantages of variable frequency power supply
Advantages
Energy saving and high efficiency: The variable frequency power supply can adjust the speed and power output of the motor according to actual needs, thereby achieving energy saving and consumption reduction. Compared with traditional power supplies, variable frequency power supplies have significant advantages in energy saving.
Wide speed regulation range: Variable frequency power supplies can achieve stepless speed regulation of motors with a wide speed regulation range, which can meet the needs of different working conditions.
Stable operation: Variable frequency power supplies have excellent stability and reliability, which can ensure stable operation of motors under harsh working conditions.
Perfect protection function: Variable frequency power supplies are usually equipped with multiple protection functions such as overvoltage, overcurrent, short circuit, overheating, etc., which can cut off the power supply in time when the equipment fails to protect the safety of equipment and personnel.
Strong adaptability: Variable frequency power supplies can adapt to different load requirements and can be applied to different fields and equipment.
Disadvantages
High cost: Since variable frequency power supplies use advanced power electronics technology and control algorithms, their manufacturing costs are relatively high, resulting in higher market prices.
Technical complexity: The working principle and control algorithm of variable frequency power supplies are relatively complex, requiring a high level of technology and professional knowledge for maintenance and debugging.
There is a certain impact on the power grid: Although the variable frequency power supply has multiple protection functions, it may still cause certain harmonic pollution and voltage fluctuations to the power grid during use. Therefore, corresponding filtering and compensation measures need to be taken during design and use.
In summary, variable frequency power supply has a wide range of application prospects and significant energy-saving effects in industry. However, its high cost and technical complexity also limit its application in some fields. When selecting and using variable frequency power supply, it is necessary to weigh and choose according to the specific application scenarios and needs.
