In the aviation ground support system, the aircraft GPU is the core equipment that provides dedicated power for the aircraft avionics system, lighting equipment, cabin service facilities and maintenance and commissioning links after the aircraft docks on the ground and shuts down its auxiliary power unit. Aviation aircraft have far stricter standards for power supply parameters, waveform purity and operational stability than ordinary industrial power consumption. At present, the mainstream aircraft GPU in the industry is mainly divided into two types: power frequency unit type and static solid-state type. The two types of equipment are built based on different working principles, with their own advantages in performance, operation and maintenance costs and adaptation scenarios. Understanding its differences and application logic has practical reference value for equipment selection in airport operation and maintenance, aviation maintenance institutions and general aviation bases. Brands such as IDEALPLUSING in the industry are also deeply engaged in the technical optimization of the two types of equipment to adapt to the power supply needs of different scenarios.
Working Principle and Basic Characteristics of Power Frequency Unit Aircraft GPU
The power frequency unit aircraft GPU is a traditional mechanical rotating power supply equipment. It relies on a motor to drive the intermediate frequency generator set to operate, and generates 115/200V 400Hz intermediate frequency AC or 28V DC suitable for aircraft through mechanical rotation cutting magnetic induction lines. This kind of equipment retains the mechanical structure of traditional power generation equipment, including many moving parts such as rotor, stator, bearing and carbon brush, and the overall structure tends to be mechatronics design.
In terms of operational characteristics, the power frequency unit aircraft GPU has a rough structure and high tolerance to the external power supply environment. It does not need to rely on high-precision power regulation modules, and can maintain basic power supply even in areas with large grid voltage fluctuations. However, limited by mechanical operation, its power conversion efficiency is at a medium level. It will produce obvious mechanical noise and vibration during operation, the smoothness of output current waveform is average, and slight voltage and frequency fluctuation are prone to occur during load switching. At the same time, due to the long-term wear of moving parts, this type of aircraft GPU requires regular maintenance operations, including replacing lubricating grease, inspecting carbon brushes, correcting mechanical dynamic balance, etc., and the long-term operation and maintenance investment is relatively high.
Working Principle and Basic Characteristics of Static Solid-State Aircraft GPU

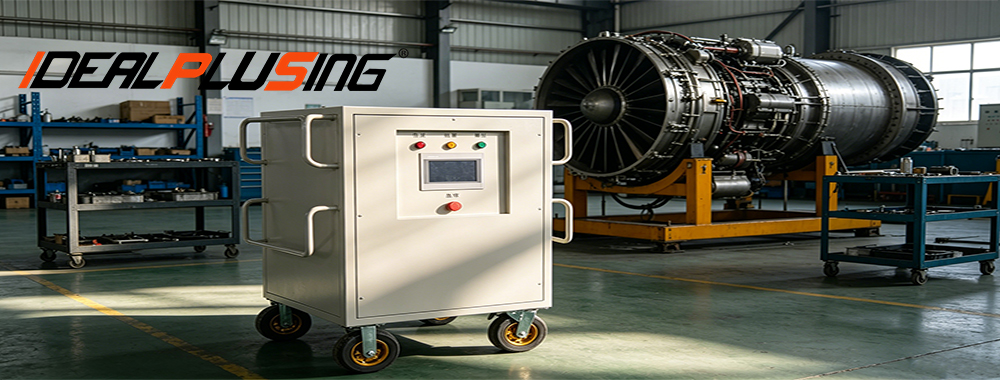

The static solid-state aircraft GPU is a new type of power supply equipment built with modern power electronic technology. It has no any mechanical rotating parts inside, and completes power conversion entirely relying on solid-state electronic devices. The working process is to connect to the conventional power frequency municipal power supply of the airport, first convert the alternating current into direct current through the rectifier module, and then accurately modulate it through the high-frequency inverter unit to output 400Hz intermediate frequency power supply that meets aviation standards. The entire power supply process is completed in a static power conversion mode.
The biggest feature of static solid-state aircraft GPU is excellent power output quality, high precision of voltage and frequency control, high purity of sine waveform and extremely low harmonic interference, which can perfectly meet the power supply requirements of precision airborne avionics equipment. The overall size of the equipment is compact, the weight is lighter, there is almost no noise and vibration during operation, and the power conversion efficiency is much higher than that of the power frequency unit aircraft GPU. Thanks to the design of no moving parts, the equipment is not easy to produce physical wear, almost no complex daily maintenance is required, only regular cleaning of dust-proof parts is needed, and the stability of continuous operation is stronger, suitable for high-frequency power supply operations for a long time.
Core Comprehensive Differences Between Power Frequency Unit and Static Solid-State Aircraft GPU
In terms of structure and service life, the power frequency unit aircraft GPU relies on mechanical transmission structure, with many vulnerable parts, and its service life is restricted by the degree of wear; the static solid-state aircraft GPU adopts a fully modular electronic architecture, with strong stability of components, longer overall service life and lower failure probability.
In terms of energy consumption and user experience, the power frequency unit aircraft GPU has large energy loss and high energy consumption, and the operating noise will affect the maintenance operation environment; the static solid-state aircraft GPU has high energy utilization efficiency and outstanding energy-saving effect, and its silent operation characteristics are more in line with the environmental protection management and control requirements of modern airports.
In terms of adapting to power supply stability, the power frequency unit aircraft GPU has a slow response speed when facing sudden increase and decrease of load, with obvious voltage fluctuation; the static solid-state aircraft GPU has an instantaneous load response capability, which can quickly adapt to the power consumption changes of aircraft under different working conditions, and will not impact the airborne precision circuit.
Practical Application Scenario Division of Two Types of Aircraft GPU
Application Scenarios of Power Frequency Unit Aircraft GPU
This type of aircraft GPU is more suitable for small general aviation airports with limited budgets, field temporary aprons and simple aviation stations in remote areas. Such scenarios often have imperfect supporting power grids and unstable power supply, and have low requirements for noise and energy consumption. The advantages of power frequency unit aircraft GPU such as durability and strong adaptability can be fully exerted. At the same time, in the replacement of old airport equipment and temporary support tasks of short-haul regional airports, the power frequency unit aircraft GPU still retains a certain application space due to its mature technology and low procurement cost. It is also commonly used for simple ground power supply and starting operations of small general aviation aircraft and helicopters.
Application Scenarios of Static Solid-State Aircraft GPU
Modern large hub airports, fixed power supply points of jet bridges, professional aviation maintenance hangars and MRO maintenance centers are the main application fields of static solid-state aircraft GPU. Such scenarios have strict requirements on power supply quality, environmental protection and noise reduction, and long-term equipment stability. The commissioning of precision avionics equipment and the pre-flight and post-flight support of wide-body passenger aircraft all require stable and pure power support. In addition, green airport construction, UAV test bases, aviation scientific research laboratories and other places generally choose static solid-state aircraft GPU. Its characteristics of intelligent regulation, remote operation and maintenance, and low energy consumption and maintenance-free can meet the development trend of intelligent aviation support.
Industry Development Trends
With the upgrading of the aviation industry in the direction of intelligence and greening, the standard of airport ground power supply continues to improve. Static solid-state aircraft GPU has become the mainstream upgrading direction in the industry relying on its performance and operation and maintenance advantages. The power frequency unit aircraft GPU will not be completely eliminated, and will continue to play a role in segmented scenarios such as niche general aviation, field support and low-cost stations. In the future, the two types of aircraft GPU will form a complementary pattern, reasonably matched according to the budget, working conditions and environmental protection requirements of different sites. Technical manufacturers will continue to optimize equipment compatibility, so that aircraft GPU can better adapt to the ground power supply needs of all types of aircraft.
