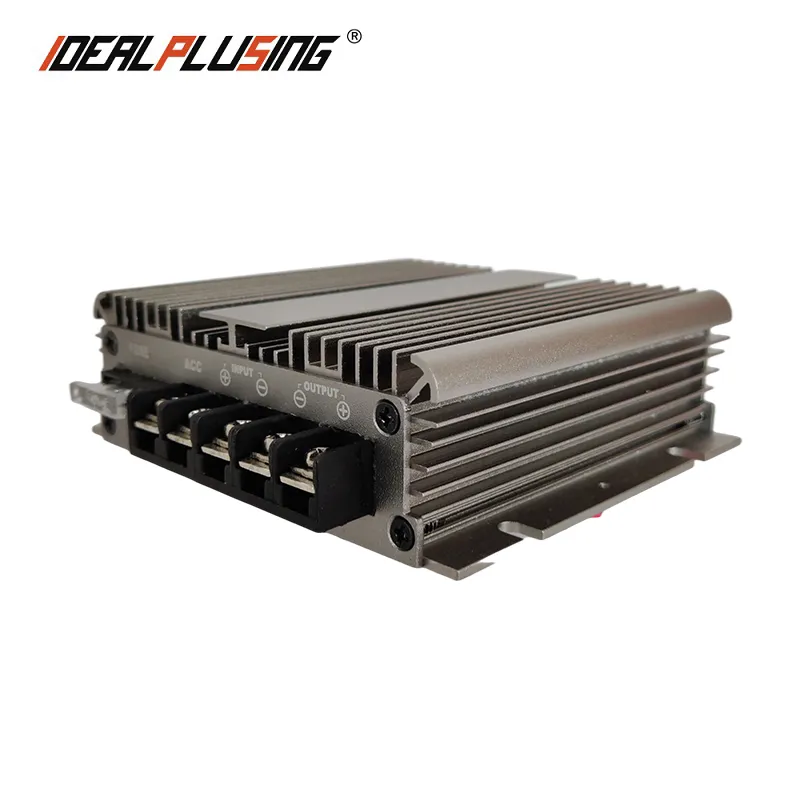

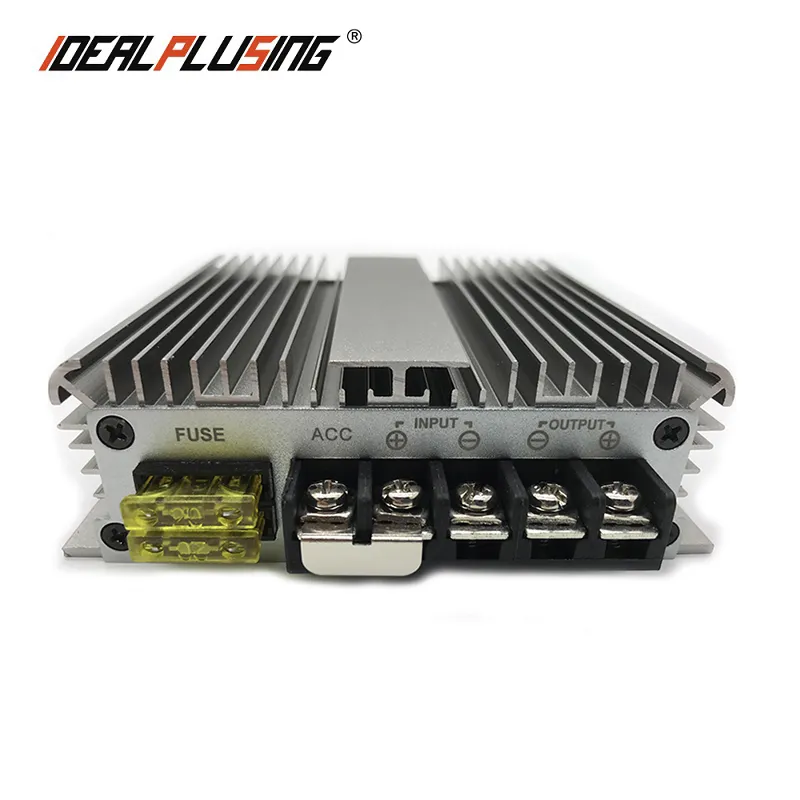

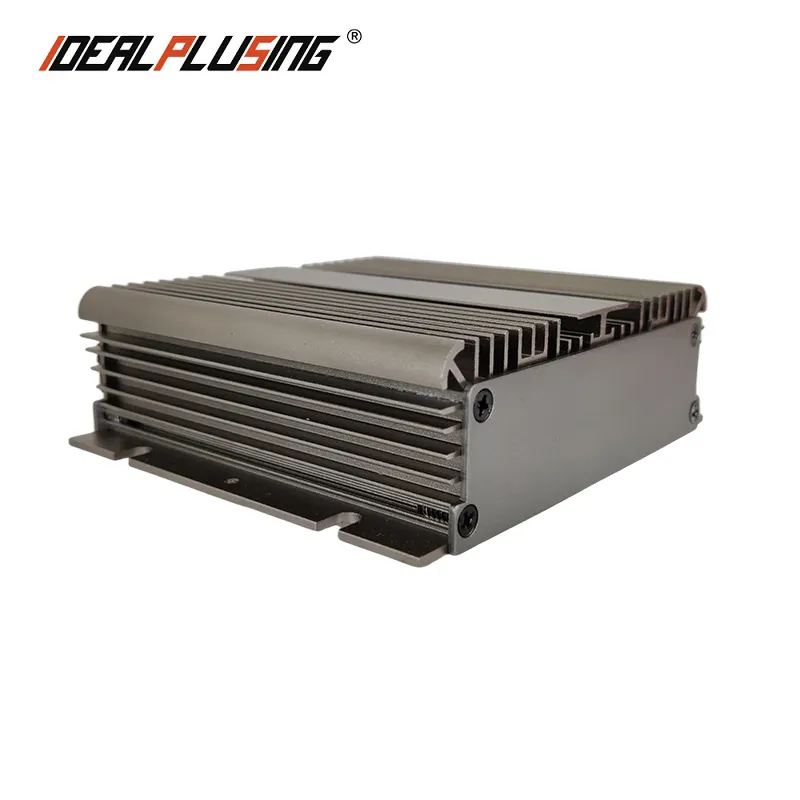

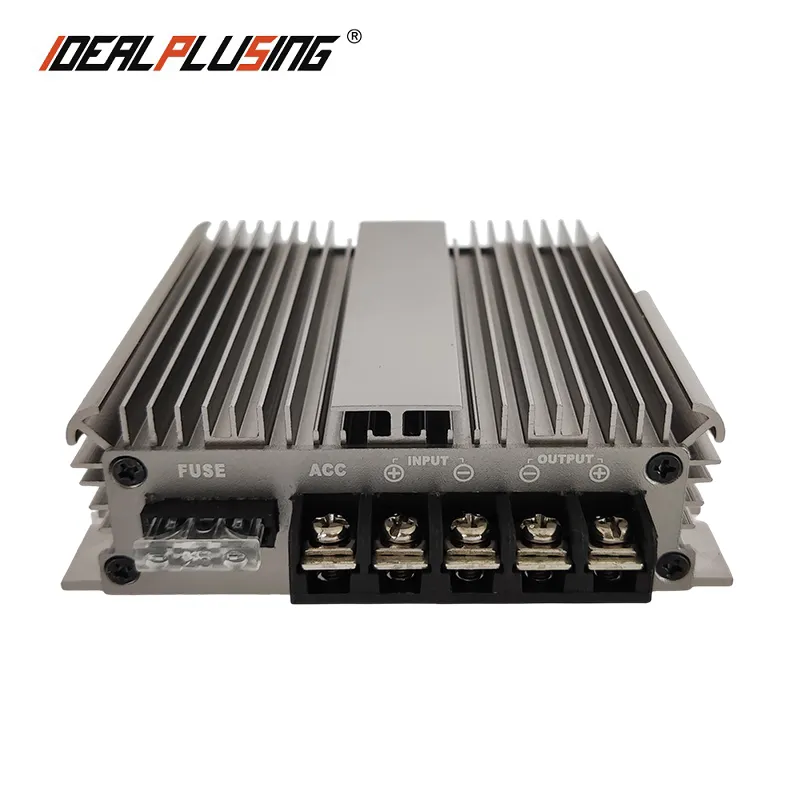

IPS-DTD12S4810 10V 18V 20V to 28V 10A 20A 480W IP67 Waterproof Power Supply Buck Boost Transformer
IPS-DTD12S4810 10V 18V 20V to 28V 10A 20A 480W IP67 Waterproof Power Supply Buck Boost Transformer
Model : IPS-DTD12S4810
Specification :
① Input: 12VDC（10-16VDC）
② Output: 48VDC 10A
③ Max power: 480W
④ Material of shell: Aluminum
⑤ Size: 100*113*35MM
⑥ Input & Output cable: 13~15CM
⑦ NW: 700G, GW:900G
⑧ Design: Non isolate and waterproof IP65
We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 10000VDC and 1A to 1000A.
We provide both isolated and non-isolated converter design options. Please visit our website and submit any inquiries to explore our capabilities further.
Datasheet： Download
Brand | IDEALPLUSING |
Name | IPS-DTD12S4810 10V 18V 20V to 28V 10A 20A 480W IP67 Waterproof Power Supply Buck Boost Transformer |
Type | Non-Isolate |
Model (IPS-***) | IPS-DTD12S4810 |
INPUT | |
Rate Volts | 12VDC |
Volts range | 10-16VDC |
OUTPUT | |
Efficiency | 92% |
Output volts | 48VDC |
Output current | 10A |
Rated Power | 480W |
OTHERS | |
Voltage regulation | < 1% |
Load regulation | < 2% |
Ripple | < 50mV |
No-load current | < 20mA |
Working Temp | -40°c ~ +80°c |
Waterproof rating | IP65 |
Machine size | 100*113*35(MM) |
NW | 700G |
Cooling way | Free air convection |
Certifications | CE, RoHS |
Customize | Support |
Sample order | Support |
OEM & ODM | Support |
Package | White & colorful package optional |
