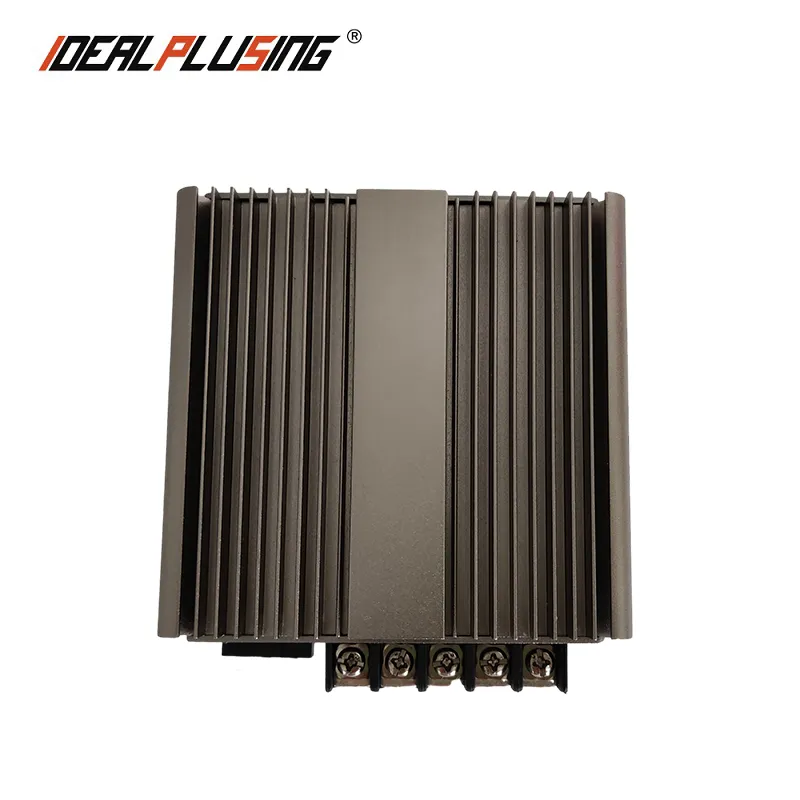

IPS-DTD24S722 15V 24V 30V to 72V 2A 144W DC to DC Step Up Converter
IPS-DTD24S722 15V 24V 30V to 72V 2A 144W DC to DC Step Up Converter
Model : IPS-DTD24S722
Specification :
① Input: 24VDC（15-30VDC）
② Output: 72VDC 2A
③ Max power: 144W

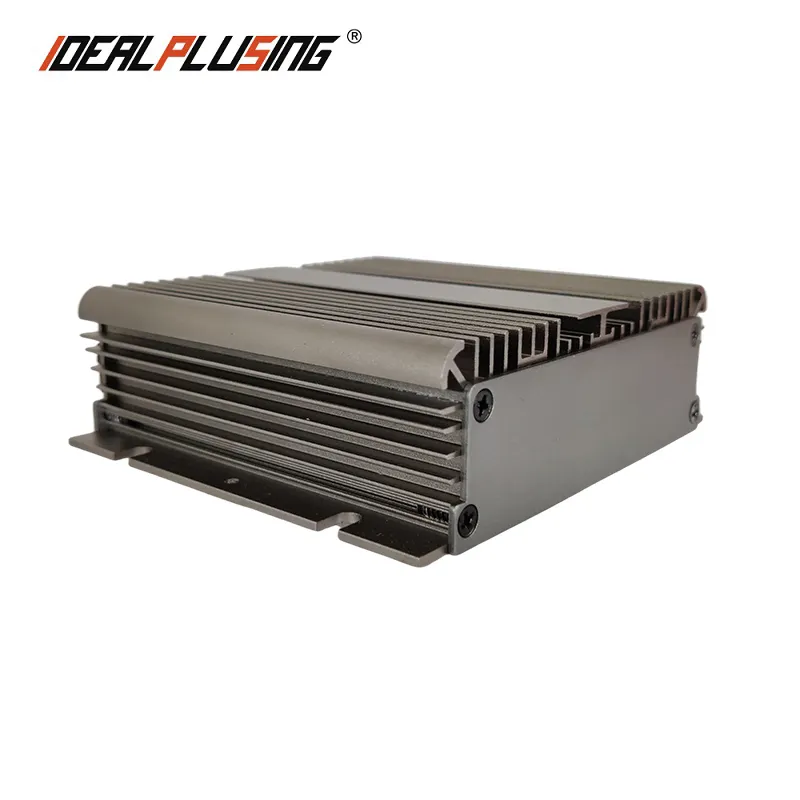

④ Material of shell: Aluminum
⑤ Size: 100*113*35MM

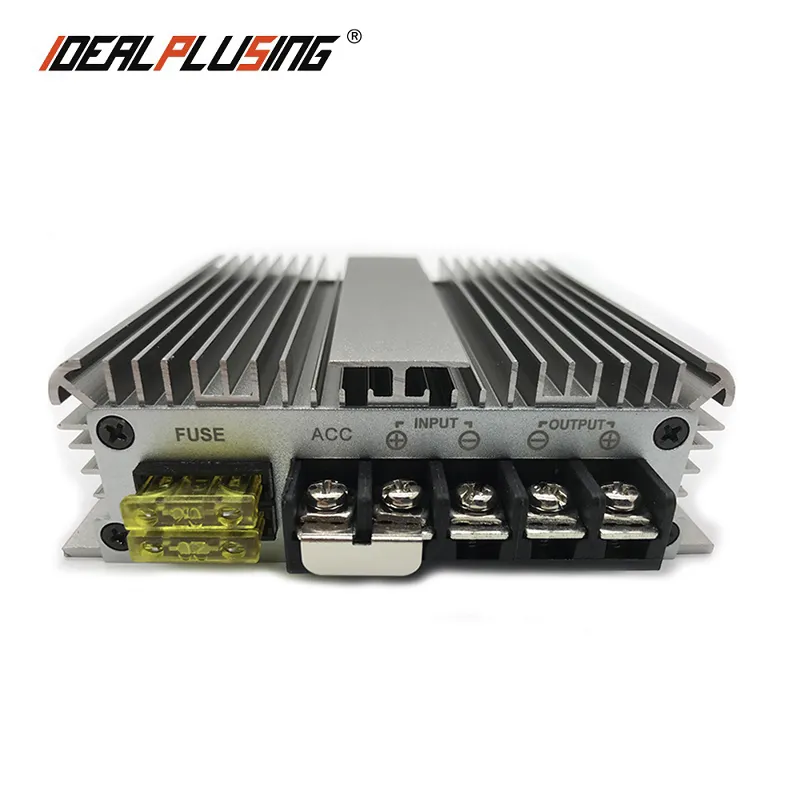

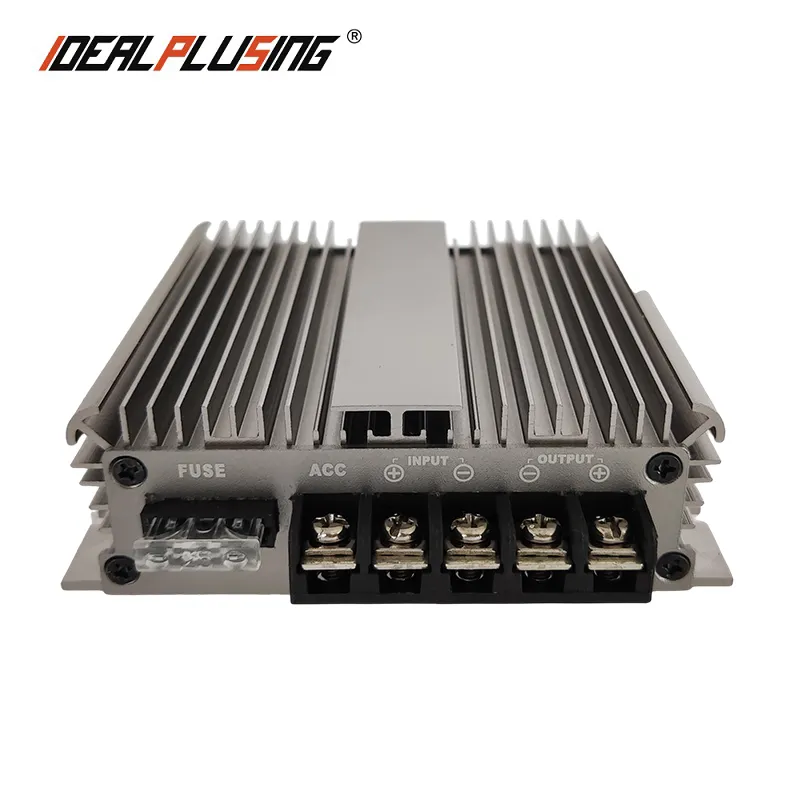

⑥ Input & Output: Terminal Block
⑦ NW: 700G, GW:900G
⑧ Design: Non isolate and waterproof IP65
We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 10000VDC and 1A to 1000A.
We provide both isolated and non-isolated converter design options. Please visit our website and submit any inquiries to explore our capabilities further.
Datasheet： Download
Brand | IDEALPLUSING |
Name | IPS-DTD24S722 15V 24V 30V to 72V 2A 144W DC to DC Step Up Converter |
Type | Non-Isolate |
Model (IPS-***) | IPS-DTD24S722 |
INPUT | |
Rate Volts | 24VDC |
Volts range | 15-30VDC |
OUTPUT | |
Efficiency | 92% |
Output volts | 72VDC |
Output current | 2A |
Rated Power | 144W |
OTHERS | |
Voltage regulation | < 1% |
Load regulation | < 2% |
Ripple | < 50mV |
No-load current | < 20mA |
Working Temp | -40°c ~ +80°c |
Waterproof rating | IP65 |
Machine size | 100*113*35(MM) |
NW | 700G |
Cooling way | Free air convection |
Certifications | CE, RoHS |
Customize | Support |
Sample order | Support |
OEM & ODM | Support |
Package | White & colorful package optional |
