IPS-DH-8321 50V 100V 150V 10A 20A 30A 50A 60A 300W High Performance DC Electronic Load Tester, High Speed Electronic Load

① Model：IPS-DH-8321 ② AC INPUT: Single Phase 90-260VAC 50/60Hz ③ Output Voltage: 0-150VDC ④ Max Output Current: 0-60A ⑤ MAX POWER: 300W ⑥ Size: 215×88×315(MM) ⑦ Shell: Removable Protective Cover ⑧ Communication: RS232 (SCPI Protocol) ⑨ Control Mode: Local + Remote ⑩ Protection: OV/OC/OT/Short Circuit Wechat Number/Whatsapp ID: +86-18928830209 Email: info@idealplusing.com Office telephone number:+86-20-89282095

Datasheet： Download

AC Input	Single Phase 90-260VAC 50/60Hz
Model	IPS-DH-8321
Output Voltage	0-150VDC
Output Current	0-60A
Output Power	300W
Operating Modes	CC/CV/CP/CR four basic modes, LED simulation, dynamic load, short-circuit simulation.
Measurement Functions	Voltage/current peak/valley detection, ripple measurement (up to 20MHz), OCP test, timing measurement.
Full Remote Control	Complete RS-232 (SCPI protocol) support for remote parameter setting, status reading, trigger control.

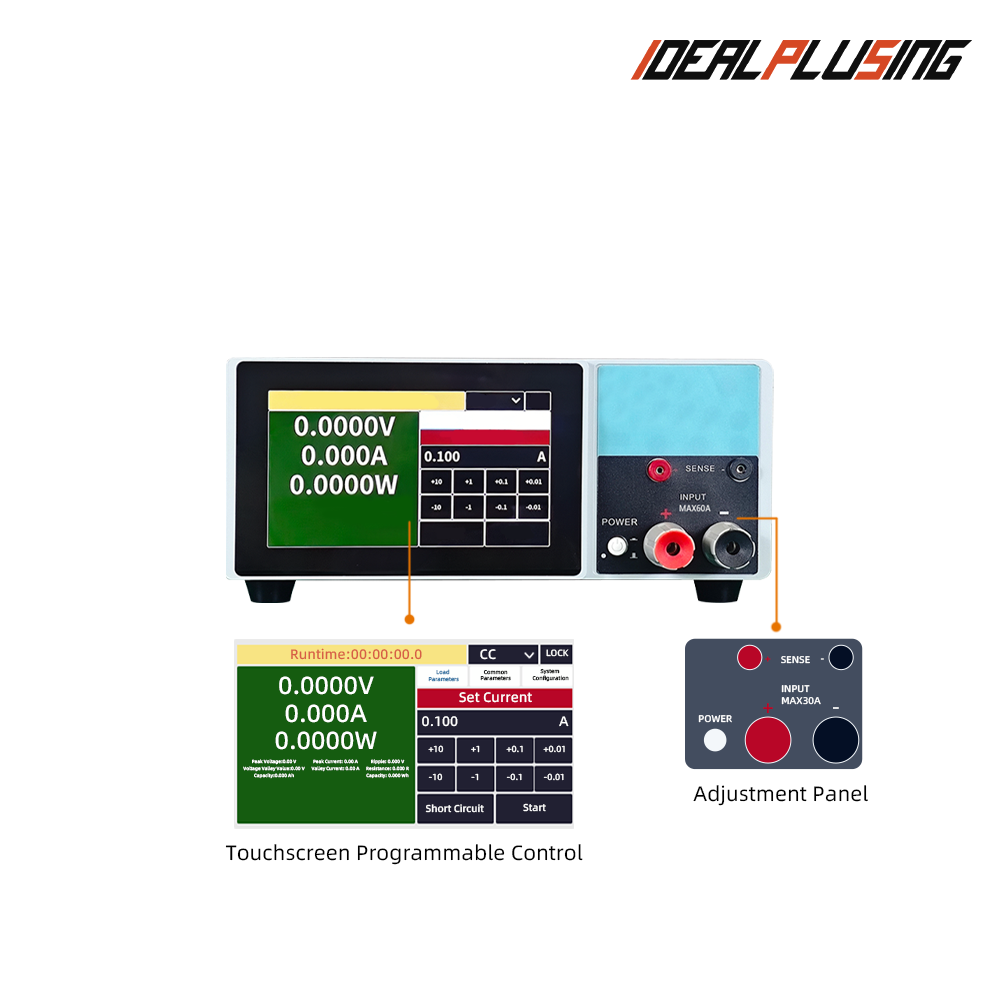

Display & Operation	5-inch high-brightness wide-view touchscreen graphic dot-matrix display.
Display & Operation	Operation: Touch control + knob adjustment (with VLOCK function).

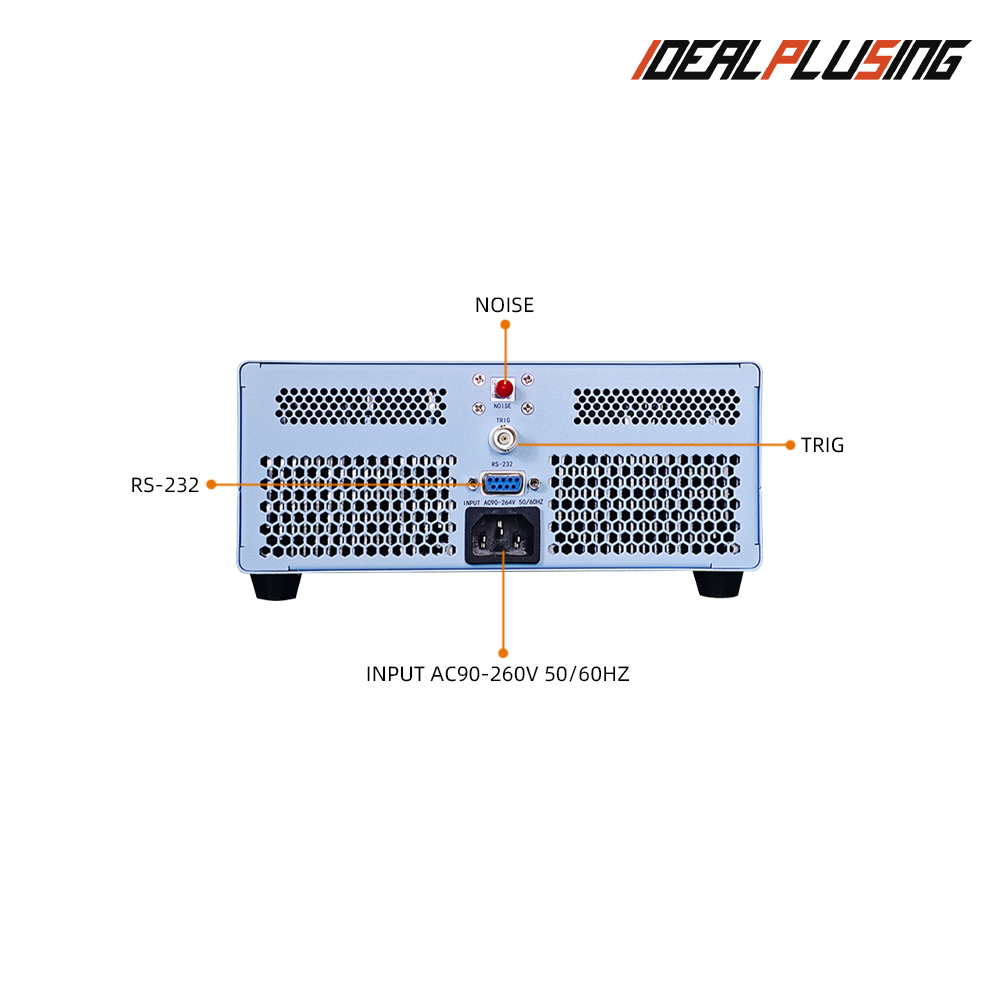

Communication	RS-232 (SCPI protocol) Standard SCPI protocol, isolated external trigger input.
Protection	OVP / OCP / OPP / OTP, full electrical isolation protection
Cooling	Intelligent fan cooling system

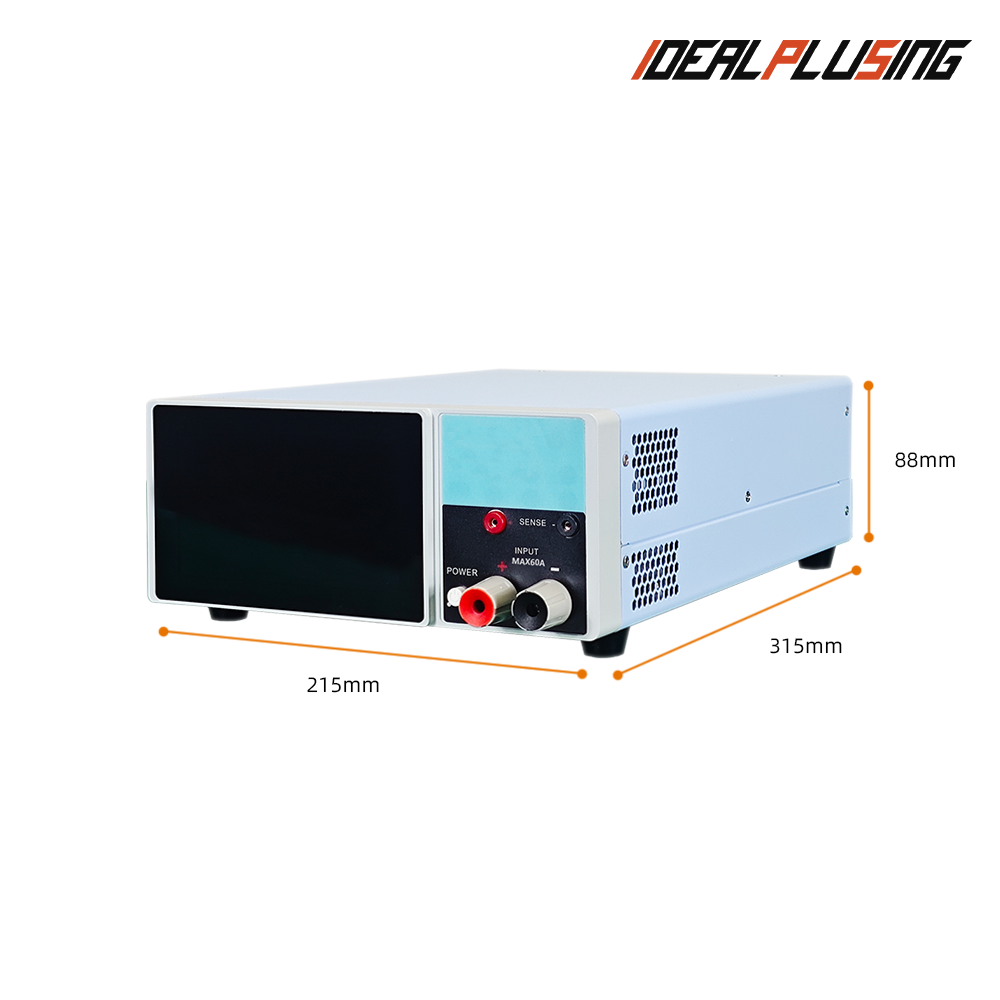

Dimensions (HWL)	215 * 88* 315 mm
Environment	Op: 0℃~40℃, 10%~85% RH St: -20℃~70℃, 10%~90% RH
Notes	1. All electrical parameters are typical values at room temperature; actual performance varies with load and environment. 2. Dynamic mode up to 50kHz, ripple measurement bandwidth up to 20MHz. 3. Remote sensing compensation, Von/Voff functions are supported for high-precision test scenarios.

Model		IPS-DH-8311		IPS-DH-8321		IPS-DH-8331		IPS-DH-8341
Rated Input	Power	150W		300W		600W		1200W
	Voltage	0~15VDC	0~150VDC	0~15VDC	0~150VDC	0~15VDC	0~150VDC	0~15VDC	0~150VDC
	Current	0~3A	0~30A	0~6A	0~60A	0~12A	0~120A	0~24A	0~240A
	Vmin	1VDC@30A		1VDC@60A		1VDC@120A		1VDC@240A
CC Mode	Range	0~3A	0~30A	0~6A	0~60A	0~12A	0~120A	0~24A	0~240A
	Resolution	0.5mA	1mA	0.5mA	1mA	1mA	10mA	1mA	10mA
	Accuracy	0.05% + 0.05% FS
CV Mode	Range	0~15VDC	0~150VDC	0~15VDC	0~150VDC	0~15VDC	0~150VDC	0~15VDC	0~150VDC
	Resolution	0.5mV	3mV	0.8mV	8mV	1mV	10mV	1.3mV	13mV
	Accuracy	0.03% + 0.05% FS
CP Mode	Range	150W		300W		600W		1200W
	Resolution	16Bits
	Accuracy	0.1% + 0.1% FS
CR Mode	Range	0.05Ω~50KΩ		0.05Ω~50KΩ		0.05Ω~50KΩ		0.05Ω~50KΩ
	Resolution	16Bits
	Accuracy	(0.1 + 0.01R)%		(0.1 + 0.01R)%		(0.1 + 0.02R)%		(0.1 + 0.02R)%
LED Mode	Bandwidth	100kHz and above
	RdCR	0.001~1
Dynamic Operation Mode	Range	10uS~50S
	Resolution	2uS
	Accuracy	1uS+20PPM
	Slew Rate	0.6A/mS~3A/uS		0.6A/mS~3A/uS		1.2A/mS~3A/uS		1.2A/mS~3A/uS
Voltage Measurement	Range	0~15VDC	0~150VDC	0~15VDC	0~150VDC	0~15VDC	0~150VDC	0~15VDC	0~150VDC
	Resolution	0.1mV	1mV	0.1mV	1mV	0.1mV	1mV	0.1mV	1mV
	Accuracy	0.02% + 0.05% FS
Current Measurement	Range	0~3A	0~30A	0~6A	0~60A	0~12A	0~120A	0~24A	0~240A
	Resolution	0.1mV	1mV	0.1mV	2mV	0.2mV	2mV	0.2mV	2mV
	Accuracy	0.03% + 0.05% FS
Ripple Measurement	Range	0~150VDC
	Resolution	10Hz~20MHz
	Accuracy	1mV

Single-channel	IPS-DH-8311	150VDC30A	150W	W215 × H88 × L315 mm
	IPS-DH-8321	150VDC60A	300W	W215 × H88 × L315 mm
	IPS-DH-8331	150VDC120A	600W	W215 × H88 × L315 mm
	IPS-DH-8341	150VDC240A	1200W	W425 × H88 × L315 mm
	IPS-DH-8311M	600VDC15A	150W	W215 × H88 × L315 mm
	IPS-DH-8321M	600VDC30A	300W	W215 × H88 × L315 mm
	IPS-DH-8331M	600VDC60A	600W	W215 × H88 × L315 mm
	IPS-DH-8341M	600VDC120A	1200W	W425 × H88 × L315 mm
	IPS-DH-8311H	1200VDC6A	150W	W215 × H88 × L315 mm
	IPS-DH-8321H	1200VDC15A	300W	W215 × H88 × L315 mm
	IPS-DH-8331H	1200VDC30A	600W	W215 × H88 × L315 mm
	IPS-DH-8341H	1200VDC60A	1200W	W425 × H88 × L315 mm
	IPS-DH-8501	150VDC240A	1800W	W425 × H88 × L480 mm
	IPS-DH-8502	150VDC240A	2400W	W425 × H88 × L480 mm
	IPS-DH-8503	150VDC300A	3000W	W425 × H88 × L480 mm
	IPS-DH-8504	150VDC300A	3600W	W425 × H176 × L480 mm
	IPS-DH-8505	150VDC300A	4200W	W425 × H176 × L480 mm
	IPS-DH-8506	150VDC300A	4800W	W425 × H176 × L480 mm
	IPS-DH-8501M	600VDC120A	1800W	W425 × H88 × L480 mm
	IPS-DH-8502M	600VDC120A	2400W	W425 × H88 × L480 mm
	IPS-DH-8503M	600VDC150A	3000W	W425 × H176 × L480 mm
	IPS-DH-8504M	600VDC150A	3600W	W425 × H176 × L480 mm
	IPS-DH-8505M	600VDC150A	4200W	W425 × H176 × L480 mm
	IPS-DH-8506M	600VDC150A	4800W	W425 × H176 × L480 mm
	IPS-DH-8501H	1200VDC15A	1800W	W425 × H88 × L480 mm
	IPS-DH-8502H	1200VDC15A	2400W	W425 × H88 × L480 mm
	IPS-DH-8503H	1200VDC30A	3000W	W425 × H176 × L480 mm
	IPS-DH-8504H	1200VDC30A	3600W	W425 × H176 × L480 mm
	IPS-DH-8505H	1200VDC30A	4200W	W425 × H176 × L480 mm
	IPS-DH-8506H	1200VDC30A	4800W	W425 × H176 × L480 mm
Multi-channel	IPS-DH-8312	150VDC30A	2*150W	W215 × H88 × L315 mm
	IPS-DH-8322	150VDC60A	2*300W	W215 × H88 × L315 mm
	IPS-DH-8314	150VDC30A	4*150W	W215 × H88 × L315 mm
	IPS-DH-8318	150VDC30A	8*150W	W425 × H88 × L365 mm
	IPS-DH-8324	150VDC60A	4*300W	W425 × H88 × L365 mm
	IPS-DH-8332	150VDC120A	2*600W	W425 × H88 × L365 mm
	IPS-DH-8312M	600VDC15A	2*150W	W215 × H88 × L315 mm
	IPS-DH-8322M	600VDC30A	2*300W	W215 × H88 × L315 mm
	IPS-DH-8314M	600VDC15A	4*150W	W215 × H88 × L315 mm
	IPS-DH-8318M	600VDC15A	8*150W	W425 × H88 × L365 mm
	IPS-DH-8324M	600VDC30A	4*300W	W425 × H88 × L365 mm
	IPS-DH-8332M	600VDC60A	2*600W	W425 × H88 × L365 mm
	IPS-DH-8312H	1200VDC6A	2*150W	W215 × H88 × L315 mm
	IPS-DH-8322H	1200VDC15A	2*300W	W215 × H88 × L315 mm
	IPS-DH-8314H	1200VDC6A	4*150W	W215 × H88 × L315 mm
	IPS-DH-8318H	1200VDC6A	8*150W	W425 × H88 × L365 mm
	IPS-DH-8324H	1200VDC15A	4*300W	W425 × H88 × L365 mm
	IPS-DH-8332H	1200VDC30A	2*600W	W425 × H88 × L365 mm

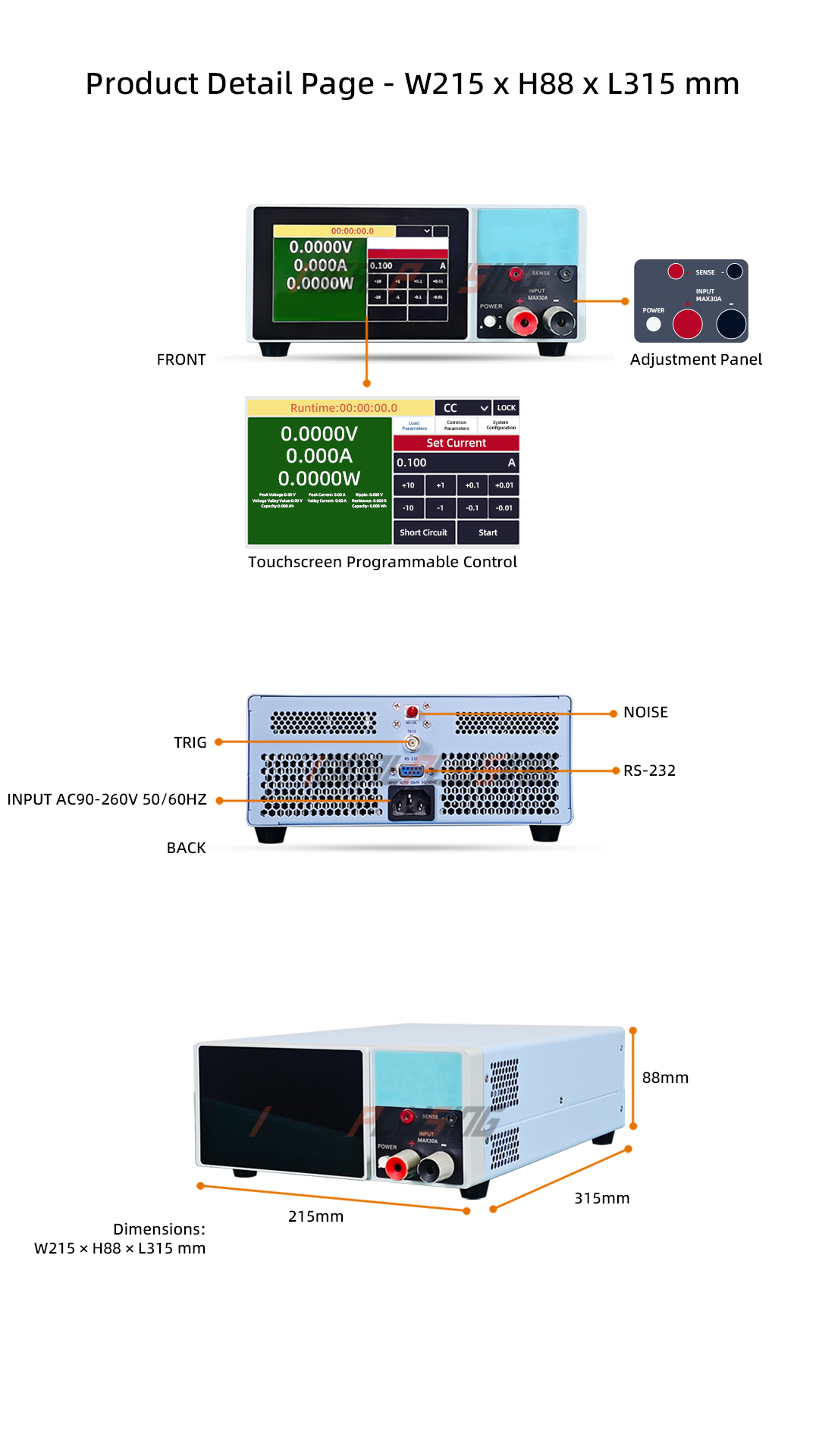

215-88-315 详情页.jpg
