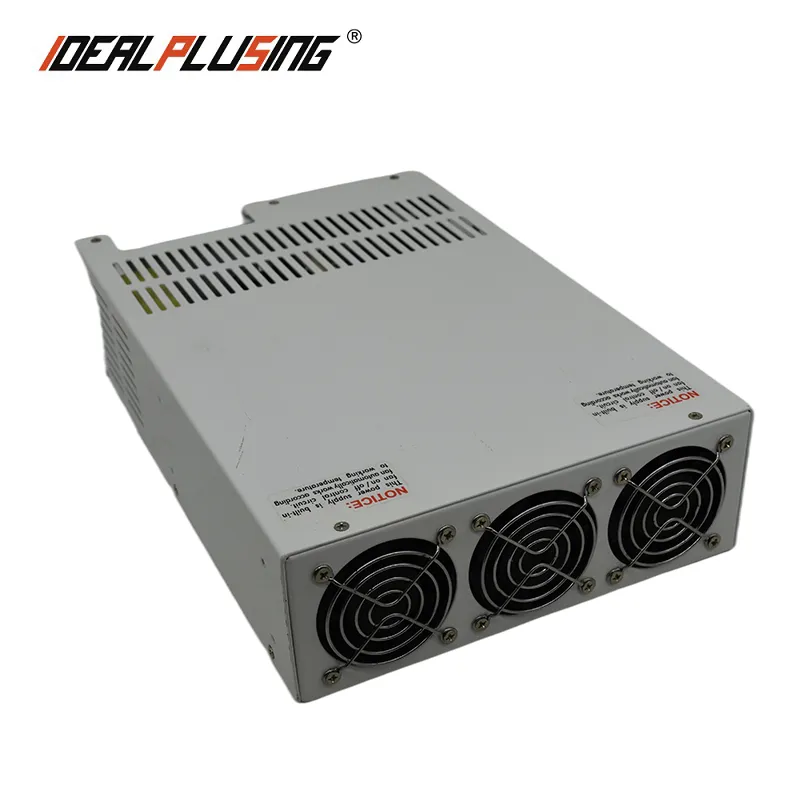

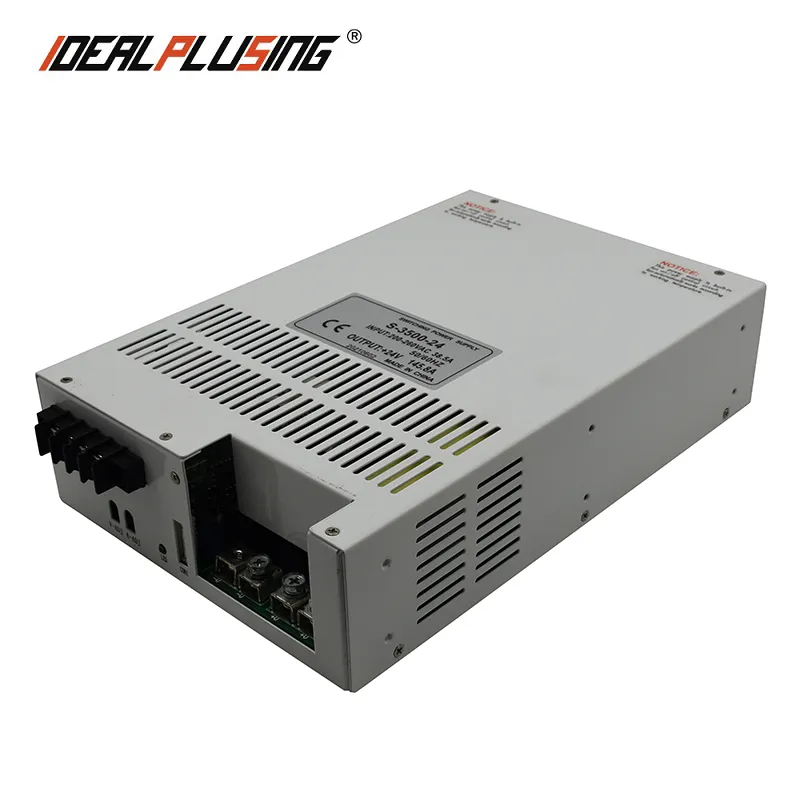

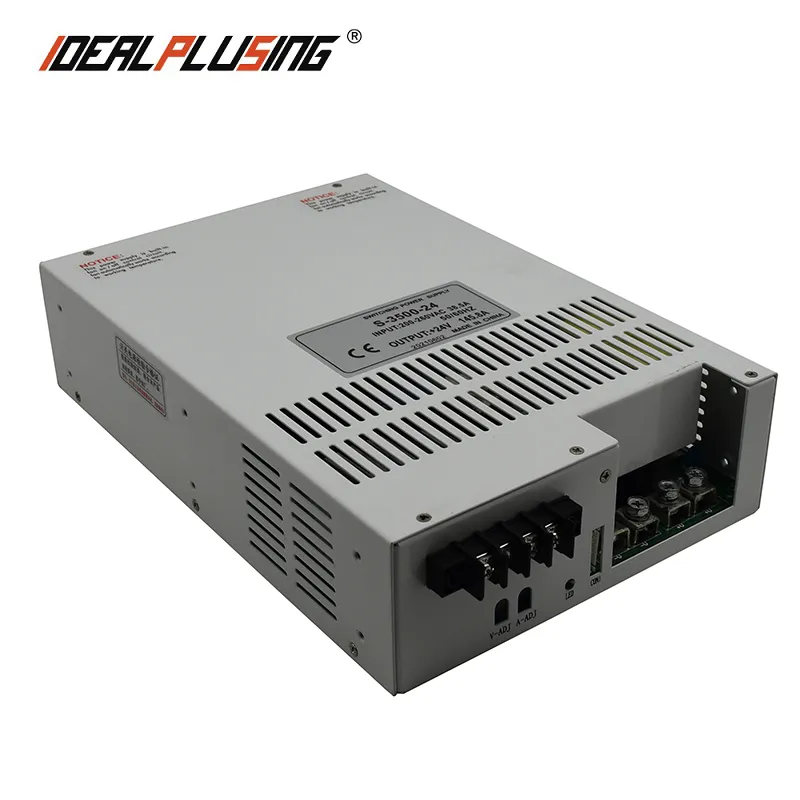

IPS-SPT10-350 3500W switching power supply DC high power 10V350A full power 12V 14V 20V 24V 35V 36V 48V 50V 70V 100V adjustable voltage
Model:IPS-SPT10-350 10V 350A 3500W switching power supply ① AC input: Single-phase 110/220V±15% 50/60hz ② DC output: 0~10VDC, 0~350A ③ Power: 3500W ④ Dimension: 315*208*73 (MM) ⑤ Net weight: 6KG, Gross weight: 7KG ⑥ Support customization Wechat ID:idealplus_power Wechat Number/Whatsapp ID:+86 159 8913 2799 Email:power@idealplusing.com Office telephone number:+86-20-89282095

Model

IPS-SPT10-350

IPS-SPT12-291

IPS-SPT14-250

IPS-SPT20-175

IPS-SPT24-145

IPS-SPT35-100

IPS-SPT100-35

Item

Technical indicators

Output

DC voltage

10VDC

12VDC

14VDC

20VDC

24VDC

35VDC

100VDC

Rated current

0~350A

0~291A

0~250A

0~175A

0-145A

0~100A

0~35A

Rated power

3500W

Ripple and noise

<150mV

<150mV

<240mV

<240mV

<240mV

<240mV

<240mV

Voltage accuracy

±1%

Output voltage regulation range

0~10VDC

0~12VDC

0~14VDC

0~20VDC

0~24VDC

0~35VDC

0~100VDC

Load adjustment rate

0.3%

Linear adjustment rate

0.5%

Input

Voltage range

180-264VAC 340-440VAC;254VDC~370VDC

Efficiency (typical)

>85%

Working current

220VAC;21A

Impulse current

60A 230VAC

Start, rise, hold time

2000ms、50ms、20ms;230VAC

Protect

Over temperature protection

105% ~ 135% type; Constant current output + V0 drop undervoltage point cut-off output reset; Power on again

Over temperature

RTH3;The fan operates normally, ≥ N90°C, and the output is closed

Environment

Operating temperature, humidity

-10°C~+50°C;20%-90RH

Storage temperature, humidity

-20°C~+85°C;10%~95RH

Safety regulations

Withstand voltage

Input-output: 1.5kVac input housing: 1.5kVac output housing: 05kvac for 1 minute

Leakage current

Input-output  1.5KVAC Time< 6mA

Leakage current

Input-output  220VAC Time<1.5mA

Isolation resistance

Input-output, input-housing, output-housing,500VDC/100MΩ

Other

Size

315*208*73(MM)

NW/GW

6KG/7KG
