As a core device for stable power supply, pure sine wave inverters generate heat during continuous operation due to power conversion. If heat dissipation is not timely, it will not only affect the stability of the output waveform but also shorten the service life of components. Different from common heat dissipation misunderstandings, this article will share unpopular and efficient heat dissipation ideas, combined with the working characteristics of pure sine wave inverters, to provide actionable methods. Among them, the heat dissipation design of the IDEALPLUSING pure sine wave inverter is also worthy of reference.
Identify Heat Sources First: Locate Core Heating Components of Pure Sine Wave Inverters
The heat of pure sine wave inverters mainly comes from power switching tubes, transformers, and filter capacitors, rather than uniform heating of the entire machine. Many users easily overlook the problem of "local high temperature" and blindly adding cooling fans is ineffective. It is recommended to first detect the temperature of key components with an infrared thermometer. Generally, when the temperature of the heat sink of the power switching tube exceeds 60℃, targeted treatment is required. This step is also the premise for optimizing the heat dissipation of pure sine wave inverters.
Unpopular Heat Dissipation Idea: Advanced Transformation of Natural Heat Dissipation
Most people prefer to install fans first, but noise and energy consumption issues are prominent. In fact, the natural heat dissipation of pure sine wave inverters can be upgraded through detailed transformations: use ceramic-based heat sinks instead of traditional aluminum heat sinks, which improve thermal conductivity by 30% without increasing volume; etch microchannels on the surface of heat sinks to accelerate heat dissipation using the principle of air convection; install the pure sine wave inverter on a well-ventilated vertical surface to avoid direct sunlight, while reserving a heat dissipation gap of more than 15cm. This method is suitable for daily use of low and medium-power pure sine wave inverters.
Active Heat Dissipation Optimization: Unpopular Low-Noise and Efficient Solutions
If active heat dissipation is necessary, abandon the popular large-diameter fans and switch to silent brushless DC fans, combined with a temperature control module to achieve "temperature-triggered heat dissipation" — the fan sleeps when the internal temperature of the pure sine wave inverter is below 50℃ and starts automatically when it exceeds 55℃, which is both energy-saving and noise-reducing. In addition, install a magnetic dust filter at the fan air inlet and clean the dust regularly to avoid dust accumulation affecting heat dissipation efficiency. This is also the key to extending the service life of pure sine wave inverters.
Special Scene Adaptation: Emergency Heat Dissipation Treatment for Pure Sine Wave Inverters

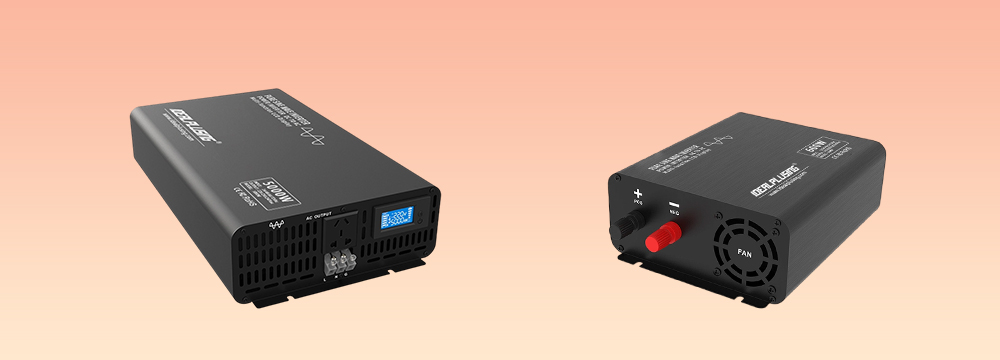

In special scenarios such as outdoor camping and vehicle-mounted power supply, pure sine wave inverters may face harsh heat dissipation environments. At this time, a combination of "passive heat dissipation + temporary assistance" can be adopted: wrap the inverter shell with thermal silica gel pads and attach them to metal brackets to enhance heat conduction; use a portable small fan to blow obliquely to avoid excessive local temperature difference caused by direct blowing. The IDEALPLUSING pure sine wave inverter has excellent heat dissipation stability in extreme environments, and its component layout design can reduce heat accumulation.
The core of heat dissipation for pure sine wave inverters lies in "precision temperature control" rather than blind cooling. Choosing unpopular heat dissipation schemes according to the characteristics of the equipment can not only avoid the drawbacks of popular methods but also improve heat dissipation efficiency. In daily use, regularly check the status of heat dissipation components and combine with scientific heat dissipation methods to ensure that the pure sine wave inverter continuously and stably outputs pure sine wave electrical energy.
